X-Ray Fluorescence Handheld Spectrometer QR-S1/S2

  • X-Ray Fluorescence Handheld Spectrometer QR-S1/S2
Place of Origin CHINA
Brand Name MORITA
Model Number QR-SI/S2
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Integration Time 2 Ms - 60 S Wavelength Repeatability +/- 0.1 Nm
Interface USB 2.0 Accuracy Of Analysis ≤0.3%
Highlight

X-Ray spectrometry machine

,

Fluorescence spectrometer machine

,

Handheld spectrometer machine
You can tick the products you need and communicate with us in the message board.
detection range S1 S1: Simultaneously analyze 31 elements between magnesium (Mg) and uranium (U) Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,Se,Nb,Zr,Mo,Pd,AgCd,Sn,Sb,Ta,Hf,Re,W,Au,Pb,Bi,Mg,AL,Si,P,S,Ru
detection range S2 S2: Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,Se,Zr,Nb,Mo,Rh,Pd,Ag,Cd,Sn,Sb,Hf,Ta,W,Re,Pb,Bi, Waiting for 25 elements
Activate the system Integrated micro high voltage power supply and X-ray tube, with a long service life and a maximum power of 4W
detector S1 S1: SDD silicon drift detector with a resolution of 125eV and fast detection speed
detector S2 S2: Si-PIN electric refrigeration detector with a resolution of 145eV and fast detection speed
Cooling system Peltier constant temperature cooling system ensures the accuracy of the instrument and extends its service life
power supply Rechargeable lithium batteries, each battery can work continuously for more than 8 hours and can also use AC 220V, 50/60HZ
detection time 2-60s
data transmission USB、 Memory card, wireless Bluetooth
Data Storage 64G memory,
security setting Password protection
operation temperature -10-50℃
relative humidity ≤85%
Weight 1.5kg (including battery)
Signal Processing Imported original miniature digital pulse multi-channel amplifier with high counting efficiency
data manipulation language Multi-language
operating system Special software
display High resolution TFT industrial grade color high-definition touch screen, with ergonomics, sturdy, dustproof, waterproof, and clear visibility under any lighting conditions
exterior design The integrated body design is sturdy, waterproof, dustproof, antifreeze, and vibration resistant, and can be used normally in harsh environments.
safe operation One click detection, software automatic timing lock, automatic stop testing function; Automatically turn off X-rays within 2 seconds when there is no sample in front of the testing window.
monitor 5-inch LCD touch screen, supporting automatic dimming function
Measurement mode Qualitative identification, quantitative analysis, displaying measured spectral lines
accuracy of analysis ≤0.3%
Dimensions L290*W 90*H 290mm
Leave a Message
detection range S1 S1: Simultaneously analyze 31 elements between magnesium (Mg) and uranium (U) Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,Se,Nb,Zr,Mo,Pd,AgCd,Sn,Sb,Ta,Hf,Re,W,Au,Pb,Bi,Mg,AL,Si,P,S,Ru
Product Description
X-ray Fluorescence Handheld Spectrometer QR-S1/S2
Product Overview

The QR-S1/S2 handheld spectrometer is professionally designed for reliable identification of metal materials and rapid alloy grade analysis. This portable instrument combines small size, lightweight design, and high accuracy with fast detection speeds and excellent cost-effectiveness.

Key Features
  • Compact, portable design for field use (1.5kg including battery)
  • No sample preparation required
  • High accuracy analysis (≤0.3%) with fast detection (2-60 seconds)
  • Rugged, waterproof, dustproof design for harsh environments
  • Integrated safety features including automatic X-ray shutoff
  • Long battery life (8+ hours continuous operation)
  • High-resolution touch screen with automatic dimming
Technical Specifications
Parameter Specification
Detection Range S1: 31 elements (Mg to U)
S2: 25 elements (Ti to Bi)
Activation System Integrated micro high voltage power supply and X-ray tube (4W max)
Detector S1: SDD silicon drift detector (125eV)
S2: Si-PIN electric refrigeration detector (145eV)
Cooling System Peltier constant temperature cooling
Power Supply Rechargeable lithium batteries or AC 220V, 50/60HZ
Data Transmission USB, Memory card, wireless Bluetooth
Operating Conditions -10°C to 50°C, ≤85% humidity
Dimensions 290 × 90 × 290 mm
Special Applications

The QR-S1/S2's compact size and high precision make it ideal for NDT and PMI applications, particularly for testing difficult-to-reach locations and welds. The instrument demonstrates exceptional analytical capability for low-content titanium and vanadium detection.

Additional Features
• 64GB internal memory for data storage
• Password protection for security
• Multi-language support
• Qualitative identification and quantitative analysis modes

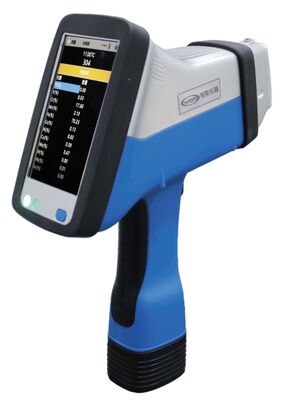

X-Ray Fluorescence Handheld Spectrometer QR-S1/S2 0
