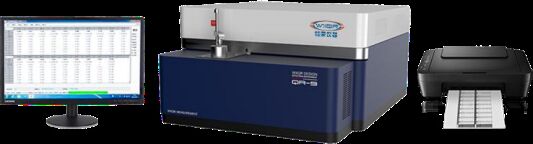

QR-9 CCD Spectrometer For Fast Data Readout With High Speed Data Readout Systems
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-9 |
| Document | 123.pdf |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating System | Windows10 | Dimensions | 86 X 66 X 36 Cm |
|---|---|---|---|
| Power Requirements | 100-240 VAC, 50/60 Hz | Wavelength Accuracy | +/- 0.01 Cm-1 |
| Sample Compartment | Single-beam | Data System | Thermo Scientific OMNIC Series Software |
| Wavenumber Accuracy | +/- 0.01 Cm-1 | ||
| Highlight | QR-9 ccd spectrometer,Fast Data Readout ccd spectrometer,Windows 10 ccd array spectrometer |
||
You can tick the products you need and communicate with us in the message board.
| NO. | Name | Unit | Q'ty | |
|---|---|---|---|---|
| 1 | Host | 1 | ||
| 2 | Analysis curve | 2 | ||
| 3 | High and low standard calibration samples | 2 | ||
| 4 | Computer | 1 | ||
| 5 | Printer | 1 | ||
| 6 | Vacuum pump | 1 | ||
| 7 | Vacuum inflation valve | 1 | ||
| 8 | Corrugated tube | 1 | ||
| 9 | Gas pipeline and joints | 2 | ||
| 10 | Oxygen pressure reducing valve and connector | 1 | ||
| 11 | Power line | 1 | ||
| 12 | Signal transmission line | 1 | ||
| 13 | Operating software | 1 | ||
| 14 | User's manual | 1 | ||
| 15 | Certificate of conformity | 1 | ||
| 16 | Complete packing list | 1 | ||
| 17 | List of Tools and Consumable Spare Parts | 1 | ||
| 18 | Guarantee | 1 | ||
| 19 | Installation acceptance delivery form | 2 | ||
Product Description
CCD Optical Emission Spectrometer (OES) QR-9
Product Overview
The QR-9 series full-spectrum direct-reading spectrometer is designed for precise elemental analysis in metal samples. Utilizing international standard design and manufacturing technology, it features advanced digital technology, vacuum optical chamber design, and high-speed data readout systems for exceptional performance, low detection limits, and long-term stability.
Applications
Ideal for quality monitoring, material grade identification, and research & development in metal manufacturing, processing, and smelting operations. The QR-9 spectrometer is a standard instrument for industrial metal analysis.
Key Features
- High Performance Optical System: Direct optical path design minimizes loss, with high-precision components for accurate measurement of C, P, S, N and other non-metallic elements.
- Integrated Vacuum Chamber: Compact design with faster vacuum pumping speed and longer vacuum maintenance.
- Vacuum Anti Backflow Technology: Multi-level isolation system prevents oil contamination in the vacuum chamber.
- Error Prevention System: Integrated technology eliminates light chamber pollution.
- Automatic Optical Path Calibration: Self-calibrating system ensures spectral line accuracy without manual intervention.
- Prefabricated Work Curve: Factory-calibrated with optimal testing conditions and extensive standard sample library for immediate use.
Technical Specifications
| Detecting Matrix | Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys |
|---|---|
| Detecting Time | Normally 25s |
| Optical Structure | Paschen-Runge mount |
| Wavelength Range | 130nm-800nm |
| Detector | High resolution CCD Multi detectors |
| Electrode | Tungsten Spray discharge electrode |
| Working Temperature | 10℃-35℃ |
| Working Humidity | 20%-80% |
| Excitation Table Aperture | 13mm |
| Light Cell Structure | Vacuum system |
| Argon Purity | 99.999%, Argon pressure >0.5Mpa |
| Argon Consumption | 3.5L/min in sparking mode, 0.4L/min in maintaining mode |
| Dimensions | 860mm(L)*660mm(W)*360mm(H) |
| Weight | About 80kg |
| Power | AC220V/50Hz (Customized) |
