Easy Operation And Data Management Intelligent Molding Materials Gas Evolution Tester

  • Easy Operation And Data Management Intelligent Molding Materials Gas Evolution Tester
  • Easy Operation And Data Management Intelligent Molding Materials Gas Evolution Tester
Place of Origin China
Brand Name MORITA
Model Number QR-CET2000
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy ±1% Power Supply AC 220V/110V 50Hz/60Hz
Measuring Range 0-1000ml Test Method Automatic
Rated Power 2KW Test Temperature 1100℃
Highlight

Easy Operation Gas Evolution Tester

,

220V Gas Evolution Tester

,

110V gas evolution tester
You can tick the products you need and communicate with us in the message board.
measuring range 0-200ml, accuracy: ±2%
temperature of pyrolysis furnace 600-1200℃, accuracy:±1℃
temperature of measurement system 0-120℃, accuracy:±1℃
temperature of working condition -5-45℃
humidity of working condition ≦85%
timing range 120min, can be set up arbitrarily
rated power 4KW
power source AC220V/50HZ
Leave a Message
measuring range 0-200ml, accuracy: ±2%
Product Description

Product Introduction

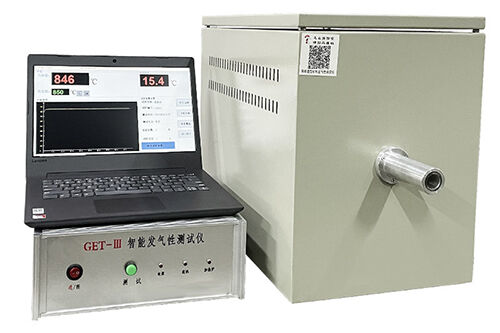

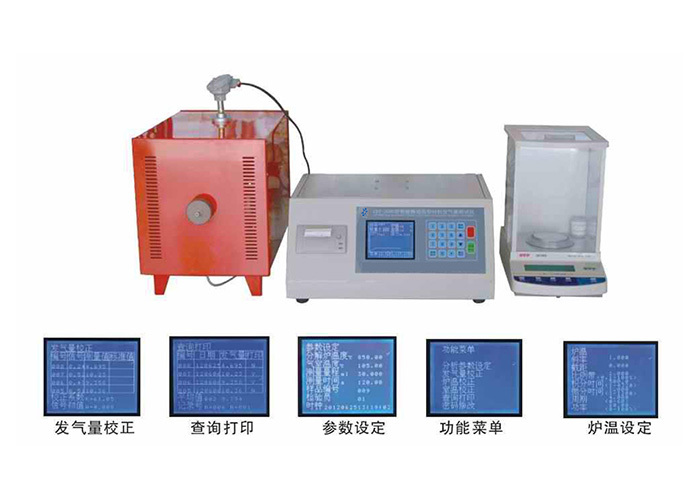

The Intelligent Molding Materials Gas Evolution Tester (QR-CET2000) is a precision instrument designed to measure the gas generation and gas generation rate of molding sands, core sands, coatings, and other foundry materials. It also provides accurate measurement of the effective coal powder content in molding sand, making it an essential tool for foundries, research institutions, and quality inspection labs.

With its combination of advanced electronic, computer, and sensor technologies, the QR-CET2000 delivers real-time monitoring, precise measurement, and reliable data storage. It is widely applied in casting, machinery manufacturing, material research, and teaching laboratories to improve product quality and optimize molding processes.

Key Features

  1. Advanced Technology Integration

    • Combines modern electronics, computer control, and high-sensitivity sensors for maximum accuracy.

  2. Real-Time Curve Display

    • Continuously shows gas evolution curves and gas generation rate curves.

    • Displays maximum gas generation values in real time.

  3. Data Management & Storage

    • Unlimited historical data storage.

    • Supports data queries by time and batch, enabling easy traceability.

  4. High Accuracy & Reliability

    • Furnace temperature control up to 1100℃ ±1℃.

    • Measurement system accuracy of ±1%.

  5. Flexible & User-Friendly

    • Adjustable timing range up to 120 minutes.

    • Easy operation with intelligent monitoring and automated processing.

Technical Specifications

Item Specification
Measuring range 0–100ml, Accuracy: ±1%
Pyrolysis furnace temperature 1100℃, Accuracy: ±1℃
Measurement system temperature 0–120℃, Accuracy: ±1℃
Working temperature -5℃ to 45℃
Working humidity ≤85%
Timing range 0–120 min, arbitrarily set
Rated power 2KW
Power supply AC220V / 50Hz
Maximum working current 30A

Applications

The QR-CET2000 Gas Evolution Tester is widely used in:

  • Foundry Industry – to evaluate gas evolution from molding materials and prevent casting defects.

  • Machinery & Casting Enterprises – for material quality inspection and process optimization.

  • Quality Inspection Agencies – for precise testing and verification of molding material properties.

  • Scientific Research & Universities – as a teaching and research tool for material behavior studies.

✅ Why Choose the QR-CET2000?

  • Real-time monitoring of gas evolution and gas generation rate.

  • High-temperature furnace with precise control up to 1100℃.

  • Unlimited data storage with easy query and batch tracking.

  • Reliable performance for both industrial and laboratory environments.

  • Essential for ensuring casting quality and defect prevention.
