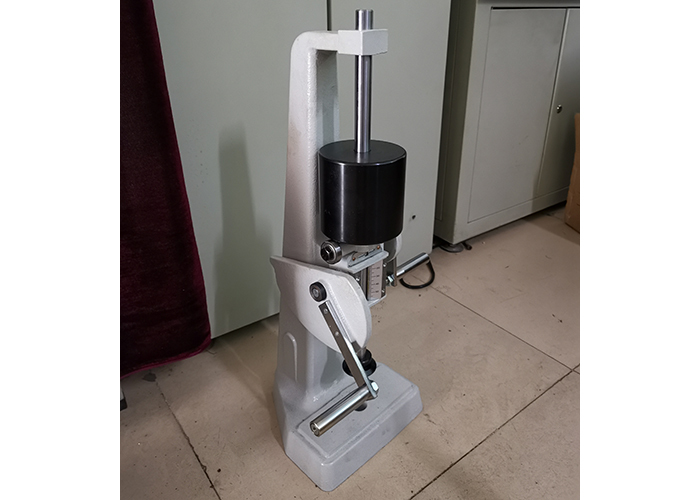

Hammering Type Sample Preparation Machine Sand Rammer

  • Hammering Type Sample Preparation Machine Sand Rammer
  • Hammering Type Sample Preparation Machine Sand Rammer
Place of Origin China
Brand Name MORITA
Model Number QR-SYC
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Sand Casting Warranty 1 Year
Application Rapid Prototyping
Highlight

Rapid Prototyping Sand Rammer

,

Casting Sand Rammer

,

Casting sand rammer machine
You can tick the products you need and communicate with us in the message board.
hammer weight 6670±10g
height of hammer dropping 50±0.5mm
impacting time of the hammer 3 times
impact strengh 1kg.m(6670*0.05*3)
sample spec. compression and shearing: cylindrical, ɸ50±0.5mm
Leave a Message
hammer weight 6670±10g
Product Description

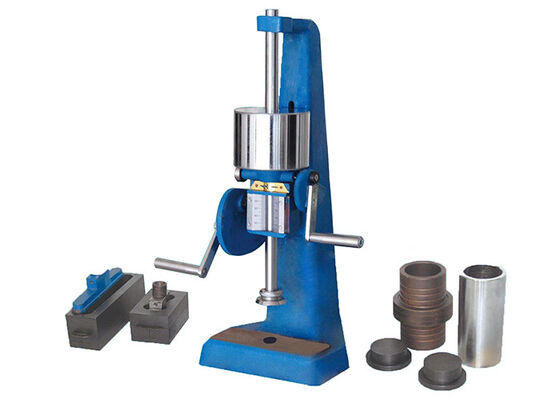

Hammering Type Sample Preparation Machine (QR-SYC)

Product Overview

The QR-SYC Hammering Type Sample Preparation Machine is designed to produce standard samples for strength testing and air permeability testing of molding sand. It is primarily used to determine the compaction and uniformity of molding sand, ensuring reliable and accurate results in casting quality evaluation.

The machine consists of a frame, cam, heavy hammer, cylindrical impact head, scale, and other precision components, allowing controlled and repeatable sample preparation.

Main Specifications

Parameter Specification
Hammer weight 6670 ± 10 g
Hammer dropping height 50 ± 0.5 mm
Impacting times 3 times
Impact strength 1 kg·m (6670 × 0.05 × 3)
Sample specification (compression & shearing) Cylindrical, Φ50 ± 0.5 mm
Sample specification (tensile) Waist shape, middle cross-section: 22.3 × 22.3 mm
Sample specification (bending) Cuboid, 22.3 × 22.3 × 150 mm

Instrument Features

  1. Matching product for tensile testers and air permeability testers.

  2. Robust construction with frame, cam, heavy hammer, cylindrical impact head, and scale ruler.

  3. Repeatable hammering mechanism ensures consistent compaction for all sample types.

  4. Suitable for producing compression, tensile, and bending test samples.

Main Applications

The QR-SYC Hammering Type Sample Preparation Machine is widely used in:

  • Foundry and casting industry – preparing standardized molding sand samples for testing.

  • Machinery manufacturing – evaluating sand compaction properties.

  • Scientific research & universities – for teaching and experimental studies in material science.

  • Quality inspection laboratories – ensuring uniform sample preparation for reliable testing results.

✅ Why Choose QR-SYC?

  • Produces accurate, standardized samples for multiple testing methods.

  • Robust design with precise hammering control.

  • Compatible with strength testers and air permeability testers.

  • Ensures consistent compaction for reliable and repeatable test results.

Hammering Type Sample Preparation Machine Sand Rammer 0
