Intelligent Temperature Control Coated Sand Prototype Machine

  • Intelligent Temperature Control Coated Sand Prototype Machine
  • Intelligent Temperature Control Coated Sand Prototype Machine
Place of Origin China
Brand Name MORITA
Model Number QR-SAR-II
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Sand Casting Operation Mode Automatic
Warranty 1 Year Application Rapid Prototyping
Voltage 220V Power Source Electric
Highlight

Intelligent sand rammer

,

Temperature Control Coated sand rammer

,

Rapid Prototyping sand rammer machine
You can tick the products you need and communicate with us in the message board.
sample size tensile: 22.36*11.18mm, bending: 22.36*11.18*60mm
temperature range 0-400℃, ±1%FS
timing range 1-999S
power source AC220V/50HZ,1500W
Leave a Message
sample size tensile: 22.36*11.18mm, bending: 22.36*11.18*60mm
Product Description

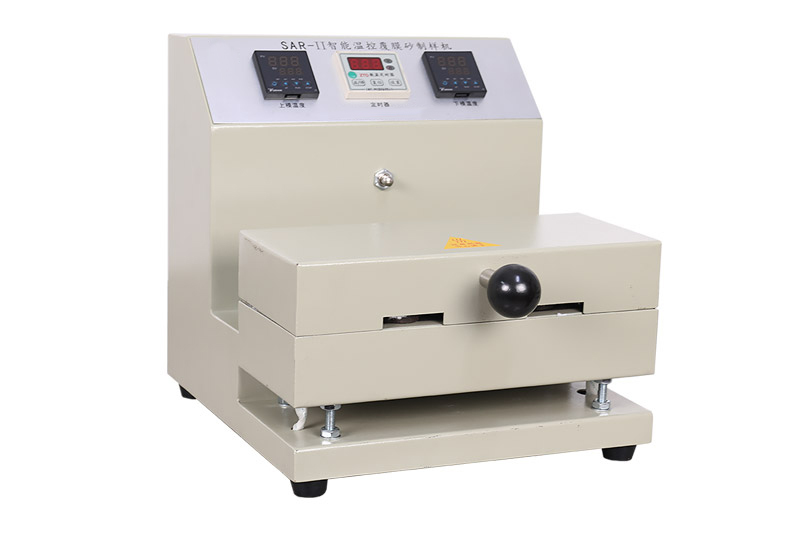

Intelligent Temperature Control Coated Sand Prototype Machine (QR-SAR-II)

Product Overview

The QR-SAR-II Intelligent Temperature Control Coated Sand Prototype Machine is a precision instrument designed to prepare laminated sand bending and tensile standard specimens. It is widely applied in production, scientific research, teaching, and quality inspection for evaluating the mechanical performance of coated sand materials.

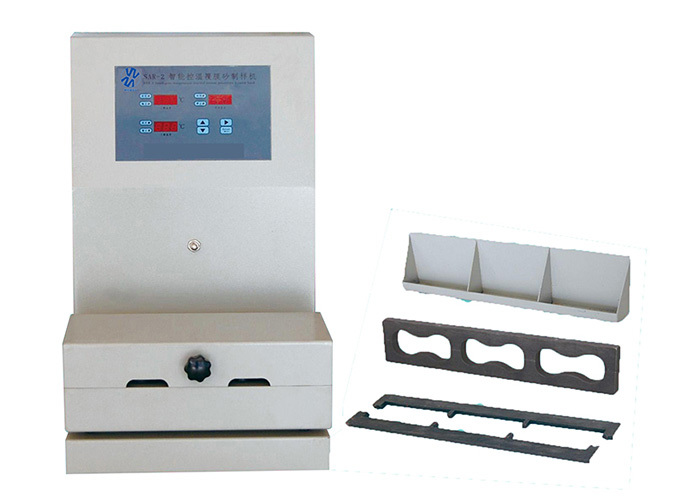

The instrument is equipped with a heater, sample core box, bracket, and digital temperature controller, with independent control for the upper and lower heating molds. This ensures uniform heating and provides stable and consistent specimen strength values across batches. With digital timing, PID temperature control, and alarm functions, the QR-SAR-II is simple, reliable, and highly efficient.

Main Specifications

Parameter Specification
Maximum temperature 300 ℃
Temperature control accuracy ±1%
Sample size (bending test) 22.36 × 11.18 × 70 mm
Sample size (tensile test) 22.36 × 11.18 × 66 mm
Timing range 0 – 999 seconds
Power supply AC220V ±10%, 50Hz, 1500W

Instrument Features

  1. Microcomputer control of specimen temperature and time.

  2. Digital display for intuitive operation and monitoring.

  3. Provides constant temperature output for stable sample preparation.

  4. Independent control of upper and lower heating molds, ensuring uniform heating.

  5. Digital PID control system for precise temperature regulation and improved accuracy.

  6. Timing and alarm functions, enhancing ease of use and safety.

Main Applications

The QR-SAR-II is widely used in:

  • Foundry and casting industries – preparing coated sand specimens for performance testing.

  • Machinery manufacturing – ensuring reliable mold material evaluation.

  • Scientific research institutions – studying coated sand properties under controlled conditions.

  • University laboratories – teaching and practical training in molding sand technology.

  • Quality inspection departments – producing standardized samples for accurate testing.

✅ Why Choose QR-SAR-II?

  • Produces highly uniform and reliable coated sand specimens.

  • Ensures accurate and consistent heating with separate upper and lower mold control.

  • Easy to operate and maintain with digital interface and alarms.

  • Suitable for industrial, educational, and research applications.
