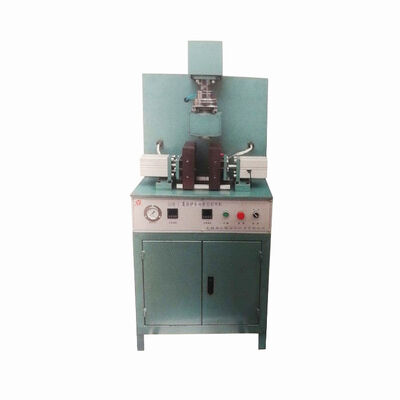

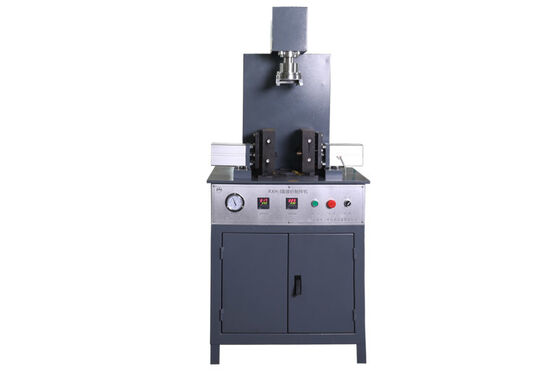

Industrial Coated Sand Automatic Core Shooting Prototype Machine

  • Industrial Coated Sand Automatic Core Shooting Prototype Machine
  • Industrial Coated Sand Automatic Core Shooting Prototype Machine
Place of Origin CHINA
Brand Name MORITA
Model Number QR-RXH
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Prototype Machine Connectivity USB
Application Rapid Prototyping Product_Name Sand Prototype Machine
Warranty 1 Year Product_Type Industrial Machinery
Power_Supply 220V/50Hz
Highlight

Industrial prototype machine

,

220V prototype machine

,

sand prototype machine
You can tick the products you need and communicate with us in the message board.
Sample size According to GB/T 2684-2009, JB/T 8583-2008, or user requirements
Sample preparation temperature Room temperature – 400°C (factory set: 232°C)
Temperature control accuracy ±1% FS
Timing range 1–999 seconds
Working voltage & power AC 220V ±10%, 50Hz, 1.6KW
Clamping cylinder pressure 120 kgf
Clamping cylinder stroke 75 mm
Fixed mold height 200 mm
Mold dimensions (small side) 40 × 40 mm
Mold dimensions (large side) 90 × 280 mm
Mold depth 100 mm
Sandblasting range (width × depth) 110 × 160 mm
Standard sandblasting area Φ 81 mm
Core firing pressure 0.1 – 0.6 MPa
Gas source connector 1/2″ (constant pressure 0.6 MPa)
Leave a Message
Sample size According to GB/T 2684-2009, JB/T 8583-2008, or user requirements
Product Description
Coated Sand Automatic Core Shooting Prototype Machine Quickly And Automatically Produce Tensile And Bending Specimens Of Coated Sand Fully Automated Sandblasting Ensures Uniform Density QR-RXH
The automatic core shooting machine for coated sand is used to quickly and automatically produce tensile and bending specimens of coated sand. Small core sand can also be produced after replacing the mold. It can be widely applied in production, scientific research, and teaching.
This sand prototype machine automatically controls the sample temperature and time, and the fully automated sandblasting ensures uniform density of the produced samples to ensure the accuracy of measurement results.
Main Technical Specifications
  • Sample size: According to national industry standards (GB/T 2684-2009, JB-T8583-2008) or made to user requirements
  • Sample preparation temperature: Room temperature - 400°C (Factory set at 232°C)
  • Temperature control accuracy: ±1% FS
  • Timing range: 1-999 seconds
  • Working voltage: AC 220V ±10%, 50Hz, power: 1.6KW
  • Clamping cylinder clamping pressure: 120 kgf
  • Large stroke of clamping cylinder: 75mm
  • Fixed height dimension of mold: 200mm
  • Small size on one side of the mold: 40/40mm
  • Large size on one side of the mold: 90/280mm
  • Mold depth: 100mm
  • Large sand blasting range (width/depth): 110x160mm
  • Standard sand blasting area, diameter: 81mm
  • Core firing pressure: 0.1-0.6 MPa
  • Gas source connector under constant pressure of 0.6 MPa: 1/2"
Standard Sample Specifications
Sample Name Specimen Shape Sample Size (mm)
Tension test specimen Waist shape Medium section 22.36 × 11.18 (or 22.36 × 22.36)
Bending test specimen Rectangular columnar 22.36 × 11.18 × 70 (or 22.36 × 22.36 × 150)
