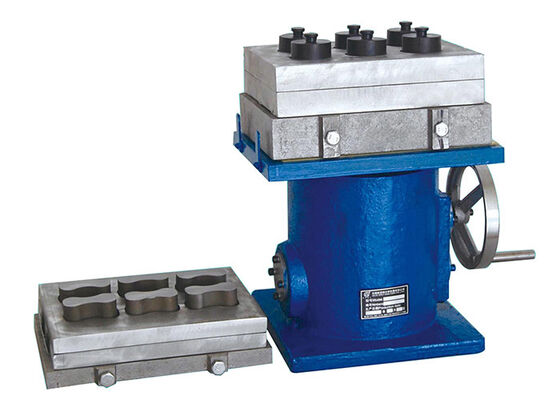

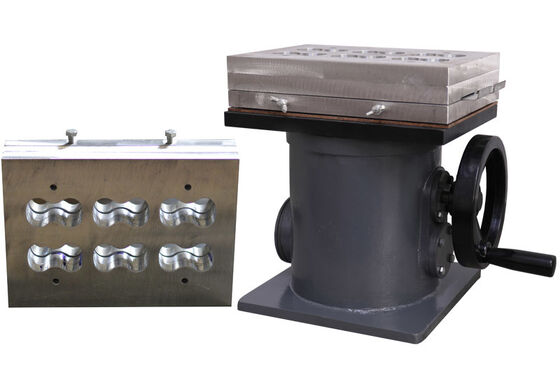

Sand Prototype Machine For Accurate Resin Sand Testing In The Foundry Industry

  • Sand Prototype Machine For Accurate Resin Sand Testing In The Foundry Industry
  • Sand Prototype Machine For Accurate Resin Sand Testing In The Foundry Industry
Place of Origin CHINA
Brand Name MORITA
Model Number QR-SAH
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Rapid Prototyping Application Industrial
Weight 25 Kg Frequency 50Hz
Material Metal Power Source Electric
Voltage 220V
Highlight

Metal sand prototype machine

,

Industrial sand prototype machine

,

220V sand rammer
You can tick the products you need and communicate with us in the message board.
weight of vibration part 25kg
height of vibration shocking 35mm
Number of vibration shocking 3 times
application range compression sample, tensile sample, thermal stability sample
weight of additional block 1 compression sample: 1250g
weight of additional block 2 tensile sample: 800g
weight of additional block 3 thermal stability sample: 120g
Leave a Message
weight of vibration part 25kg
Product Description
QR-SAH The Ideal Sand Prototype Machine For Accurate Resin Sand Testing In The Foundry Industry
The QR-SAH resin sand sampling machine is designed for creating standard resin sand samples to test gas permeability, compression resistance, shear resistance, tensile strength, and thermal stability.
Working Principle
The compaction process combines vibration energy for the lower sample portion with pressure from heavy blocks for the upper portion. The formula for compaction is:
Vibration energy = Ghnn
Compaction energy = Qhnn
Proper weight selection ensures uniform compactness throughout the sample, where:
G = sample sand weight
Q = weight of heavy blocks
H = shock height
N = number of hits
n = coefficient of energy loss due to shock
Main Specifications
Weight of vibration part: 25kg
Height of vibration shock: 35mm
Number of vibration shocks: 3 times
Application range: compression sample, tensile sample, thermal stability sample
Weight of additional block:
Compression sample: 1250g
Tensile sample: 800g
Thermal stability sample: 120g
Aluminum alloy eight character (tensile) mold: 22.36*22.36
Aluminum alloy (compressive and shear resistant) mold: ∮50*h50
Aluminum alloy thermal stability test sample mold: ∮30*h50 (or ∮11*h20)
Instrument Features
  • Consists of rack, bottom plate, sample box, pre-filled box, broaches, guide plate, weight block, handwheel, and cam
  • Capable of producing multiple standard samples simultaneously
Main Applications
Widely used in foundries, machinery manufacturing, casting operations, quality inspection, scientific research, and university laboratories.
