Lab Grade Analysis In Field Conditions With Portable Spectrometer Lightweight And Compact Design

  • Lab Grade Analysis In Field Conditions With Portable Spectrometer Lightweight And Compact Design
Place of Origin CHINA
Brand Name MORITA
Model Number QR-8
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 25 Kg Operating Temperature 10-35°C
Power Requirements 100-240 V, 50/60 Hz Dimensions 42 X 22 X 38 Cm
Discharge Frequency 100-1000 Hz
Highlight

Lab Grade spectrometry machine

,

Lightweight spectrometer machine

,

Lightweight spectrometer machine
You can tick the products you need and communicate with us in the message board.
Detecting the substrate Iron based, copper based, aluminum based, nickel based, cobalt based, magnesium based, titanium based, zinc based, lead based, etc
detection time Depending on the type of sample, it usually takes around 25 seconds
optical system Pascal Runge Roland circular full spectrum optical system
wavelength range 140-680nm
detector High resolution multi CMOS image sensor
electrode Tungsten jet electrode
analytical gap Sample stage analysis gap: 3.5mm
operation temperature (10-35)℃
storage temperature (0-45)℃
Working humidity 20%-80%
Purity requirements for argon gas 100.00%
Argon inlet pressure 0.5MPa
Argon gas flow site Excitation flow rate of approximately 3.5L/min
light source New adjustable digital light source, high-energy pre combustion technology (HEPS)
discharge frequency 100-1000 Hz
Discharge Current Maximum 380A
Excitation table aperture 13mm
vacuum system not have
Working power supply 220V AC/50/60Hz protective grounded single-phase power supply
Instrument dimensions Host 420 × 220 × 380mm
Instrument weight 25kg
Leave a Message
Detecting the substrate Iron based, copper based, aluminum based, nickel based, cobalt based, magnesium based, titanium based, zinc based, lead based, etc
Product Description

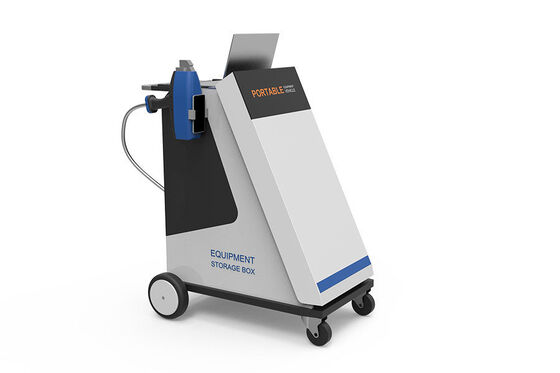

Mobile Portable Spectrometer QR-8
The QR-8 portable spectrometer features a lightweight, compact design for easy transportation and on-site material testing. Its innovative optical system and robust construction deliver laboratory-grade analysis in field conditions.
Key Features
  • Advanced Optical System: Integrated CMOS detector technology captures complete spectral lines with a portable yet durable mechanical structure
  • Intelligent Calibration: Automatically compensates for spectral drift caused by environmental temperature and pressure changes
  • High-Performance Fiber: Special fiber technology maintains stability under demanding conditions where conventional quartz fibers degrade
  • Field-Ready Design: Compact form factor with carrying case enables analysis anywhere without space limitations
Technical Specifications
Detection Substrate Iron, copper, aluminum, nickel, cobalt, magnesium, titanium, zinc, lead based alloys
Detection Time Approximately 25 seconds (varies by sample type)
Optical System Pascal Runge Roland circular full spectrum optical system
Wavelength Range 140-680nm
Detector High resolution multi CMOS image sensor
Electrode Tungsten jet electrode
Analytical Gap 3.5mm sample stage analysis gap
Operating Conditions Temperature: 10-35°C | Humidity: 20-80%
Argon Requirements 100.00% purity | 0.5MPa inlet pressure | ~3.5L/min excitation flow
Power System 220V AC/50-60Hz grounded single-phase
Dimensions 420 × 220 × 380mm (host)
Weight 25kg
Advanced Technology

The QR-8 incorporates a new adjustable digital light source with high-energy pre-combustion technology (HEPS), supporting discharge frequencies of 100-1000 Hz and currents up to 380A. The 13mm excitation table aperture accommodates diverse sample types while maintaining precision.
