Microcomputer Controlled Sand Washing Machine With Easy Operation And Intuitive Interface

  • Microcomputer Controlled Sand Washing Machine With Easy Operation And Intuitive Interface
Place of Origin China
Brand Name MORITA
Model Number QR-SXX
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Power Supply 220V/50Hz
Application Foundry Industry Water Presure >0.1 MPa
Standing Time 10min*2times; 5min*n Times Mixing Motor Speed 1300 RPM
Highlight

Microcomputer Controlled Sand Washing Machine

,

Intuitive Interface Sand Washing Machine

,

Easy Operation washing sand
You can tick the products you need and communicate with us in the message board.
water presure >0.1 MPa
standing time 10min*2times; 5min*n times
time between 2 programs 0.5-1min
programe control automatic washing and then siphoning
height from the siphon mouth to the water surface 100mm
distance from the siphon mouth to the bottom of the cup 35mm
Leave a Message
water presure >0.1 MPa
Product Description

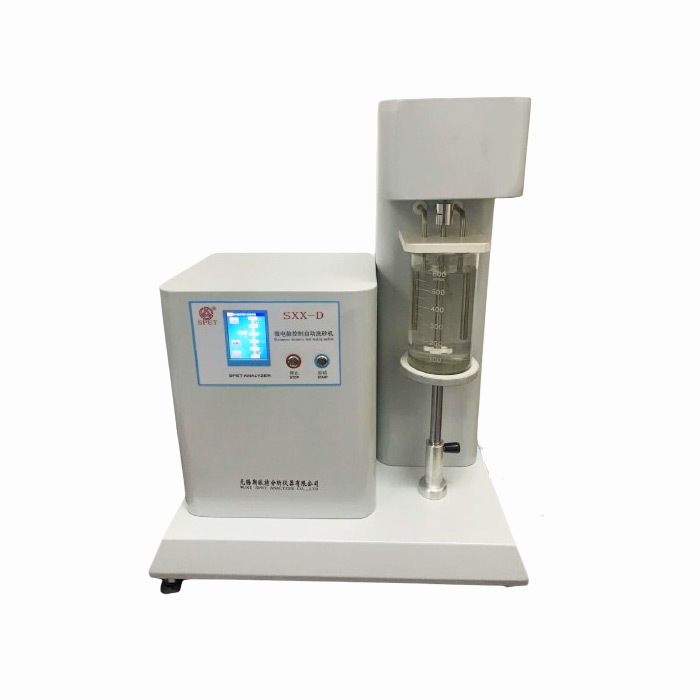

QR-SXX Microcomputer Controlled Sand Washing Machine With Easy Operation And Intuitive Interface

Product Overview

The QR-SXX Microcomputer Controlled Automatic Sand Washer is a precision instrument used to determine the percentage of mud content in raw sand and sand mixtures. It integrates automatic agitation, vortex washing, water supply, and flushing to ensure fast, accurate, and reproducible results.

Equipped with a color LCD touch screen, the QR-SXX dynamically displays the entire washing process, allowing easy monitoring and control. The instrument can adjust washing programs based on manual desilting procedures or specific sample conditions, providing flexible and stable testing.

Main Features

  1. Microcomputer fully automatic control – manages agitation, vortex washing, water addition, and flushing.

  2. Automatic micro water pump – supplies and drains water efficiently (optional).

  3. Color LCD touch screen – dynamically displays the entire sand washing process.

  4. Adjustable washing programs – controls time, washing frequency, and vortex/stirring function.

  5. Enhanced vortex washing and stirring – shortens sand washing time, ensures uniform cleaning, and stabilizes test results.

  6. Easy operation – intuitive interface and automated processes minimize manual intervention.

Main Technical Specifications

Parameter Specification
Minimum inlet water pressure >0.1 MPa
Rest time (standard program) 10 min ± 10 s (2 times), 5 min ± 5 s (n times)
Intermediate rest time 0.5–1 min
Program sequence Automatic flushing → agitation vortex → static → siphon (micro water pump optional)
Siphon port height from water surface 100 mm
Distance from siphon port to cup bottom 35 mm
Mixing motor speed 1300 RPM

Main Applications

The QR-SXX is widely used in:

  • Foundry and casting industry – determining mud content in molding sand and mixtures.

  • Machinery manufacturing – evaluating sand quality for molds and cores.

  • Scientific research & universities – for experimental studies and laboratory training.

  • Quality inspection laboratories – ensuring consistent sand preparation and reliable test results.

✅ Why Choose QR-SXX?

  • Fully automated microcomputer control for consistent and accurate results.

  • Shortens sand washing time with vortex and stirring functions.

  • Flexible program control for different sand types and conditions.

  • Easy to operate with LCD display and automated processes, reducing labor and errors.

Microcomputer Controlled Sand Washing Machine With Easy Operation And Intuitive Interface 0
