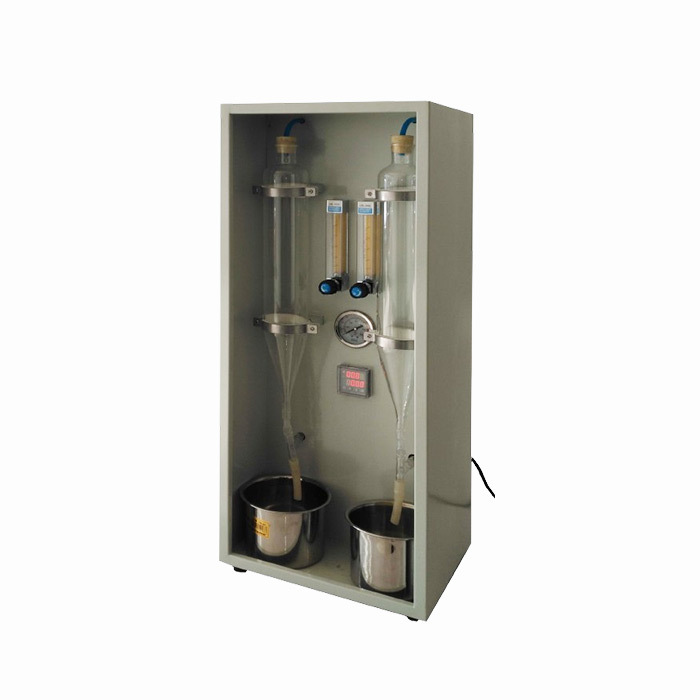

Sand Washing Machine For Foundries QR-SXL Automatic Continuous Mud Content Analyzer

  • Sand Washing Machine For Foundries QR-SXL Automatic Continuous Mud Content Analyzer
Place of Origin China
Brand Name MORITA
Model Number QR-SXL
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Power Supply 220V/50Hz
Application Foundry Industry Motor Power 20W
The Water Level Rise Speed Of The Sand Washing Bottle 15-30mm/min (adjustable)
Highlight

20W sand washer plant

,

Foundries sand washer plant

,

30mm/min sand washing equipment
You can tick the products you need and communicate with us in the message board.
The inlet pressure of tap water ≥ 0.2MPa
The outlet pressure of the pressure reducing valve 0.2~0.25MPa
The water level rise speed of the sand washing bottle 15-30mm/min (adjustable at will)
Tap water flow meter 0.16-1.6 liters/minute ± 2.5%
Water pressure gauge 0-0.6MPa ± 1.5%
The timer timing error 60 minutes ± 5 seconds
Power supply AC220V/50HZ/20W
Leave a Message
The inlet pressure of tap water ≥ 0.2MPa
Product Description

High-Efficiency Sand Washing Machine For Foundries QR-SXL Automatic Continuous Mud Content Analyzer

Product Overview

The QR-SXL Automatic Continuous Mud Content Analyzer is a high-efficiency instrument designed to determine the mud content in raw and reclaimed sand used in foundries. By automating sand washing, drying, weighing, and mud content calculation, it significantly reduces testing time while improving accuracy and consistency.

Unlike traditional siphon washing methods, which can take 3–4 hours, the continuous flushing method employed by the QR-SXL completes the process in 1–2 hours, making it highly suitable for modern foundries and laboratories.

Monitoring mud content is critical:

  • Wet molding sand with too high mud content (>16%) reduces permeability, increases brittleness, causes casting defects, and complicates mold removal.

  • Low mud content increases permeability and may reduce surface quality.

  • Resin sand requires especially low mud content (<0.2%) to maintain bond strength, minimize binder consumption, and reduce gas generation during casting.

Working Principle

The QR-SXL operates according to GB2684-2009-T standards, separating sand and mud based on particle size:

  • Particles >0.020 mm are considered sand.

  • Particles <0.020 mm are considered mud.

The continuous flushing principle:

  1. Tap water enters the bottom of the sand washing bottle through a pressure-reducing valve.

  2. Controlled water flow lifts the sand, allowing mud particles (<0.020 mm) to remain suspended and be discharged continuously.

  3. Sand particles (>0.020 mm) settle and are retained, while the water above becomes clear, signaling completion of mud removal.

This method provides stable numerical results, short testing time, and reduced labor.

Main Technical Parameters

Parameter Specification
Minimum inlet water pressure 0.2 MPa
Outlet pressure of pressure-reducing valve 0.2–0.25 MPa
Water level rise speed in sand washing bottle 15–30 mm/min (adjustable)
Tap water flow meter 0.16–1.6 L/min ± 2.5%
Water pressure gauge 0–0.6 MPa ± 1.5%
Timer accuracy 60 min ± 5 s
Power supply AC 220V / 50 Hz / 20W

Main Applications

The QR-SXL is widely used in:

  • Foundry and casting industry – for mud content analysis in raw and reclaimed sand.

  • Scientific research & universities – for experimental studies on sand properties.

  • Quality inspection laboratories – ensuring consistent sand performance for high-quality casting.

  • Resin and bonded sand production – maintaining low mud content for optimal binder performance.

✅ Why Choose QR-SXL?

  • Continuous automatic flushing for fast, efficient, and accurate mud content measurement.

  • Short testing time compared to traditional siphon methods.

  • Stable and reliable numerical results for consistent quality control.

  • Simple operation and low labor intensity, ideal for modern laboratory and
