Precision Green Sand Surface Hardness Tester High Accuracy

  • Precision Green Sand Surface Hardness Tester High Accuracy
Place of Origin CHINA
Brand Name MORITA
Model Number QR-SYS
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Precision surface hardness tester

,

High Accuracy surface hardness tester

,

surface testing machine High Accuracy
You can tick the products you need and communicate with us in the message board.
Parameter name and type B type C type
Compression stroke 2.5mm 2.5mm
Maximum load 980g 1500g
Pre compression load 50g 180g
Spherical indenter Size R12.70mm R1.2mm
Leave a Message
Parameter name and type B type C type
Product Description

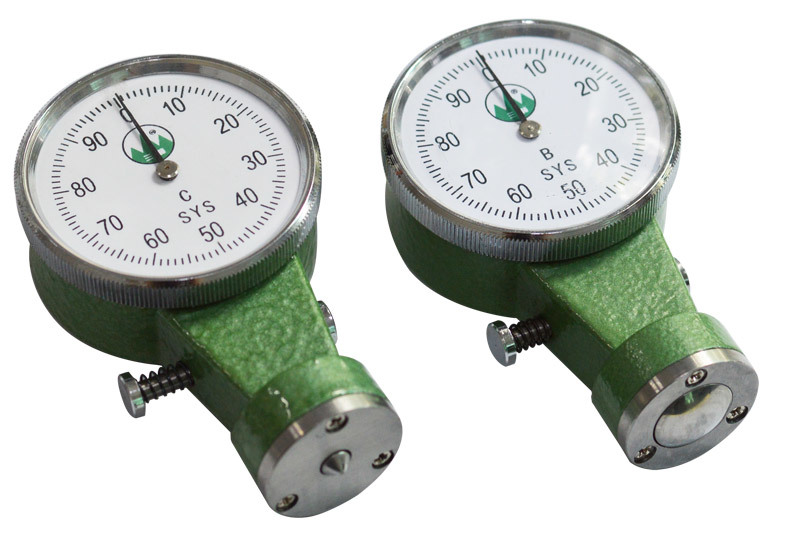

Green Sand Surface Hardness Tester
The B and C models of sand mold surface hardness testers are precision instruments designed to measure the surface hardness of green mold sand and cores, providing essential technical parameters for formulating optimal molding processes.
Key Features
  • High accuracy: ±5% tolerance
  • Precise pointer return: ±1 degree tolerance
Technical Specifications
Parameter B Type C Type
Compression stroke 2.5mm 2.5mm
Maximum load 980g 1500g
Pre compression load 50g 180g
Spherical indenter size R12.70mm R1.2mm

Precision Green Sand Surface Hardness Tester High Accuracy 0
