Resin Coating Sand Melting Point Tester Intelligent Temperature Control

Resin Coating Sand Melting Point Tester Intelligent Temperature Control For Consistent Performance QR-RSM

The Resin Coating Sand Melting Point Tester (RSM) is a high-precision laboratory instrument designed to measure the melting point of various types of resin-coated sand. Resin-coated sand, also known as shell sand, plays a critical role in the production of precision castings, molds, and cores, where accurate control of melting point and thermal behavior ensures consistent casting performance. The RSM tester provides reliable and repeatable measurements by simulating heating conditions, making it an indispensable tool for universities, research institutions, quality inspection centers, and industrial laboratories.

By combining intelligent temperature control, a digital display, a stable heat conduction beam, and a portable temperature sensor, this tester delivers precise data with a measuring accuracy of ±1.5%, ensuring the integrity of sand quality analysis.

1. Main Specifications

• High measuring temperature: 150 ± 0.1 ℃

• Measuring precision: ±1.5%

• Heat conduction beam size: 30 × 30 × 430 mm

• Timer setup: Discretionary, user-adjustable

• Rated power: ≤0.3 kW (energy-efficient)

• Power source: AC 220V/50Hz (customizable for international use)

These specifications provide users with a compact, reliable, and efficient testing system for day-to-day laboratory and quality inspection applications.

2. Instrument Features

1. Accurate Melting Point Measurement

   • Specially developed for determining the melting point of resin peritoneal sands.

   • Ensures repeatable results critical for casting process stability.

2. Advanced Temperature Control System

   • Equipped with a thyristor regulator to adjust power supply voltage.

   • Precisely controls heating speed and stabilizes temperature distribution.

   • Uses an intelligent digital display temperature controller for real-time monitoring.

3. Portable Surface Temperature Sensor

   • Offers direct temperature measurement at any cutting point.

   • Improves versatility and enhances reliability of data acquisition.

4. User-Friendly Operation

   • Simple setup and operation, designed for routine use in laboratories.

   • Results are easy to interpret and reproduce.

5. Reliable and Durable Construction

   • Built with a heat-conducting metal beam that ensures stable performance.

   • Designed for long service life with minimal maintenance.

3. Instrument Structure

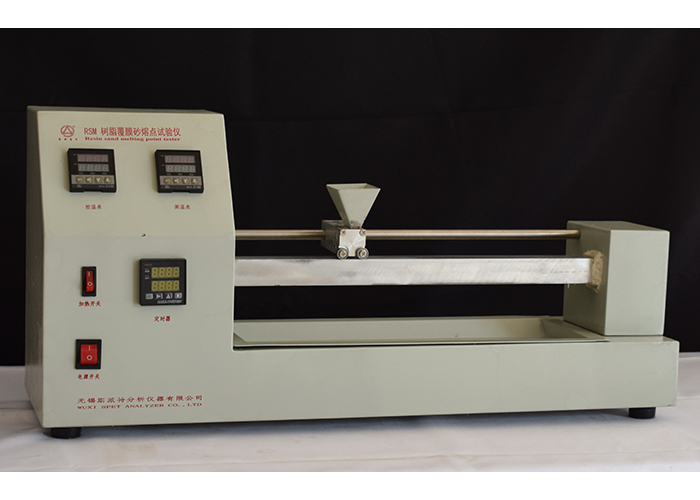

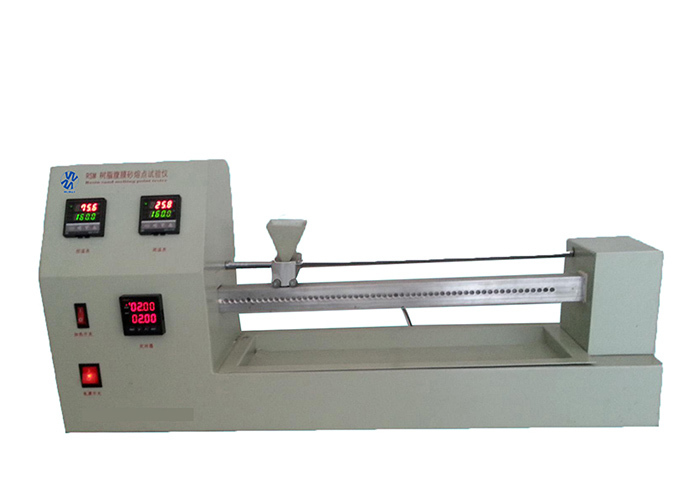

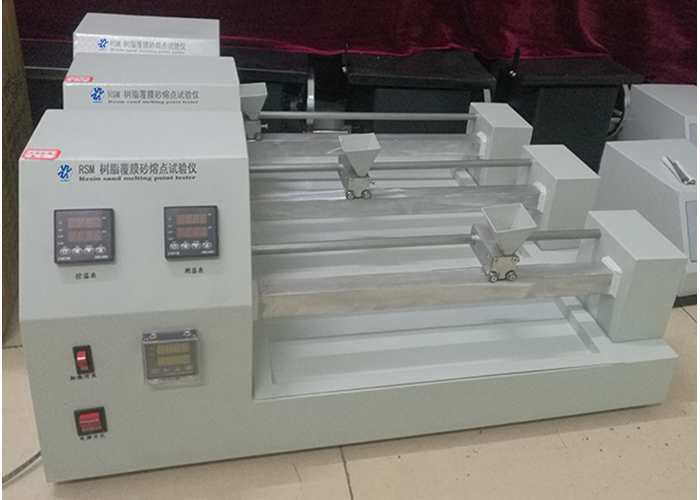

The Resin Sand Melting Point Tester (RSM) is composed of:

• Thermal conductive metal beam – maintains a controlled temperature gradient.

• Electrical control box – houses the thyristor regulator and temperature control system.

• Surface temperature sensor – portable, accurate, and easy to use.

• Sand spreader and accessories – allow even distribution of test samples.

• Support tools – including a brush and shovel for sample handling.

This simple yet robust structure ensures both accuracy and reliability while keeping maintenance requirements low.

4. Basic Working Principle

The RSM tester operates on the principle of thermal gradient measurement:

1. The heat-conducting metal beam is energized to generate a controlled temperature gradient across its surface.

2. Resin-coated sand samples are evenly spread onto the beam.

3. As the beam heats up, resin within the coated sand begins to melt and adhere to the beam surface.

4. After a fixed period, a brush removes the loose sand, leaving only the melted particles adhered.

5. The temperature at which adhesion occurs is recorded as the melting point of the resin-coated sand.

This method provides direct, accurate, and practical results, reflecting the actual performance of coated sand during casting processes.

5. Supply List

The complete testing kit includes:

• Resin coated sand melting point tester (RSM): 1 unit

• Power line: 1 piece

• Cleaning brush: 1 piece

• Sample shovel: 1 piece

• Portable surface temperature sensor: 1 piece

This ensures that laboratories and factories have all necessary accessories to begin testing immediately.

6. Applications

The RSM tester is widely used in:

• Foundries and Casting Plants – to test resin sand performance before production, ensuring stable mold quality.

• Research Institutions and Universities – for teaching, material studies, and experimental analysis.

• Quality Control Departments – to establish consistent benchmarks for resin-coated sand used in manufacturing.

• Resin Sand Suppliers – to verify product quality and guarantee performance before delivery to customers.

By using this tester, industries can reduce casting defects, improve efficiency, and enhance product reliability.

7. Advantages of the RSM Tester

• High accuracy (±1.5%) ensures dependable results.

• Stable and consistent heating with thyristor regulation.

• Portable sensor provides flexible and direct temperature measurements.

• Compact design with low power consumption (≤0.3 kW).

• User-friendly interface simplifies testing for operators at all levels.

• Durability and reliability suitable for both teaching and industrial applications.

8. Why Choose the RSM Tester?

The Resin Sand Melting Point Tester (RSM) stands out as a specialized, high-precision solution for resin-coated sand analysis. Its combination of intelligent control, robust construction, and automated measurement makes it the preferred instrument for laboratories and foundries worldwide. With its ability to deliver consistent, real-world performance data, it is invaluable for maintaining casting quality, optimizing processes, and supporting advanced material research.

9. SEO Keywords Embedded

• Resin Coating Sand Melting Point Tester

• RSM Resin Sand Testing Machine

• Resin Coated Sand Laboratory Equipment

• Foundry Sand Melting Point Tester

• Precision Resin Sand Performance Testing Instrument

• Sand Quality Control Testing Equipment

• Intelligent Melting Point Tester for Coated Sand

Conclusion

The RSM Resin Coating Sand Melting Point Tester is a compact, accurate, and user-friendly instrument designed to evaluate the melting point of resin-coated sand with precision. Its advanced temperature control system, intelligent digital display, and portable sensor provide laboratories, research institutions, and foundries with consistent and repeatable data. By ensuring accurate measurement of resin sand melting behavior, the RSM tester plays an essential role in improving casting quality, preventing defects, and supporting innovation in the foundry industry.
