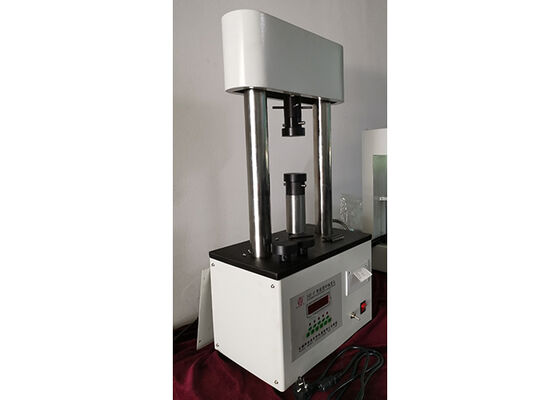

Intelligent Moulding Sand Strength Tester High Strengh With High Precision Load Cells Automatic Data Recording QR-XQY-2-1

  • Intelligent Moulding Sand Strength Tester High Strengh With High Precision Load Cells Automatic Data Recording QR-XQY-2-1
  • Intelligent Moulding Sand Strength Tester High Strengh With High Precision Load Cells Automatic Data Recording QR-XQY-2-1
Place of Origin CHINA
Brand Name MORITA
Model Number QR-XQY-2-1
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Application Moulding Sand Strength Testing
Operating Temperature 5-40℃ Accuracy ±1N
Weight 10kg Type Testing Equipment
Resolution 0.1N Power Supply AC 220V/50Hz
Storage Temperature -10-60℃ Display Digital
Measurement Range 0-20000N
Highlight

moulding sand strength tester

,

intelligent sand tester

,

intelligent sand strength tester
You can tick the products you need and communicate with us in the message board.
Max testing force 20000N
compression strengh 0-10Mpa (standard sample Φ 50 * 50), 0-28Mpa (standard sample Φ 30 * 50)
tensile strengh 0-40 Mpa (standard sample waist 22.36 * 22.36), 0-80 Mpa (standard sample waist 22.36 * 11.18)
shearing strengh 0-8 Mpa (standard sample Φ 50 * 50), 0-13 Mpa (standard sample Φ 30 * 50)
bending strengh 0-400Mpa (standard sample 22.36 * 22.36 * 150), 0-640Mpa (standard sample 22.36 * 11.18 * 60)
display accuracy ±1.5%FS
rated power 1000W
power source AC220V/50Hz
Operating environment greenhouse, relative humidity ≤ 90%
Leave a Message
Max testing force 20000N
Product Description
Intelligent Moulding Sand Strength Tester High Strength QR-XQY-2-1
Product Overview

This precision equipment is designed for comprehensive testing of molding sand and resin sand properties, including compressive strength, tensile strength, shear strength, and bending strength measurements.

Key Features
  • CNC Mechanical Loading: Utilizes specialized stepper motor and worm gear reduction mechanism with microcomputer digital control for fully automatic, uniform loading and accurate test results.

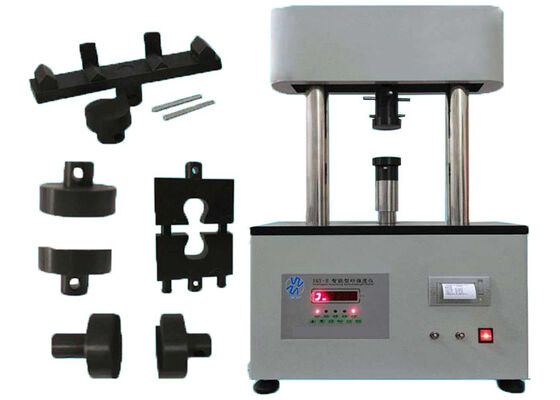

  • Cross Head Fixture Mechanism: Features a displacement adjuster for easy sample placement and reduced idle time, enhancing both testing accuracy and operational convenience.
  • High Precision Measurement: Incorporates S-shaped force sensors and 4/2 bit A/D data acquisition system for fast, accurate data collection that reflects true sample failure points.
  • Data Protection: Comprehensive data storage with power failure protection ensures no loss of test results during unexpected shutdowns.
  • Advanced Output Capabilities: Robust printing functionality for data output and averaging of multiple test results.
Technical Specifications
Parameter Specification
Maximum Testing Force 20000N
Compression Strength Range 0-10Mpa (Φ50×50 sample), 0-28Mpa (Φ30×50 sample)
Tensile Strength Range 0-40Mpa (22.36×22.36 sample), 0-80Mpa (22.36×11.18 sample)
Shearing Strength Range 0-8Mpa (Φ50×50 sample), 0-13Mpa (Φ30×50 sample)
Bending Strength Range 0-400Mpa (22.36×22.36×150 sample), 0-640Mpa (22.36×11.18×60 sample)
Display Accuracy ±1.5%FS
Rated Power 1000W
Power Source AC220V/50Hz
Operating Environment Greenhouse conditions, relative humidity ≤90%

Intelligent Moulding Sand Strength Tester High Strengh With High Precision Load Cells Automatic Data Recording QR-XQY-2-1 0
