1-10mm/Min Coating Sand Melting Point Tester High Precision Metal PID Control

  • 1-10mm/Min Coating Sand Melting Point Tester High Precision Metal PID Control
  • 1-10mm/Min Coating Sand Melting Point Tester High Precision Metal PID Control
Place of Origin CHINA
Brand Name MORITA
Model Number QR-RSM
Minimum Order Quantity 1
Delivery Time 15 DAYS
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Precision, Easy Operation, Reliable Performance Material Metal
Type Testing Equipment Application Testing The Performance Of Coated Sand
Maximum Temperature 320°C Testing Speed 1-10mm/min
Temperature Control Digital Display, PID Control Testing Time Adjustable
Power Supply AC 220V, 50Hz Rated Power ≦0.3kW
Highlight

10mm/Min sand melting point tester

,

High Precision sand melting point tester

,

PID Control melting point tester
You can tick the products you need and communicate with us in the message board.
highest measuring temperature 320±0.1℃
measuring precision ±1%
heat conduction beam size 30*30*430mm
setup of the timer discretionary
rated power ≦0.3kW
power source AC220V/50Hz (Customized)
Leave a Message
highest measuring temperature 320±0.1℃
Product Description
Coating Sand Melting Point Tester Determines The Melting Point Of Various Resin Peritoneal Sands With Precision Simple Operation With Reliable Measurement Data QR-RSM
Product Description

The Coating Sand Melting Point Tester QR-RSM is designed to measure the melting point of various types of resin coated sand with high precision and reliability.

Main Specifications
High measuring temperature
150±0.1℃
Measuring precision
±1.5%
Heat conduction beam size
30*30*430mm
Setup of the timer
Discretionary
Rated power
≦0.3kW
Power source
AC220V/50Hz (Customized)
Instrument Features
  • Determines the melting point of various resin peritoneal sands with precision
  • Utilizes thyristor regulator for power supply voltage regulation
  • Features intelligent digital display temperature controller for accurate measurement
  • Includes portable surface temperature sensor for direct measurement at any point
  • Simple operation with reliable measurement data
  • Essential for colleges, research institutions, and factory laboratories
Instrument Structure

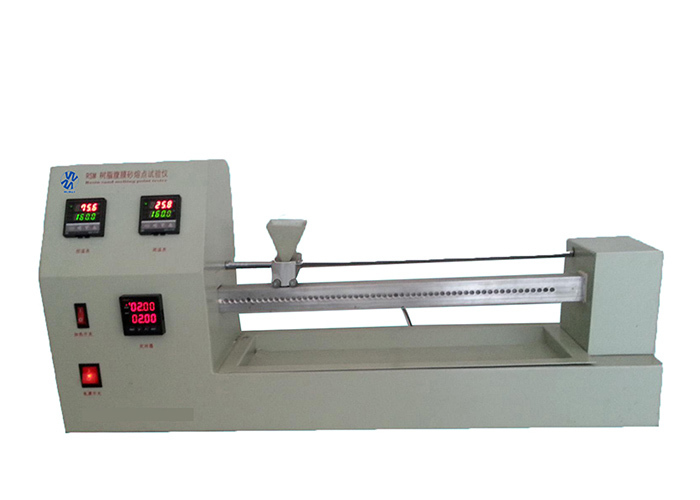

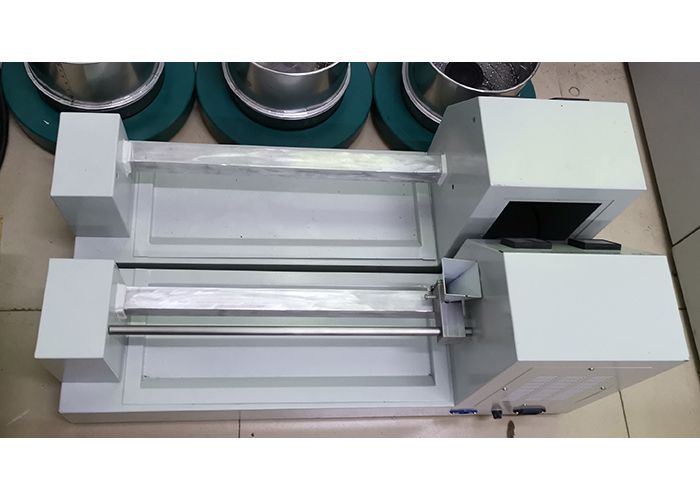

The resin sand melting point tester consists of thermal conductive metal beams, electrical control boxes, surface temperature sensors, sand spreaders, and other components.

Basic Principle

The tester generates a temperature gradient on the surface of the heat-conducting metal beam and maintains a constant temperature. When the tested sand sample is laid, the melted sand adheres to the heating beam after a period of time. The temperature at which the sand begins to adhere is measured as the melting point of the resin peritoneal sand sample.

Supply List
  • Resin coated sand melting point tester: 1 piece
  • Power line: 1 piece
  • Clean brush: 1 piece
  • Shovel: 1 piece
  • Portable surface temperature sensor: 1 piece
