Stereomicroscope High Resolution Binocular Stereo Microscope

  • Stereomicroscope High Resolution Binocular Stereo Microscope
  • Stereomicroscope High Resolution Binocular Stereo Microscope
Place of Origin China
Brand Name MORITA
Model Number QR-PXS
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy High Usage Testing The Properties Of Moulding Sand
Warranty 1 Year Function Measure And Analyze The Properties Of Moulding Sand
Application Foundry Industry Material Various Materials
Type Testing Equipment
Highlight

Stereomicroscope binocular stereo microscope

,

High Resolution binocular stereo microscope

,

High Resolution binocular stereoscope
You can tick the products you need and communicate with us in the message board.
Category Specification
Eyepiece Large field eyepiece, 10X, φ20 mm FOV
Objective lenses 1X, 2X, 3X, 4X (working distance: 100 mm)
Total magnification 10X, 20X, 30X, 40X
Binocular pupillary distance 55–75 mm adjustable
Working distance 78 mm
Focusing range 65 mm
Max height of observed object 45 mm
Leave a Message
Category Specification
Product Description

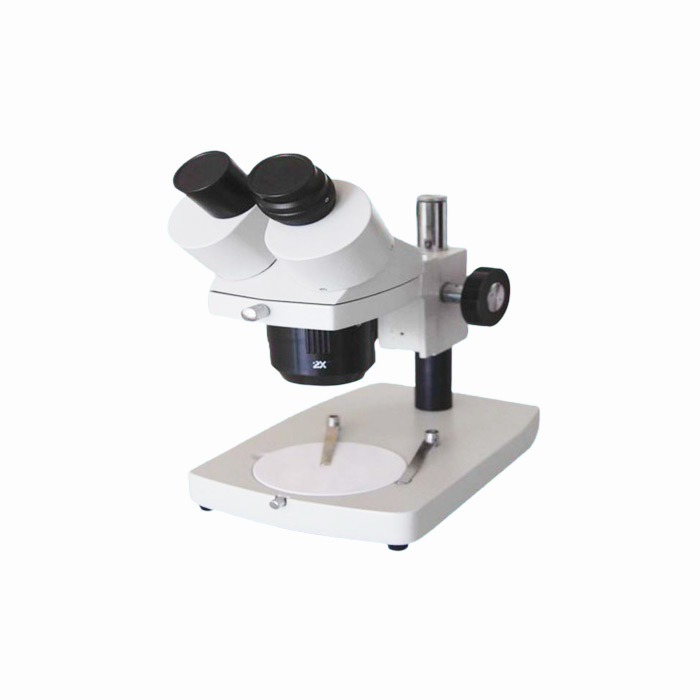

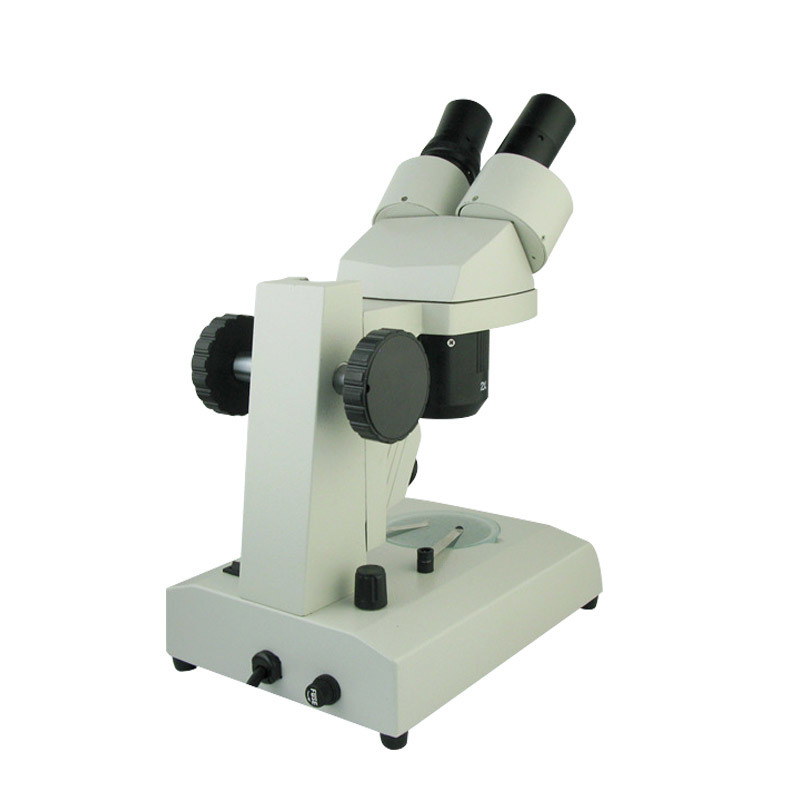

Stereomicroscope QR-PXS | High-Resolution Binocular Stereo Microscope

Product Overview

The QR-PXS Stereomicroscope (TXS binocular stereo microscope) is a precision optical instrument designed to provide upright, three-dimensional spatial images with exceptional clarity. With its strong stereoscopic effect, wide field of view, and long working distance, it is an indispensable tool for teaching, research, inspection, and industrial applications.

This model combines reliable performance, simple operation, and elegant design, making it ideal for both educational and professional environments. Whether for biological dissection, electronics inspection, seed analysis, or material surface observation, the QR-PXS delivers outstanding resolution and versatility.

Key Features & Advantages

  • True 3D Imaging: Produces upright, stereoscopic images with excellent depth perception.

  • Wide Applications: Suitable for biology, agriculture, electronics, precision machinery, and material sciences.

  • Versatile Illumination: Supports both reflected and transmitted light observation depending on sample requirements.

  • High Resolution & Clarity: Delivers sharp imaging across a large field of view for detailed analysis.

  • Ergonomic Design: Comfortable binocular head with adjustable interpupillary distance (55–75 mm).

  • Durable & User-Friendly: Simple operation, robust construction, and long service life.

Technical Specifications

Component Specification
Eyepiece Large-field eyepiece, 10X, field of view φ20 mm
Objective Lenses 1X, 2X, 3X, 4X (Working distance: 100 mm)
Total Magnification 10X, 20X, 30X, 40X
Binocular Interpupillary Adjustment 55–75 mm
Working Distance 78 mm
Focusing Range 65 mm
Max. Sample Height 45 mm

Applications

  • Education & Research: Teaching demonstrations, biological dissections, seed inspections.

  • Industrial Use: Electronics assembly and inspection, precision machinery parts evaluation.

  • Material Sciences: Observation of sand particle morphology, surface texture analysis, sintered sample evaluation.

  • Agriculture: Quality control and seed morphology inspection.

Supply List

  • 1 × Main Unit

  • 1 × Pair of Objective Lenses (2X, 4X)

  • 1 × Pair of Eyepieces (10X)

  • 1 × Spare Light Bulb

  • 1 × Pair of Eye Masks

Why Choose QR-PXS Stereomicroscope?

The QR-PXS binocular stereomicroscope is designed for high precision and versatility, making it an excellent choice for laboratories, universities, and industrial workshops. Its affordable cost, reliable optical quality, and multifunctional applications make it a smart investment for professionals seeking consistent and accurate results.



Stereomicroscope High Resolution Binocular Stereo Microscope 0
