Resin Sand Mixer Smooth And Quiet Operation For Consistent Sand Samples

  • Resin Sand Mixer Smooth And Quiet Operation For Consistent Sand Samples
  • Resin Sand Mixer Smooth And Quiet Operation For Consistent Sand Samples
  • Resin Sand Mixer Smooth And Quiet Operation For Consistent Sand Samples
Place of Origin China
Brand Name MORITA
Model Number QR-SHY
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Voltage 380V
Application Mixing Sand For Foundry Industry The Size Of Mixing Tank ɸ195*150mm
Mixed Amount Every Time 3-5kg Power Source Electric
Material Stainless Steel Mixing Speed 65/137 Rpm
Highlight

65rpm resin sand mixer

,

137rpm resin sand mixer

,

Stainless Steel sand mixer machine
You can tick the products you need and communicate with us in the message board.
mixed amount every time 3-5kg
the width of blade 129mm
the size of mixing tank ɸ195*150mm
blade speed(cloclwise) 137RPM
blade speed(anticloclwise) 65RPM
power source AC380V/550W,50HZ
Leave a Message
mixed amount every time 3-5kg
Product Description

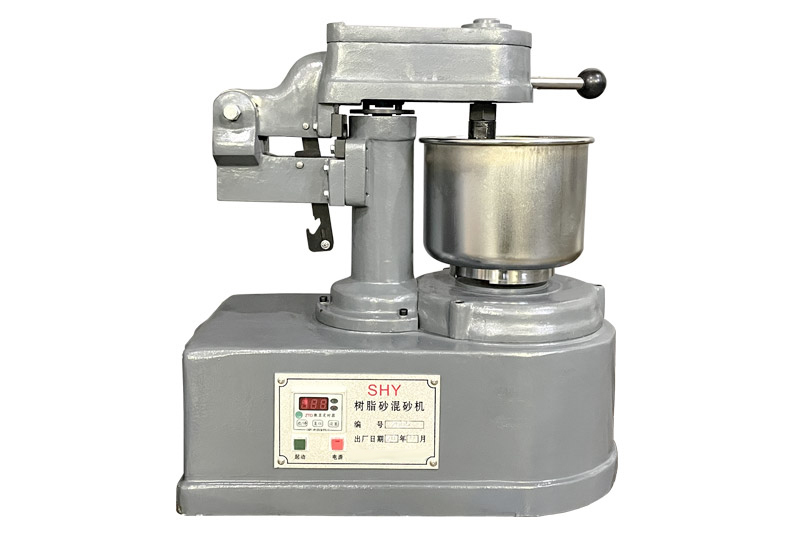

QR-SHY Resin Sand Mixer Smooth And Quiet Operation For Consistent Sand Samples In Testing And Production

Product Overview

The QR-SHY Resin Sand Mixer is designed for mixing resin sand, waterglass sand (sodium silicate-bonded sand), and refractory materials. It ensures uniform distribution of binders and additives, producing high-quality sand suitable for testing and casting applications.

Equipped with an advanced transmission system and a high-efficiency cycloid speed reducer, the QR-SHY operates quietly and reliably while maintaining precise mixing performance.

Main Specifications

Parameter Specification
Mixed amount per batch 3–5 kg
Blade width 129 mm
Mixing tank size Φ195 × 150 mm
Blade speed (clockwise) 137 RPM
Blade speed (anticlockwise) 65 RPM
Power source AC 380V / 550W, 50 Hz

Instrument Features

  1. Advanced transmission system – ensures smooth and reliable operation.

  2. High-efficiency cycloid speed reducer – compact, quiet, and durable.

  3. Uniform mixing – produces consistent resin sand samples suitable for testing or production.

  4. Simple operation and maintenance – easy to use in laboratory or industrial environments.

Main Applications

The QR-SHY Resin Sand Mixer is widely used in:

  • Foundry and casting industry – for preparing resin and waterglass sand mixtures.

  • Scientific research & universities – for experimental studies of sand properties and refractory materials.

  • Quality inspection laboratories – ensuring homogeneous sand mixtures for testing.

  • Industrial production facilities – for small-scale resin sand preparation and material testing.

✅ Why Choose QR-SHY?

  • Produces uniform and high-quality sand mixtures.

  • Advanced transmission and speed reducer system for quiet and reliable operation.

  • Suitable for laboratory, research, and industrial applications.

  • Efficient and easy to operate with minimal mainte
