Advanced Electronic Sensor Technology Gas Evolution Tester For Molding And Coating Materials

  • Advanced Electronic Sensor Technology Gas Evolution Tester For Molding And Coating Materials
  • Advanced Electronic Sensor Technology Gas Evolution Tester For Molding And Coating Materials
Place of Origin China
Brand Name MORITA
Model Number QR-SFZ
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Of Pyrolysis Furnace 600-1200°C Measuring Range 0-100 Ml
Temerature Accuracy ±1℃ Dimensions 300mm X 200mm X 100mm
Rated Power 4 KW Power Supply AC 220V/50Hz
Highlight

100ml Gas Evolution Tester

,

4kW Gas Evolution Tester

,

220V gas evolution tester
You can tick the products you need and communicate with us in the message board.
measuring range 0-100ml, accuracy: ±3%, resolution: 0.1ml
temperature of pyrolysis furnace 600-1200℃, accuracy:±1℃
rated power 4KW
power source AC220V/50HZ
Leave a Message
measuring range 0-100ml, accuracy: ±3%, resolution: 0.1ml
Product Description

Advanced Electronic Sensor Technology Gas Evolution Tester For Molding And Coating Materials

Product Introduction

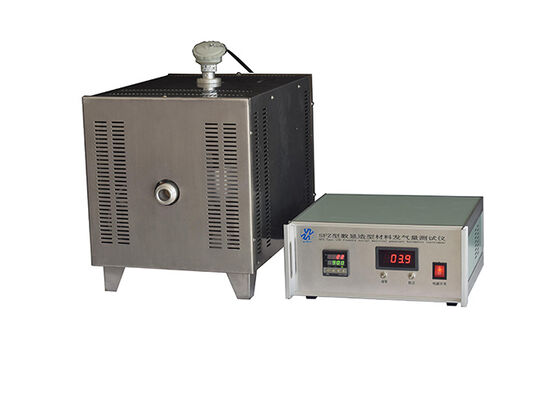

The Digital Readout Moulding Materials Gas Evolution Tester (QR-SFZ) is a reliable and efficient instrument designed to evaluate the gas performance of molding and coating materials under high-temperature conditions. It is suitable for testing casting molding sand, clay sand, resin sand, coated sand, and coating materials, helping to prevent casting defects by accurately measuring gas evolution characteristics.

Equipped with advanced electronic and sensor technology, the QR-SFZ uses a digital readout display box for clear and precise results. Compact, user-friendly, and dependable, this tester is widely applied in foundries, research institutes, quality inspection centers, and university laboratories.

Key Features

  1. Advanced Technology

    • Incorporates modern electronic and high-sensitivity sensor technology for stable performance.

  2. Digital Readout Display

    • Results are shown directly on a digital readout box, ensuring simple and intuitive operation.

  3. High-Temperature Testing

    • Pyrolysis furnace with a range of 600–1200℃ and ±1℃ accuracy.

  4. Accurate Measurement

    • Gas volume measuring range of 0–100ml with ±3% accuracy and 0.1ml resolution.

Technical Specifications

Item Specification
Measuring range 0–100ml, Accuracy: ±3%, Resolution: 0.1ml
Pyrolysis furnace temperature 600–1200℃, Accuracy: ±1℃
Rated power 4KW
Power supply AC220V / 50Hz

Applications

The QR-SFZ Digital Readout Gas Evolution Tester is widely used in:

  • Foundry and Casting Industry – to evaluate gas evolution of molding and coating materials.

  • Machinery Manufacturing – ensuring consistent quality control of molding sands.

  • Quality Inspection Labs – providing reliable test data for process validation.

  • Scientific Research & Universities – for teaching, research, and experimental analysis.

✅ Why Choose the QR-SFZ?

  • Digital readout display for direct and precise results.

  • Compact design with simple operation.

  • Accurate gas measurement with 0.1ml resolution.

  • High-temperature capability up to 1200℃.

  • Reliable and cost-effective for industrial and educational applications.
