Intelligent Gas Evolution Tester For Accurate Weight Measurement And Enhanced Test Precision

  • Intelligent Gas Evolution Tester For Accurate Weight Measurement And Enhanced Test Precision
  • Intelligent Gas Evolution Tester For Accurate Weight Measurement And Enhanced Test Precision
Place of Origin China
Brand Name MORITA
Model Number QR-GET2000A
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy ±1% Power Supply AC 220V/110V 50Hz/60Hz
Measuring Range 0-1000ml Test Method Automatic
Rated Power 2KW Test Temperature 1100℃
Highlight

Intelligent Gas Evolution Tester

,

1000ml Gas Evolution Tester

,

2KW gas evolution tester
You can tick the products you need and communicate with us in the message board.
measuring range 0-200ml, accuracy: ±2%
temperature of pyrolysis furnace 600-1200℃, accuracy:±1℃
temperature of measurement system 0-120℃, accuracy:±1℃
temperature of working condition -5-45℃
humidity of working condition ≦85%
timing range 120min, can be set up arbitrarily
rated power 4KW
power source AC220V/50HZ
Leave a Message
measuring range 0-200ml, accuracy: ±2%
Product Description

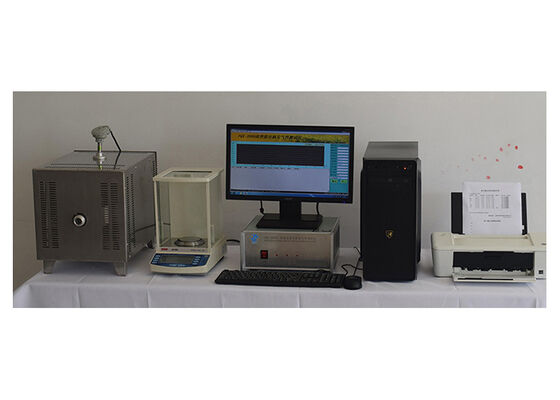

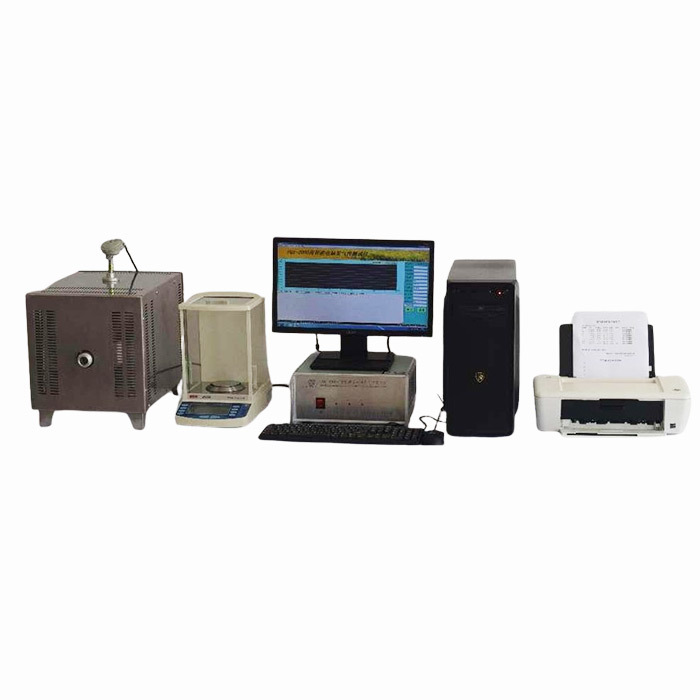

Intelligent Gas Evolution Tester For Accurate Weight Measurement And Enhanced Test Precision In High-Temperature Conditions QR-GET2000A

Product Introduction

The Intelligent Moulding Materials Gas Evolution Tester (QR-GET2000A) is a high-precision instrument designed to evaluate the gas performance of molding materials under high-temperature conditions. It is suitable for testing casting molding sand, clay sand, resin sand, coated sand, and coating materials, providing accurate data on gas evolution behavior.

Equipped with advanced electronics, computer technology, and high-sensitivity sensors, this instrument ensures reliable, efficient, and user-friendly testing. It features industrial-grade PC control with Windows OS, real-time curve display, data storage, and result printing functions. This makes it an indispensable tool for foundries, quality inspection centers, research institutions, and universities.

Key Features

  1. Advanced Technology Integration

    • Combines electronic, computer, and sensor technology for precise measurements.

  2. Industrial PC Control

    • Controlled by an industrial-grade computer with Windows operating system for stable and efficient operation.

  3. Dynamic Curve Display

    • Real-time display of gas evolution and release curves.

    • Supports data saving, inquiry, analysis, and result printing.

  4. High-Temperature Capability

    • Pyrolysis furnace with a wide range of 600–1200℃ and accuracy of ±1℃.

  5. Integrated Electronic Balance

    • Provides accurate weight measurement for enhanced test precision.

Technical Specifications

Item Specification
Measuring range 0–200ml, Accuracy: ±1.5%
Pyrolysis furnace temperature 600–1200℃, Accuracy: ±1℃
Measurement system temperature 0–120℃, Accuracy: ±1℃
Working temperature -5℃ to 45℃
Working humidity ≤85%
Timing range 0–120 min, adjustable
Rated power 4KW
Power supply AC220V / 50Hz

Applications

The QR-GET2000A Gas Evolution Tester is widely used in:

  • Foundry & Casting Industry – to evaluate the gas release of molding materials and prevent casting defects.

  • Machinery Manufacturing – for process quality control.

  • Quality Inspection Labs – for reliable testing and verification of molding material properties.

  • Scientific Research & Universities – as a teaching and research instrument for material analysis.

✅ Why Choose the QR-GET2000A?

  • Wide testing range (0–200ml) with high accuracy.

  • Industrial-grade PC control with Windows OS.

  • Real-time curve display with storage, query, and analysis functions.

  • High-temperature furnace (600–1200℃) with stable precision.

  • Integrated electronic balance for improved measurement accuracy.
