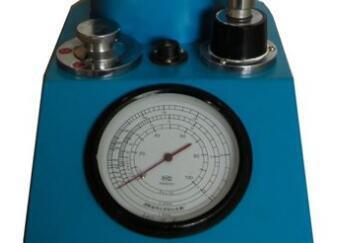

Direct Reading Sand Air Permeability Tester Scientific Research 220V
| Place of Origin | China |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-STZ |
| Minimum Order Quantity | 1 PC |
| Packaging Details | wooden case |
| Delivery Time | 35 days |
| Payment Terms | T/T |
| Supply Ability | 100 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Pressure | 981Pa | Usage | To Measure The Air Permeability Of Sand |
|---|---|---|---|
| Power Supply | 220V, 50Hz | Warranty | 1 Year |
| Dimensions | 600mm X 500mm X 500mm | Accuracy | ±1% |
| Highlight | Direct Reading Sand Air Permeability Tester,Scientific Research Sand Air Permeability Tester,220V air permeability testing machine |
||
You can tick the products you need and communicate with us in the message board.
| sample size | ɸ50mm*50mm | |
|---|---|---|
| air source pressure | 981Pa±5Pa(100mmH2O） | |
| air hole size | large hole: 1.5mm, small hole: 0.5mm | |
| air permeability | 0-2450, ±1%FS | |
| power source | AC220V/50Hz, 3KW | |
| enviroment condition | greenhouse, relative humidity: ≦90%(no ondensation) |
Product Description

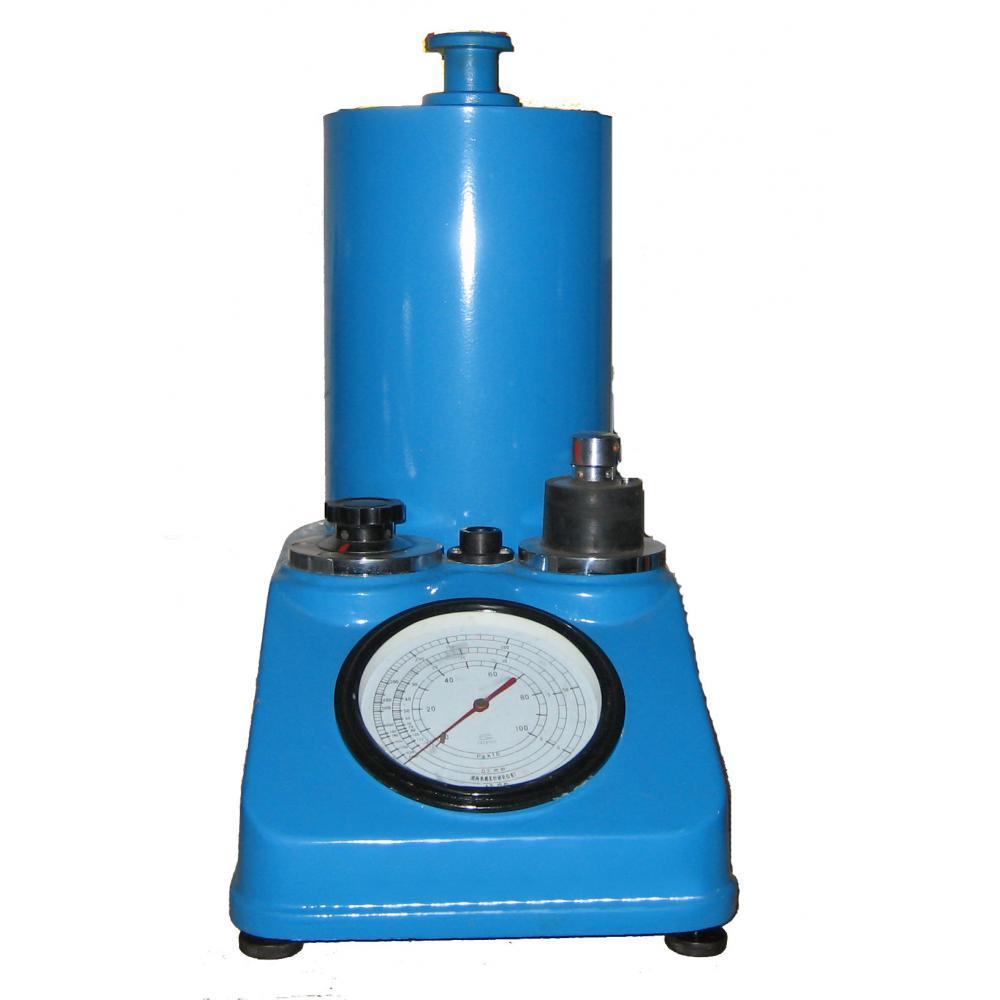

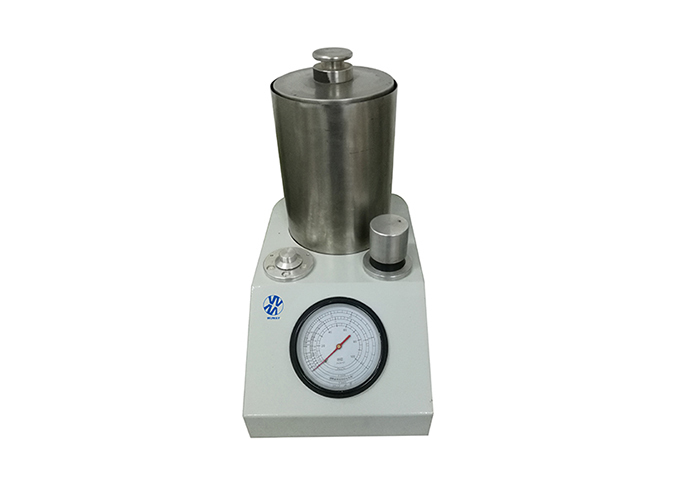

Direct Reading Air Permeability Tester (QR-STZ)
The Direct Reading Air Permeability Tester (QR-STZ) is a precision instrument designed to measure the air permeability of moulding sand and core sand under both dry and wet conditions. It is an essential device for foundries, machinery manufacturers, and research laboratories aiming to ensure the quality and consistency of sand used in casting processes.
Key Features
-
Electronic Frequency Modulation Motor: Ensures accurate and stable operation with variable speed regulation.
-
Direct Digital Display: Air permeability readings are displayed clearly on the instrument board for easy monitoring.
-
High Accuracy: Measures air permeability with an accuracy of ±1% full scale (FS).
-
Versatile Testing: Compatible with dry and wet sand samples, making it ideal for different industrial and laboratory conditions.
Applications
The QR-STZ is widely used in:
-
Foundries – For quality control of molding and core sand.
-
Machinery and Casting Industries – Ensures casting defects are minimized by checking sand permeability.
-
Scientific Research and University Labs – Supports studies in materials science and engineering.
-
Qualitative Inspection – Reliable tool for routine testing of sand permeability.
Main Specifications
| Parameter | Specification |
|---|---|
| Sample Size | ɸ50mm × 50mm |
| Air Source Pressure | 981 Pa ± 5 Pa (100 mmH₂O) |
| Air Hole Size | Large hole: 1.5 mm; Small hole: 0.5 mm |
| Air Permeability Range | (1) 0–2450, (2) 0–50 ±1% FS |
| Power Source | AC 220V / 50Hz, 3 kW |
| Environmental Condition | Greenhouse; Relative Humidity ≤ 90% (no condensation) |
Why Choose QR-STZ
-
High Precision: Accurate measurement ensures reliable evaluation of sand permeability.
-
User-Friendly Operation: Digital display simplifies monitoring and data recording.
-
Durable and Stable: Designed to withstand laboratory and industrial environments.
-
Versatile: Suitable for both dry and wet sand testing, expanding its application range.
-
Widely Recognized: Trusted in foundries, universities, and research institutions for its consistency and reliability.
