Casting Plants Laboratories Green Sand Testing Equipment 220V 50Hz

Transform Your Foundry S Control With The qR-GSP Wet Moulding Sand Performance Testing System

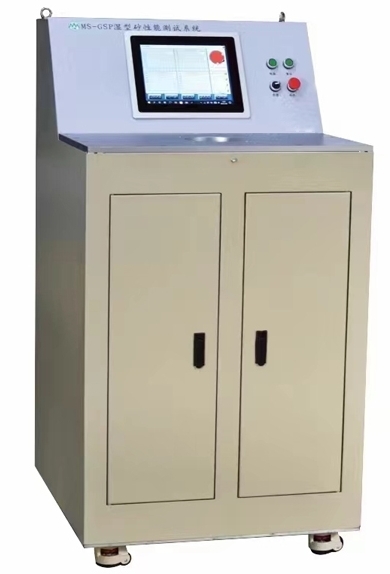

The Green Sand Performance Testing System MS-GSP is a next-generation multifunctional testing instrument designed to measure the core performance indicators of green sand with speed, accuracy, and automation. Green sand is the most widely used molding material in modern foundry production, and its performance directly determines the quality of castings, the stability of the process, and the efficiency of production.

With the MS-GSP testing system, foundries can obtain real-time, reliable, and comprehensive performance data on green sand, including compactness, moisture content, permeability, and wet compressive strength. The system completes a full cycle of measurements within 4 minutes, making it one of the fastest and most efficient solutions available for sand testing and quality control.

By integrating advanced automation, a Win10 industrial control system, and real-time data recording, the MS-GSP not only simplifies testing but also supports the digital transformation of foundries, providing essential data to MES (Manufacturing Execution System) platforms.

1. Importance of Green Sand Performance Testing

Green sand quality is a critical foundation for casting production. Variations in moisture, permeability, or compactness can lead to defects such as:

• Gas porosity

• Sand inclusion

• Surface roughness

• Weak mold strength and collapse

Therefore, real-time monitoring and adjustment of green sand performance is key to ensuring consistent casting quality and minimizing scrap rates.

The MS-GSP Green Sand Performance Testing System provides a scientific, fast, and accurate solution, replacing manual testing with an automated, intelligent process.

2. Main Functions and Features

1. Industrial Touch Screen and Win10 System

   • Equipped with a touch screen industrial computer running Windows 10.

   • Provides an intuitive interface with simple menu-driven operation.

2. One-Click Full Test

   • With a single press, the system performs complete tests for:

     • Compactness

     • Moisture content

     • Permeability

     • Wet compressive strength

   • After testing, the device automatically returns to its initial position, ready for the next sample.

3. Real-Time Curve Display

   • Displays dynamic curves of compactness, moisture, permeability, and strength during testing.

   • Automatically presents final results after each test.

4. Automatic Data Recording

   • Every test, along with the operational process, is automatically recorded.

   • Managers can easily review past operations, results, and user activities.

5. Data Storage and Trend Analysis

   • Results are stored automatically and can be queried at any time.

   • The system generates trend charts of parameter changes to track variations in sand quality over time.

   • Enables proactive monitoring and process optimization.

6. Fast Testing Speed

   • Entire process completed in 4 minutes or less, providing rapid results for timely adjustments in sand treatment.

3. Measurement Range and Specifications

• Wet Compressive Strength: 0 – 0.5 MPa

• Permeability (Breathability): 0 – 2450

• Moisture Content: 0 – 10%

• Compaction Rate Range: 20 – 70%

Standard Accessories:

• MS-GSP testing system (1 set)

• Sand bucket (1 piece)

• Brush (1 piece)

• Eye screening tool (1 set)

• Documentation package (certificate of conformity, instruction manual, etc.)

4. Advantages of the MS-GSP Green Sand Performance Testing System

• Multifunctional Integration

  • Combines four essential tests into a single device, reducing the need for multiple instruments.

• Automation and Efficiency

  • Replaces manual testing with fully automated operation, minimizing human error.

• High Accuracy

  • Ensures precise and repeatable measurements, supporting stable casting production.

• Data-Driven Decision Making

  • Provides trend analysis and historical data to support long-term process optimization.

• Digital Foundry Support

  • Integrates with MES systems, contributing to smart foundry management and Industry 4.0 transformation.

• User-Friendly Interface

  • Simplifies operation with a Win10 touchscreen system, suitable for operators at all skill levels.

• Rapid Testing Cycle

  • Delivers reliable results in 4 minutes, enabling quick response and process adjustments.

5. Applications

The MS-GSP system is ideal for casting plants, laboratories, and research institutions that require real-time monitoring of green sand performance.

• Foundries

  • Monitor and control green sand quality during daily production.

  • Reduce scrap and improve consistency of castings.

• Quality Control Laboratories

  • Perform standardized testing for sand batches.

  • Provide objective data for quality certifications.

• Research and Development

  • Investigate the effects of different binders, additives, and treatment methods on sand performance.

• Educational Institutions

  • Train students in modern sand testing methods and digital foundry practices.

6. Why Choose MS-GSP?

The MS-GSP is not just a testing machine—it is a smart, integrated performance monitoring system that supports both production efficiency and digital transformation.

Key reasons to choose MS-GSP:

• Multifunctional testing in one device

• Full automation with one-click operation

• Real-time data and trend analysis

• Seamless MES integration

• User-friendly Win10 interface

• Fast 4-minute testing cycle

With these advantages, the MS-GSP system has become a trusted tool in modern foundries, ensuring stable sand performance and high-quality casting production.

7. SEO Keyword Optimization

For maximum visibility in search engines, the following keywords are embedded:

• Green Sand Performance Testing System

• MS-GSP Green Sand Tester

• Automatic Green Sand Testing Equipment

• Foundry Sand Compaction and Strength Tester

• Green Sand Quality Control System

• Sand Moisture and Permeability Tester

• Digital Sand Testing Instrument

Conclusion

The MS-GSP Green Sand Performance Testing System is a state-of-the-art solution for real-time testing and monitoring of green sand properties. By integrating four essential tests—compactness, moisture, permeability, and wet compressive strength—into one automated unit, it significantly improves the efficiency, accuracy, and reliability of sand testing in foundries.

With its touch screen Win10 interface, automatic data management, trend chart analysis, and MES compatibility, the MS-GSP not only supports daily quality control but also plays a central role in the digitalization and intelligent transformation of foundries.

For foundries aiming to reduce defects, optimize sand treatment, and achieve consistent casting quality, the MS-GSP is the ideal investment for modern production and research environments.
