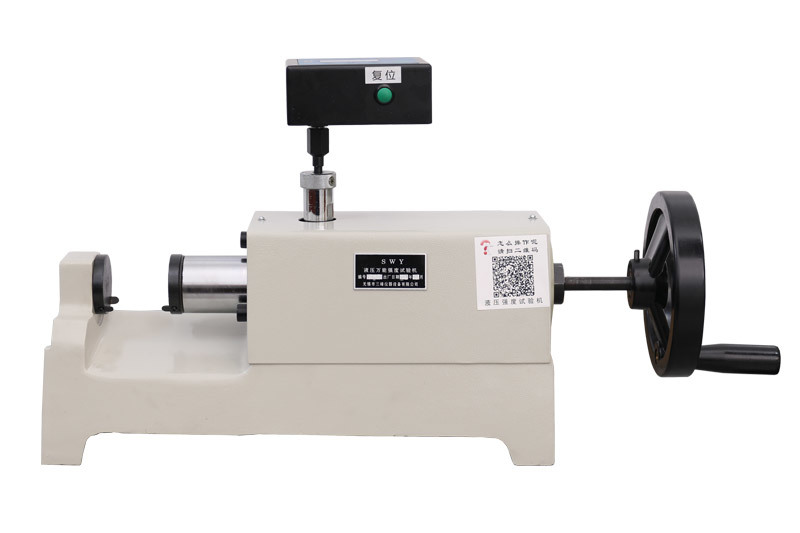

Horizontal Digital Hydraulic Sand Strength Machine QR-SWY

The QR-SWY Horizontal Digital Hydraulic Sand Strength Machine is a professional testing instrument designed to measure the compressive, tensile, shear, and bending strength of moulding and core sand under both dry and wet conditions at room temperature. By integrating manual hydraulic loading with precision digital sensing and display systems, this machine delivers reliable performance for quality control, laboratory testing, and research applications.

Product Overview

The quality of moulding sand directly impacts the dimensional accuracy, strength, and reliability of cast products. The QR-SWY sand strength tester provides accurate measurement of sand mechanical properties through a hydraulic loading system that applies force consistently to the test specimen. The use of digital sensors and a high-clarity meter display ensures that test results are recorded precisely and can be easily analyzed.

This instrument is particularly valued in foundries, research institutes, and material testing laboratories, where testing requirements demand both practical usability and measurement accuracy.

Main Specifications

• Maximum Thrust: 2800 N

• Piston Diameter: Φ22.6 mm

• Measurement Accuracy: ±1.5%

• Working Voltage: AC 220 V

Key Features

1. Manual Hydraulic Loading

   • The QR-SWY adopts a manual hydraulic loading mechanism, allowing operators to apply load smoothly and control test procedures with stability.

   • This system minimizes sudden force fluctuations, ensuring steady application of pressure on the sand specimen.

2. Digital Data Collection

   • High-sensitivity sensors collect real-time data during the test, providing accurate force measurements.

   • Results are displayed directly on a digital meter, giving users immediate access to test values without manual calculations.

3. Maximum Force Retention

   • The system is designed to maintain the maximum destructive force value, ensuring the peak test result is accurately recorded for further analysis.

4. Durable and Reliable Structure

   • Built with high-strength materials, the machine ensures durability under frequent testing conditions.

   • The compact horizontal structure allows for convenient sample placement and operation.

5. User-Friendly Operation

   • Simple manual operation and a clear digital interface make the QR-SWY ideal for operators with varying levels of technical expertise.

Advantages

• High Accuracy: With a measurement accuracy of ±1.5%, the QR-SWY ensures reliable and repeatable results.

• Cost-Effective Testing: Manual hydraulic loading reduces operational costs while maintaining robust performance.

• Practical Versatility: Capable of testing compressive, tensile, shear, and bending strength of sand under wet and dry conditions.

• Easy to Use: Designed for quick setup, intuitive handling, and minimal maintenance requirements.

• Industrial Reliability: Stable hydraulic system and digital sensors ensure consistent performance over extended use.

Applications

The QR-SWY Horizontal Digital Hydraulic Sand Strength Machine is widely applied across different industries and sectors:

• Foundry and Casting Industry – To evaluate the mechanical properties of moulding and core sands, ensuring casting quality and mold integrity.

• Machinery and Manufacturing – For quality control and process improvement in material testing.

• Research Institutes & Universities – For scientific studies, educational purposes, and experimental material testing.

• Quality Assurance Departments – To conduct routine sand strength testing and ensure compliance with production standards.

Why Choose QR-SWY?

The QR-SWY offers a balance between precision, affordability, and usability. Its manual hydraulic loading system is simple yet highly effective, while the digital data display ensures accurate results every time. With its ability to test multiple strength parameters (compressive, shear, tensile, and bending) under both wet and dry conditions, the QR-SWY is an indispensable tool for foundries, laboratories, and educational institutions.

For organizations seeking a reliable, user-friendly, and cost-effective sand strength testing solution, the QR-SWY is the ideal choice.
