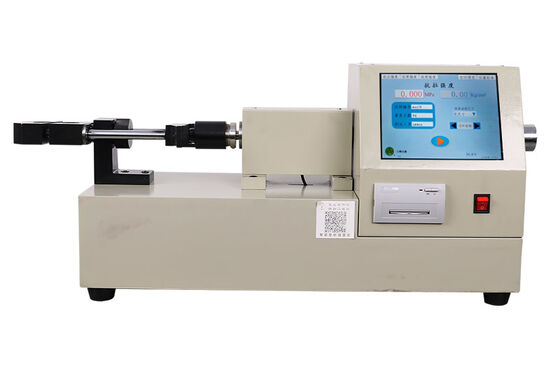

QR-XQY-II-1 Horizontal Intelligent Sand Strength Testing Machine High Precision Sand Testing Equipment

QR-XQY-II-1 Horizontal Intelligent Sand Strength Machine – High-Precision Sand Testing Equipment

The QR-XQY-II-1 Horizontal Intelligent Sand Strength Machine is a specialized testing instrument designed to measure the compressive, tensile, shear, and bending strength of type (core) sand under dry and wet conditions at room temperature. It combines automatic mechanical loading, precise data acquisition, and digital display technology to provide accurate, reliable, and repeatable test results for industrial and research applications.

Product Features

• Automatic Mechanical Loading
  The QR-XQY-II-1 adopts an automated loading mechanism controlled by precision sensors, ensuring uniform application of force and eliminating human error. This enhances test repeatability and accuracy.

• High-Precision Data Acquisition
  Sensors collect real-time test data, and results are displayed directly on a digital meter, capturing and maintaining the maximum destructive force value for detailed analysis.

• Advanced Data Management
  The system supports data storage, output, and printing, allowing operators to store results securely and generate reports with ease. It is equipped with a computer interface (including software) and an RS485–RS232 conversion interface for efficient data transfer. Test data is stored in .txt format, simplifying integration into quality control systems.

Technical Specifications

• Maximum Thrust: 3000 N (maximum 10,000 N)

• Compressive Strength Range: 0–1.5 MPa (maximum 5 MPa)

• Tensile Strength Range: 0–6 MPa

• Shear Strength Range: 0–1.2 MPa

• Bending Strength Range: 0–60 MPa

• Measurement Accuracy: ±1.5%

Key Advantages

1. High Accuracy – Ensures precise strength measurement across multiple testing modes.

2. Versatile Testing Capability – Supports compressive, tensile, shear, and bending strength measurements under both dry and wet conditions.

3. Efficient Data Handling – Real-time data acquisition, storage, and export functions streamline analysis and reporting.

4. Industrial-Grade Reliability – Designed for consistent performance in demanding quality control and research environments.

5. User-Friendly Operation – Simple digital display and computer interface ensure smooth workflow and minimal training requirements.

Applications

The QR-XQY-II-1 is widely used in:

• Foundries – Testing moulding and core sand properties for casting quality.

• Machinery & Casting Industries – Ensuring production materials meet strength standards.

• Research & Development Laboratories – Studying sand behavior under various conditions.

• Quality Control Departments – Verifying material performance for industrial applications.

Why Choose QR-XQY-II-1?

Combining precision engineering, automated loading technology, and advanced data management, the QR-XQY-II-1 delivers reliable results for both laboratory research and industrial quality control. Its ability to test under dry and wet conditions makes it a versatile and essential tool for foundries, casting facilities, and materials research institutions.
