Itelligent Moulding Sand Strength Tester High Strength Testing Solution

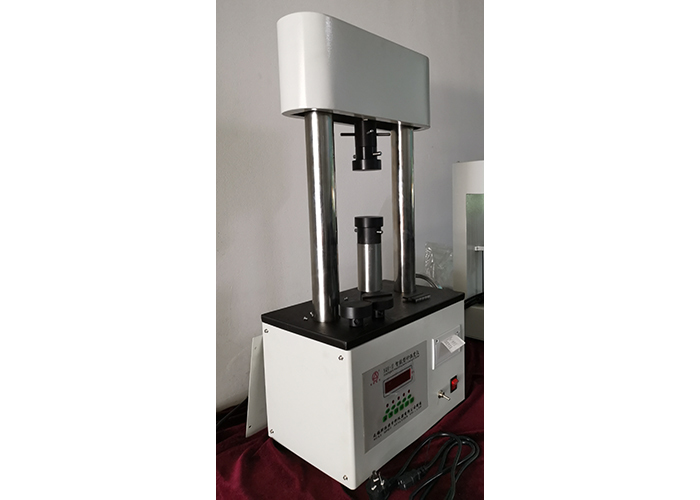

The XQY-2 Intelligent Moulding Sand Strength Tester is an advanced testing instrument designed for measuring the compressive strength, tensile strength, shear strength, and bending strength of high-strength moulding sand and resin sand. With its CNC mechanical loading system, high-speed data acquisition, and vertical loading design, the XQY-2 ensures precise, consistent, and reliable test results that meet the rigorous demands of modern foundry and metallurgical industries.

Product Introduction

Testing the mechanical properties of moulding sand is critical in casting and metallurgical applications, where sand quality directly affects mould stability, casting precision, and product integrity. The XQY-2 Intelligent Moulding Sand Strength Tester combines state-of-the-art digital control technology with high-precision sensors to deliver accurate strength measurements across multiple parameters, including compression, tensile, shear, and bending forces.

Unlike traditional horizontal loading systems, the XQY-2 adopts a vertical loading mechanism, significantly reducing testing errors caused by static friction and self-weight effects. Its CNC-controlled mechanical loading and crosshead fixture mechanism simplify sample placement, reduce idle time, and ensure smooth, reliable operation.

This instrument is designed for laboratories, research institutions, and industrial quality control facilities that require high accuracy, repeatability, and data integrity in sand testing procedures.

Core Features and Advantages

1. CNC Mechanical Loading – Precision Meets Automation

The XQY-2 utilizes a special stepper motor and worm gear reduction system, digitally controlled by a microcomputer for fully automatic, uniform, and smooth loading. Unlike hydraulic systems, which can suffer from oil leakage and viscosity variations, CNC loading eliminates these variables, ensuring reliable test results across different environmental conditions.

2. Vertical Loading System – Reduced Measurement Errors

Traditional horizontal testers often experience measurement deviations due to static friction and uneven load distribution. The XQY-2 employs a vertical loading design, which aligns the load with the force direction of the sample, minimizing external influences and improving accuracy in both low and high-strength tests.

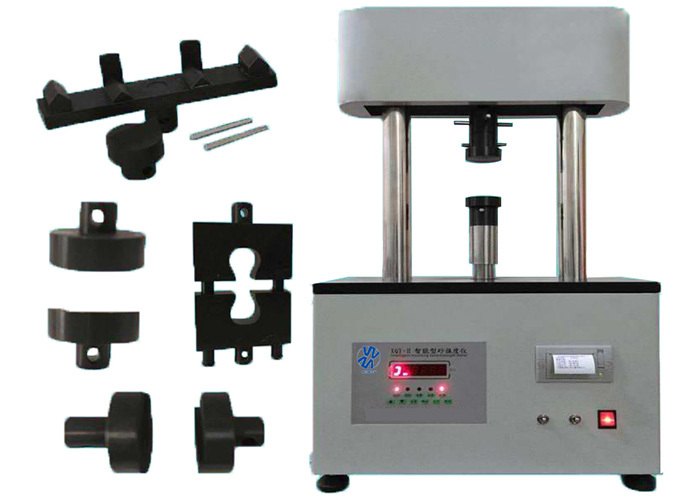

3. Crosshead Fixture Mechanism – Easy Operation and Higher Efficiency

A crosshead displacement adjuster allows convenient placement and adjustment of test samples. This not only speeds up the testing process but also ensures that each test begins with the correct alignment, improving overall measurement precision and operational efficiency.

4. High-Precision Force Measurement

Equipped with an S-type high-precision force sensor and a 4/2-bit A/D data acquisition system, the XQY-2 captures data at high speed, ensuring accurate detection of destructive forces at the exact moment of material failure. This capability is essential for ensuring test results reflect the true mechanical properties of the moulding sand.

5. Data Storage and Power Failure Protection

The instrument features an integrated data storage system capable of retaining collected data during power interruptions or shutdowns. Test results can be easily displayed, reviewed, and printed after testing, ensuring data integrity and traceability.

6. Powerful Printing and Data Output

Users can print test results directly via keyboard commands. For multiple data sets, the instrument can automatically calculate and print average values, providing comprehensive statistical data for quality control and research analysis.

Technical Specifications

Applications

The XQY-2 is widely used in foundry industries, metallurgical research, and resin sand quality control. Its versatile testing capabilities make it suitable for:

• Foundries – Evaluating moulding sand performance for high-precision casting processes.

• Research Institutions – Studying mechanical properties of new sand formulations.

• Quality Control Laboratories – Ensuring consistent sand strength for mass production.

• Industrial Manufacturing – Monitoring sand quality to improve casting accuracy and reduce production defects.

Why Choose the XQY-2 Intelligent Moulding Sand Strength Tester?

• High Accuracy & Repeatability – CNC mechanical loading and high-precision sensors ensure consistent performance.

• Vertical Loading Design – Minimizes testing errors compared to horizontal systems.

• Comprehensive Testing – Measures compressive, tensile, shear, and bending strengths with one machine.

• Data Integrity & Printing – Reliable storage, power failure protection, and easy data output.

• User-Friendly Operation – Ergonomic crosshead fixture system and intuitive digital interface.

Whether used in foundries, laboratories, or research facilities, the XQY-2 is engineered to meet international standards for sand strength testing, delivering reliable, accurate, and reproducible results every time.
