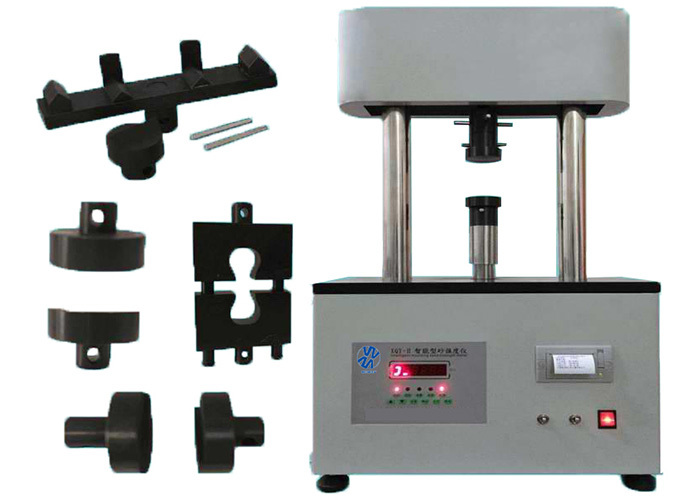

Intelligent Moulding Sand Strength Tester (XQY-2)

  • Intelligent Moulding Sand Strength Tester (XQY-2)
Place of Origin China
Brand Name MORITA
Model Number QR-XQY2
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy ±1% Test Speed 1mm/min
Frequency 50/60Hz Max Load Capacity 20000N
Power Supply Electric Display Digital
Voltage 110V/220V Usage To Test The Strength Of Moulding Sand
Warranty 1 Year Power Source AC
Rated Power 1000W
Highlight

moulding sand strength tester

,

intelligent sand tester

,

intelligent sand strength tester
You can tick the products you need and communicate with us in the message board.
Max testing force 20000N
compression strengh 0-10Mpa (standard sample Φ 50 * 50), 0-28Mpa (standard sample Φ 30 * 50)
tensile strengh 0-40 Mpa (standard sample waist 22.36 * 22.36), 0-80 Mpa (standard sample waist 22.36 * 11.18)
shearing strengh 0-8 Mpa (standard sample Φ 50 * 50), 0-13 Mpa (standard sample Φ 30 * 50)
bending strengh 0-400Mpa (standard sample 22.36 * 22.36 * 150), 0-640Mpa (standard sample 22.36 * 11.18 * 60)
display accuracy ±1.5%FS
rated power 1000W
power source AC220V/50Hz
Operating environment greenhouse, relative humidity ≤ 90%
Leave a Message
Max testing force 20000N
Product Description

The XQY-2 Intelligent Moulding Sand Strength Tester is designed for accurate testing of compressive strength, tensile strength, shear strength, and bending strength of high-strength moulding sand and resin sand. It adopts CNC mechanical loading and a high-precision digital control system to ensure reliable and consistent results for laboratory and industrial applications.

Key Features

  1. CNC Mechanical Loading

    • Stepper motor with worm gear reduction for precise and uniform loading.

    • Digital control via microcomputer with high-speed data display.

    • Vertical loading design to reduce testing errors and improve accuracy.

  2. Crosshead Fixture Mechanism

    • Easy sample placement and quick adjustment to minimize idle time.

    • Enhanced testing accuracy and smooth operation.

  3. High Precision Measurement

    • Equipped with high-precision S-type force sensors and a 4/2-bit A/D acquisition system.

    • Rapid data acquisition to capture peak destructive forces accurately.

  4. Data Storage & Power Failure Protection

    • Full data retention during shutdown or power outage.

    • Enables later display and printing for documentation.

  5. Efficient Printing Function

    • Supports direct output of test data via keyboard commands.

    • Can print average values for multiple test sets.

Specifications

Parameter Value
Max Testing Force 20,000 N
Compressive Strength 0–10 MPa (Φ50×50), 0–28 MPa (Φ30×50)
Tensile Strength 0–40 MPa (22.36×22.36), 0–80 MPa (22.36×11.18)
Shearing Strength 0–8 MPa (Φ50×50), 0–13 MPa (Φ30×50)
Bending Strength 0–400 MPa (22.36×22.36×150), 0–640 MPa (22.36×11.18×60)
Display Accuracy ±1.5% FS
Rated Power 1000 W
Power Supply AC 220V / 50 Hz
Operating Environment Greenhouse, RH ≤ 90%

Applications

  • Foundry sand quality testing

  • Resin sand strength evaluation

  • Metallurgical and casting industry research

  • Quality control in manufacturing processes

Why Choose the XQY-2?

Intelligent Moulding Sand Strength Tester (XQY-2) 0

  • Advanced CNC technology for precision and reliability

  • Vertical loading system minimizes testing errors

  • Integrated data storage and printing functions

  • Ideal for high-strength moulding sand and resin sand testing

  •
