Computer Intelligent High Temperature Performance Molding Sand Tester QR-HTS

  • Computer Intelligent High Temperature Performance Molding Sand Tester QR-HTS
Place of Origin China
Brand Name MORITA
Model Number QR-HTS
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compression Plate Stroke 50mm Power Supply AC 220V/50Hz
Load Accuracy ±1% Test Standards ASTM D 4292, ISO 2039-1
Sample Size (Diameter × Height) Φ30 × 50mm
Highlight

Computer sand tester

,

QR-HTS sand tester

,

QR-HTS sand testing equipment
You can tick the products you need and communicate with us in the message board.
Parameter Specification
Maximum Test Force 20KN (2T), Accuracy ≤ ±1% FS
Compressive Strength Range 0–28MPa, Accuracy ±1.0%
Deformation Measurement Range 0–±5mm, Resolution 0.01mm
Loading Speed 3.0–10mm/min (Automatic Control Available)
Sample Size (Diameter × Height) Φ30 × 50mm
Temperature Control Range Room Temperature – 1400°C
Working Temperature 1300°C (Short-term Heating: 1400°C)
Temperature Control Accuracy ±1°C
Furnace Diameter Φ50mm
Power Supply AC 220V ±10%, 50Hz, Power: 3kW
Furnace Power 2.5kW
Instrument Dimensions 500 × 320 × 1200mm
Usage Environment Room Temperature, Relative Humidity ≤90%
Leave a Message
Parameter Specification
Product Description

Product Introduction

The QR-HTS Computer Intelligent High-Temperature Performance Molding Sand Tester is an advanced testing instrument designed for scientific research institutions, engineering colleges, and industrial foundries. It is used to measure the high-temperature compressive strength, thermal expansion, thermal deformation, thermal stability, and residual strength of molding sand and inorganic non-metallic materials. With a temperature control range up to 1400 °C and high-precision force measurement, this tester ensures reliable performance evaluation of molding mixtures, directly influencing casting quality and preventing defects such as sand flushing, cracks, and inclusions.

Product Advantages

  1. Wide Testing Range – Measures compressive strength, thermal deformation, expansion force, and residual strength from room temperature to 1400 °C.

  2. Intelligent Control System – Uses a computer-controlled servo motor and automatic temperature compensation technology for precise and stable measurements.

  3. Advanced Data Management – Dynamic real-time data and curve display, unlimited storage, and PDF report output with archiving capability.

  4. High Measurement Accuracy – Utilizes 32-bit AD data acquisition, high-precision force and displacement sensors, ensuring ≤±1% FS accuracy.

  5. User-Friendly Interface – Operates on a Windows-based platform with intuitive controls, password protection, and customizable settings.

Applications

  • Scientific Research – For studying high-temperature properties of molding sand and optimizing material formulations.

  • Foundry Quality Control – Ensures sand strength and stability to prevent casting defects.

  • Educational Training – Used in engineering colleges for research and teaching purposes.

  • Industrial Production Guidance – Helps evaluate the relationship between high-temperature performance and casting quality.

Technical Specifications

Parameter Specification
Maximum Test Force 20 kN (2T), Accuracy ≤ ±1% FS
Compressive Strength 0–28 MPa, Indication Accuracy ±1.0%
Deformation Measurement Range 0 to ±5 mm, Resolution 0.01 mm
Loading Speed 3.0–10 mm/min (automatic control)
Sample Size Φ 30 × 50 mm
Temperature Control Range Room Temperature – 1400 °C
Working Temperature 1300 °C (short-term heating up to 1400 °C)
Temperature Accuracy ±1 °C
Heating Speed Automatic constant heating
Furnace Diameter Φ 50 mm
Power Supply AC 220V ±10%, 50 Hz
Power Consumption Total 3 kW (Furnace 2.5 kW)
Working Environment Room Temperature, RH ≤ 90%
Dimensions 500 × 320 × 1200 mm

Why Choose QR-HTS?

The QR-HTS High-Temperature Performance Molding Sand Tester combines high precision, intelligent control, and robust data processing capabilities to deliver superior testing performance. Whether for scientific research, production quality control, or educational applications, this instrument ensures accurate and reliable results. Its advanced software features, including curve analysis, unlimited storage, password protection, and report generation, make it an essential tool for modern materials testing and foundry research.

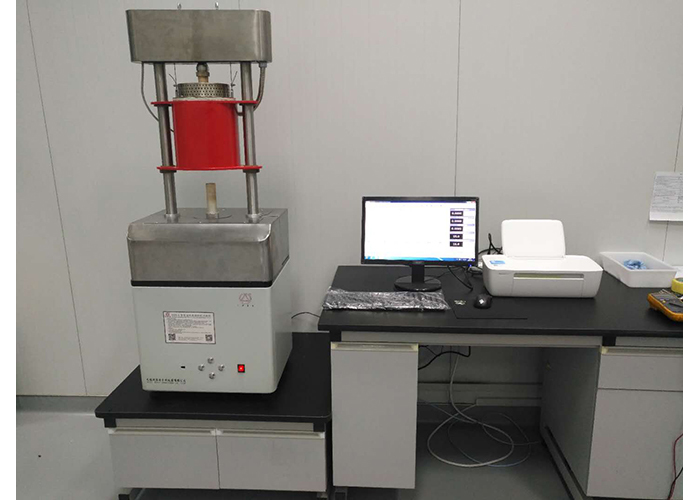

Computer Intelligent High Temperature Performance Molding Sand Tester QR-HTS 0
