QR-6 Full Spectrum Direct Reading Spectrometer Machine Precision For Material Grade

  • QR-6 Full Spectrum Direct Reading Spectrometer Machine Precision For Material Grade
Place of Origin China
Brand Name MORITA
Model Number QR-6
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 72 X 56 X 37 Cm Operating System Windows 10
Weight Approximately 65 Kg
Highlight

Direct Reading Spectrometer Machine

,

Full Spectrum Direct Reading Spectrometer Machine

,

Material Grade spectrometry machine
You can tick the products you need and communicate with us in the message board.
Detecting matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys
Detecting time Normally 25s
Optical Structure Paschen-Runge mount
Wavelength range 160nm-800nm
focal length 300mm
Detector International level detection module, high-performance linear array CCD
Electrode Tungsten Spray discharge electrode
analytical gap 3.5mm
working temperature 10℃-35℃
storge temperature 0℃-45℃
working moisture 20%-80%
Light source type New adjustable digital light source, high-performance pre ignition technology (HEPS)
discharge frequency 100-1000Hz
Discharge Current Max. 380A
Excitation table aperture 13mm
Light cell structure vacuum system
Argon Purity 99.999%, Argon pressure >0.5Mpa
Argon consumption 3.5L/min in sparking mode, 0.4L/min in maintaining mode
Dimension 720mm(L)*560mm(W)*370mm(H)
Weight About 65kg
Power AC220V/50Hz (Customized)
Leave a Message
Detecting matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys
Product Description

Product Introduction

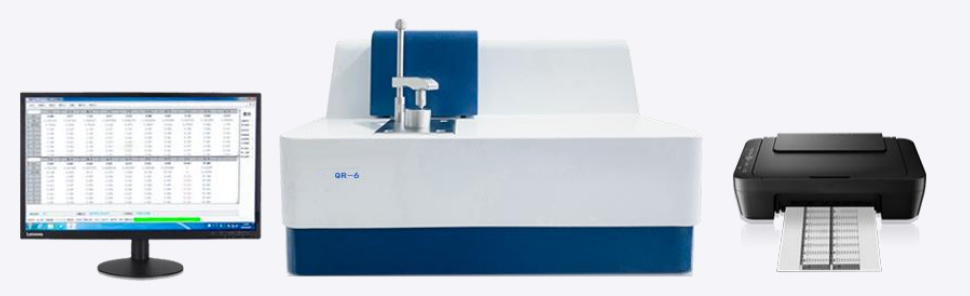

The QR-6 Full Spectrum Direct Reading Spectrometer (DRS) is a high-precision analytical instrument designed for material grade identification, quality control, and advanced material research. Featuring a high-performance linear CCD detector, the QR-6 delivers rapid and accurate elemental analysis, ensuring reliable results for industries where material verification is critical.

With a broad wavelength range of 160–800 nm, the QR-6 is capable of detecting a wide variety of elements in metals, alloys, and other industrial materials. Its fast 25-second detection time makes it ideal for high-throughput environments, while its robust design ensures long-term stability and repeatable performance.

Product Advantages

  1. High-Performance CCD Detector – Provides excellent sensitivity and accuracy for precise elemental analysis.

  2. Rapid Detection – Completes measurements in just 25 seconds, improving laboratory and production efficiency.

  3. Wide Wavelength Coverage (160–800 nm) – Enables detection of a broad range of elements, including light and heavy metals.

  4. Advanced Digital Technology – Replaces bulky traditional systems with a compact and efficient design.

  5. Excellent Repeatability – Ensures consistent results for material verification and quality monitoring.

  6. User-Friendly Operation – Simple software interface with powerful data management and reporting functions.

  7. Versatile Applications – Designed for material grade identification in multiple industrial sectors.

Applications

The QR-6 spectrometer is ideal for:

  • Material Grade Identification: Fast and reliable determination of metal grades for manufacturing and processing.

  • Quality Control in Industrial Production: Verification of raw materials and finished products to meet industry standards.

  • Research and Development: Detailed elemental analysis for alloy composition and advanced material projects.

  • Laboratory Testing: Comprehensive elemental detection for educational and scientific research institutions.

Specifications

Parameter Specification
Detection Time 25 seconds
Wavelength Range 160–800 nm
Detector High-Performance Linear CCD
Electrode Technology Tungsten Jet Electrode
Analytical Gap 3.5 mm
Sample Type Metals, Alloys, Industrial Materials
Excitation Aperture 13 mm
Light Source Type Adjustable Digital Light Source with HEPS
Discharge Frequency 100–1000 Hz
Discharge Current Max 380 A
Working Temperature 10–35 °C
Storage Temperature 0–45 °C
Working Moisture 20–80%
Dimension 720 mm (L) × 560 mm (W) × 370 mm (H)
Weight About 65 kg
Power AC 220V / 50Hz (customizable)

Why Choose the QR-6 Spectrometer?

  1. Precision: High-performance CCD detector ensures accurate identification of material grades.

  2. Speed: 25-second detection time allows rapid verification for industrial and laboratory use.

  3. Reliability: Delivers consistent results with low detection limits and excellent repeatability.

  4. Versatility: Suitable for a wide range of materials and industrial applications.

  5. Ease of Use: User-friendly software supports data analysis, reporting, and system diagnostics.

  6. Future-Proof Design: Combines modern digital technology with advanced optical performance for long-term value.

The QR-6 Full Spectrum Direct Reading Spectrometer is the ideal choice for industries and laboratories requiring precise material grade identification. With its high-performance CCD detector, broad 160–800 nm wavelength range, and rapid detection capability, it provides the accuracy and efficiency needed for quality control, material research, and industrial analysis.
