Full Spectrum Direct Reading Spectrometer Precision Analysis For Metal Smelting
| Place of Origin | China |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-6 |
| Minimum Order Quantity | 1 PC |
| Packaging Details | wooden case |
| Delivery Time | 15 days |
| Payment Terms | T/T |
| Supply Ability | 100 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 72 X 56 X 37 Cm | Operating System | Windows 10 |
|---|---|---|---|
| Weight | Approximately 65 Kg | ||
| Highlight | Full Spectrum direct reading spectrometer,Metal Smelting direct reading spectrometer,37cm spectrophotometer machine |
||
You can tick the products you need and communicate with us in the message board.
| Detecting matrix | Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys | |
|---|---|---|
| Detecting time | Normally 25s | |
| Optical Structure | Paschen-Runge mount | |
| Wavelength range | 160nm-800nm | |
| focal length | 300mm | |
| Detector | International level detection module, high-performance linear array CCD | |
| Electrode | Tungsten Spray discharge electrode | |
| analytical gap | 3.5mm | |
| working temperature | 10℃-35℃ | |
| storge temperature | 0℃-45℃ | |
| working moisture | 20%-80% | |
| Light source type | New adjustable digital light source, high-performance pre ignition technology (HEPS) | |
| discharge frequency | 100-1000Hz | |
| Discharge Current | Max. 380A | |
| Excitation table aperture | 13mm | |
| Light cell structure | vacuum system | |
| Argon Purity | 99.999%, Argon pressure >0.5Mpa | |
| Argon consumption | 3.5L/min in sparking mode, 0.4L/min in maintaining mode | |
| Dimension | 720mm(L)*560mm(W)*370mm(H) | |
| Weight | About 65kg | |
| Power | AC220V/50Hz (Customized) |
Product Description
Product Introduction

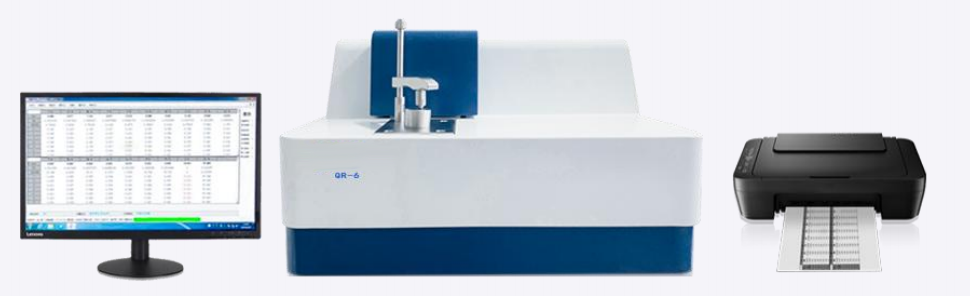

The QR-6 Full Spectrum Direct Reading Spectrometer (DRS) is a cutting-edge analytical instrument widely used in metal smelting and industrial quality monitoring. Designed for fast and reliable elemental analysis, the QR-6 delivers accurate results within 25 seconds, enabling high-throughput inspection and efficient workflow. Equipped with tungsten jet electrode technology, it provides stable plasma excitation and precise measurement for a wide range of metal samples. With a wavelength range of 160–800 nm, the QR-6 can detect multiple elements, making it an ideal solution for metal smelting quality control, alloy analysis, and material research.
Product Advantages
-
Rapid Measurement: Complete analysis in just 25 seconds, reducing production downtime and improving operational efficiency.
-
Advanced Tungsten Jet Electrode Technology: Ensures stable excitation, long electrode lifespan, and high measurement accuracy.
-
Broad Wavelength Range (160–800 nm): Supports detection of both light and heavy elements in metals and alloys.
-
High Sensitivity and Repeatability: Provides low detection limits and reliable results for quality control and R&D.
-
User-Friendly Operation: Simple interface reduces training time and allows operators to perform measurements efficiently.
-
Versatile Sample Handling: Capable of analyzing diverse sample sizes and shapes, including wires, ingots, and castings.
-
Safety and Environmental Considerations: Optimized gas paths reduce metal dust exposure, protecting operators while lowering argon consumption.
Applications
The QR-6 Full Spectrum DRS is ideal for:
-
Metal Smelting Quality Control: Real-time monitoring of chemical composition during alloy production.
-
Alloy and Metal Analysis: Determination of elemental concentrations for process optimization.
-
Industrial Material Research: Comprehensive elemental analysis for R&D in metals and alloys.
-
Laboratory Testing: Advanced material characterization for research institutes and industrial laboratories.
Specifications
| Parameter | Specification |
|---|---|
| Detection Time | 25 seconds |
| Wavelength Range | 160–800 nm |
| Electrode Technology | Tungsten Jet Electrode |
| Detector | High-performance CCD |
| Analytical Gap | 3.5 mm |
| Sample Type | Metals, Alloys, Industrial Castings |
| Excitation Aperture | 13 mm |
| Light Source Type | Adjustable digital light source with HEPS |
| Discharge Frequency | 100–1000 Hz |
| Discharge Current | Max 380 A |
| Working Temperature | 10–35 °C |
| Storage Temperature | 0–45 °C |
| Working Moisture | 20–80% |
| Dimension | 720 mm (L) × 560 mm (W) × 370 mm (H) |
| Weight | About 65 kg |
| Power | AC 220V / 50Hz (customizable) |
Why Choose the QR-6 Spectrometer?
-
Efficiency: Fast analysis in 25 seconds reduces production delays and enhances quality monitoring.
-
Precision: Tungsten jet electrode technology and CCD detection ensure high accuracy, repeatability, and low detection limits.
-
Versatility: Wide wavelength range and flexible sample handling accommodate various metals and alloys.
-
Reliability: Designed for long-term stability in industrial environments.
-
Safety: Optimized excitation system and gas paths protect operators from metal dust exposure.
-
Future-Ready Technology: Fully digital design with advanced software supports modern laboratory and industrial workflows.
The QR-6 Full Spectrum Direct Reading Spectrometer is the preferred instrument for metal smelting operations, industrial laboratories, and R&D centers that require fast, accurate, and reliable elemental analysis. Its advanced tungsten jet electrode technology, broad 160–800 nm wavelength range, and rapid 25-second detection time make it an indispensable tool for improving efficiency, ensuring product quality, and supporting innovation in metal manufacturing and processing.
