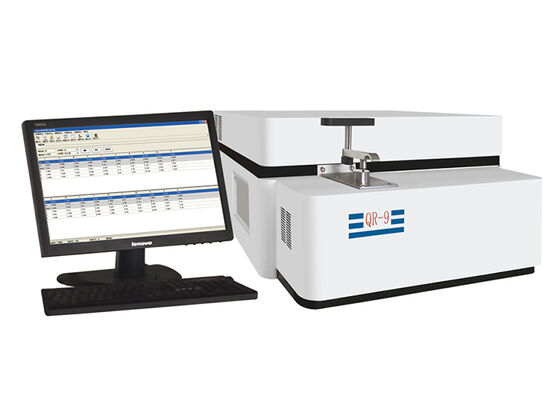

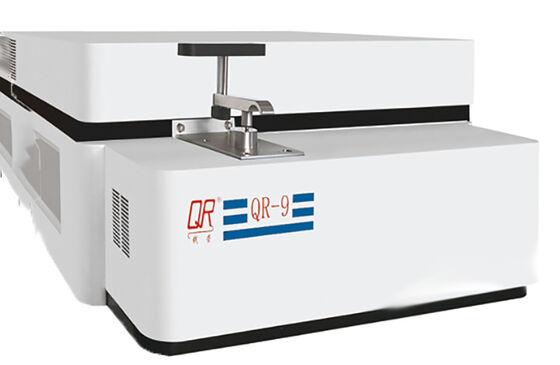

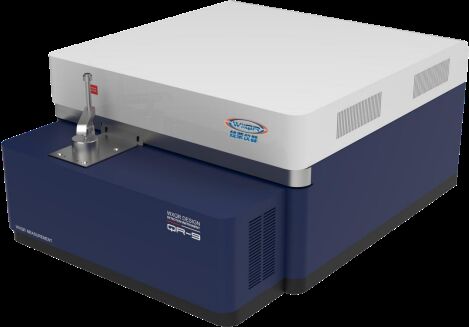

Full Spectrum Direct Reading Optical Emission Spectrometer For Fast And Accurate Elemental Analysis

  • Full Spectrum Direct Reading Optical Emission Spectrometer For Fast And Accurate Elemental Analysis
  • Full Spectrum Direct Reading Optical Emission Spectrometer For Fast And Accurate Elemental Analysis
  • Full Spectrum Direct Reading Optical Emission Spectrometer For Fast And Accurate Elemental Analysis
Place of Origin China
Brand Name MORITA
Model Number QR-9
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating System Windows 10 Power Requirements 220V, 50/60Hz
Detector Type CCD Model QR-9 Spectrometer
Highlight

Full Spectrum optical emission spectrometry analysis

,

CCD optical emission spectrometry analysis

,

QR-9 fluorescence spectroscopy machine
You can tick the products you need and communicate with us in the message board.
Detecting matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys
Detecting time Normally 25s
Optical Structure Paschen-Runge mount
Wavelength range 130nm-800nm
Detector High resolution CCD Multi detectors
Electrode Tungsten Spray discharge electrode
working temperature 10℃-35℃
working moisture 20%-80%
Excitation table aperture 13mm
Light cell structure vacuum system
Argon Purity 99.999%, Argon pressure >0.5Mpa
Argon consumption 3.5L/min in sparking mode, 0.4L/min in maintaining mode
Dimension 860mm(L)*660mm(W)*360mm(H)
Weight About 80kg
Power AC220V/50Hz (Customized)
Leave a Message
Detecting matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys
Product Description

QR-9 Full-Spectrum Direct-Reading Optical Emission Spectrometer For Fast And Accurate Elemental Analysis Of Metals And Alloys



The QR-9 Full-Spectrum Direct-Reading Optical Emission Spectrometer (OES) is a high-performance instrument designed for rapid and precise elemental analysis of metals and alloys in the metal manufacturing industry. With a detection time of only 25 seconds and a wavelength range of 30–800 nm, it ensures fast, reliable, and accurate measurement of both major and trace elements, supporting quality control, material classification, and research applications.

Product Introduction

QR-9 combines full-spectrum direct-reading technology with a high-resolution CCD detector, enabling the simultaneous measurement of multiple elements. The spectrometer employs vacuum optical chamber design and a full-digital excitation light source, ensuring low detection limits, excellent repeatability, and long-term stability. It is specifically optimized for metal manufacturers who require quick and accurate compositional analysis for production and quality assurance.

Key Advantages

  • Rapid Detection – Complete elemental analysis in just 25 seconds, enhancing workflow efficiency.

  • Wide Wavelength Range – Measures elements across 30–800 nm, covering major and trace elements in metals and alloys.

  • High Precision & Stability – CCD detector ensures accurate, reproducible results with long-term reliability.

  • User-Friendly Operation – Digital system simplifies setup, measurement, and data handling.

  • Cost-Effective & Efficient – Reduces testing time and operational costs while maintaining high analytical performance.

Technical Specifications

Parameter Specification
Instrument Type Full-Spectrum Direct-Reading OES
Detection Time 25 seconds
Wavelength Range 30–800 nm
Detector High-resolution CCD detector
Excitation Source Digital excitation light source
Optical Chamber Vacuum design for stable measurement
Applicable Materials Metals and alloys
Power Supply AC220V/50Hz (customizable)
Weight ~80 kg
Dimensions 860 mm (L) × 660 mm (W) × 360 mm (H)

Applications

Full Spectrum Direct Reading Optical Emission Spectrometer For Fast And Accurate Elemental Analysis 0

  • Metal Manufacturing Quality Control – Ensures metal and alloy compositions meet production specifications.

  • Material Classification – Identifies grades of ferrous and non-ferrous metals.

  • Research & Development – Supports development of new alloys and material optimization.

  • Industrial Laboratories – Fast and accurate testing for large-scale production environments.

  •
