Economic High Frequency Infrared Carbon Sulfur Analyzer For Inorganic Material Testing

  • Economic High Frequency Infrared Carbon Sulfur Analyzer For Inorganic Material Testing
  • Economic High Frequency Infrared Carbon Sulfur Analyzer For Inorganic Material Testing
Place of Origin China
Brand Name MORITA
Model Number QR-9000
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Analysis Time Carbon: 20-60 Seconds, Sulfur: 20-60 Seconds Measurement Accuracy Carbon: +/- 0.0001%, Sulfur: +/- 0.0001%
Accuracy 0.01PPM Operating Temperature 10-30 Degrees Celsius
Measurement Range Carbon: 0.0001%-10%, Sulfur: 0.0001%-5% Detection Method Infrared Absorption Method
Storage Temperature -20-50 Degrees Celsius Power Supply AC 220V/50Hz
Highlight

High Frequency Carbon Sulfur Analyzer

,

Infrared Carbon Sulfur Analyzer

,

Economic carbon sulfur analysis
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

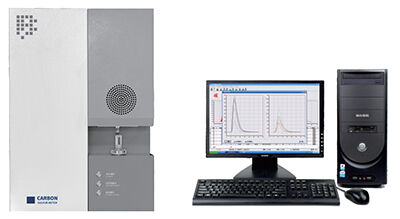

Economic High-Frequency Infrared Carbon-Sulfur Analyzer For Inorganic Material Testing QR-9000



The Economic High-Frequency Infrared Carbon-Sulfur Analyzer is a precise and reliable instrument designed for measuring carbon (C) and sulfur (S) content in inorganic materials. With a sensitivity of 0.01PPM, a carbon measurement range of 0.00001%–10.00%, and a sulfur range of 0.00001%–5.00%, it provides fast and accurate results for laboratories and industrial testing environments, ensuring material quality and compliance with standards.

Product Introduction

Accurate detection of carbon and sulfur is essential in the analysis of inorganic compounds, including salts, minerals, oxides, and industrial raw materials. This analyzer integrates high-frequency combustion technology with infrared detection, enabling precise, repeatable, and stable measurements. Its cost-effective design allows laboratories and research centers to maintain high analytical performance while managing operational budgets effectively.

Key Advantages

  • High Sensitivity & Precision – Detects trace amounts of carbon and sulfur with 0.01PPM accuracy for reliable analysis of inorganic materials.

  • Rapid Results – Delivers measurement outcomes within 25–60 seconds (average 35 seconds), improving laboratory efficiency.

  • User-Friendly Software – Windows-based platform with data logging, statistical analysis, and real-time result monitoring.

  • Cost-Efficient Design – Provides advanced analytical capabilities at an affordable price for industrial and research applications.

Technical Specifications

Parameter Specification
Measurement Elements Carbon (C) and Sulfur (S)
Carbon Range 0.00001% – 10.00%
Sulfur Range 0.00001% – 5.00%
Sensitivity 0.01PPM
Analytical Precision C ≤ RSD 0.5%; S ≤ RSD 1.0%
Analysis Time 25–60 seconds (average 35 seconds)
Operating Temperature 10°C – 30°C
Relative Humidity ≤75%
Power Supply AC220V ±5%, 50Hz ±2%

Applications

  • Inorganic Material Analysis – Measures carbon and sulfur in salts, oxides, and mineral samples.

  • Industrial Quality Control – Ensures raw materials meet production specifications.

  • Research & Development – Supports material formulation and inorganic compound research.

  • Laboratory Testing – Provides precise and fast elemental analysis for educational and industrial labs.
