0.01PPM Infrared Carbon And Sulphur Analyser For Commodity Inspection Departments

  • 0.01PPM Infrared Carbon And Sulphur Analyser For Commodity Inspection Departments
  • 0.01PPM Infrared Carbon And Sulphur Analyser For Commodity Inspection Departments
Place of Origin China
Brand Name MORITA
Model Number QR-9000
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Analysis Time Carbon: 20-60 Seconds, Sulfur: 20-60 Seconds Measurement Accuracy Carbon: +/- 0.0001%, Sulfur: +/- 0.0001%
Accuracy 0.01PPM Operating Temperature 10-30 Degrees Celsius
Measurement Range Carbon: 0.0001%-10%, Sulfur: 0.0001%-5% Detection Method Infrared Absorption Method
Storage Temperature -20-50 Degrees Celsius Power Supply AC 220V/50Hz
Highlight

0.01PPM carbon and sulphur analyser

,

Infrared carbon and sulphur analyser

,

220V carbon sulphur analyzer
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

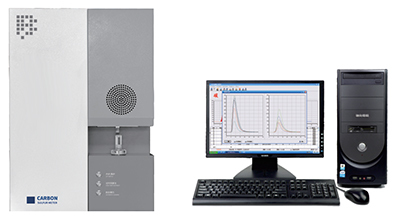

Economic High-Frequency Infrared Carbon-Sulfur Analyzer For Commodity Inspection Departments QR-9000



The Economic High-Frequency Infrared Carbon-Sulfur Analyzer is a precision instrument widely used in commodity inspection departments to ensure accurate measurement of carbon (C) and sulfur (S) content in various industrial materials. With a sensitivity of 0.01PPM, a carbon measurement range of 0.00001%–10.00%, and a sulfur range of 0.00001%–5.00%, it provides reliable and reproducible results for regulatory compliance and quality assurance.

Product Introduction

Commodity inspection departments require fast and accurate elemental analysis to certify raw materials, finished products, and imported/exported goods. This analyzer combines high-frequency combustion technology with infrared detection, delivering precise measurements for metals, alloys, and other industrial samples. Its cost-effective design ensures high performance without exceeding departmental budgets, making it ideal for large-scale inspection tasks.

Key Advantages

  • High Sensitivity & Precision – Detects ultra-low carbon and sulfur concentrations with 0.01PPM accuracy.

  • Rapid Analysis – Provides results within 25–60 seconds, enhancing inspection efficiency.

  • User-Friendly Operation – Windows-based software allows data tracking, statistical analysis, and result correction.

  • Cost-Effective Design – High-precision analysis at an affordable price, suitable for government and commercial inspection labs.

Technical Specifications

Parameter Specification
Measurement Elements Carbon (C) and Sulfur (S)
Carbon Range 0.00001% – 10.00%
Sulfur Range 0.00001% – 5.00%
Sensitivity 0.01PPM
Analytical Precision C ≤ RSD 0.5%; S ≤ RSD 1.0%
Analysis Time 25–60 seconds (average 35 seconds)
Operating Temperature 10°C – 30°C
Relative Humidity ≤75%
Power Supply AC220V ±5%, 50Hz ±2%

Applications

  • Commodity Inspection & Certification – Verifies carbon and sulfur content in raw materials and finished goods.

  • Import/Export Quality Control – Ensures compliance with international material standards.

  • Industrial Material Testing – Evaluates metals, alloys, and other industrial products for regulatory compliance.

  • Research & Analysis – Supports laboratories in quality verification and material assessment.
