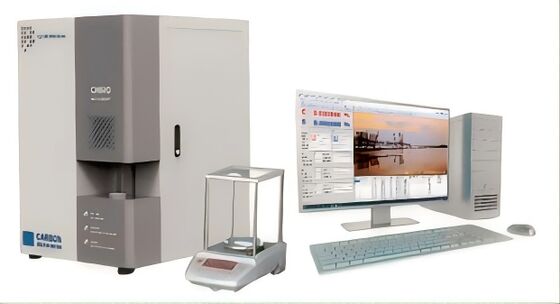

High Frequency Infrared Carbon And Sulfur Analyzer 0.001% - 100% Measurement Range

  • High Frequency Infrared Carbon And Sulfur Analyzer 0.001% - 100% Measurement Range
Place of Origin China
Brand Name MORITA
Model Number QR-9000S
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sample Type Solid, Liquid, Gas Operating Temperature 10°C - 35°C
Measurement Range 0.001% - 100% Dimensions 600mm X 500mm X 400mm
Sample Weight 0.1 - 1g Detection Method Infrared Absorption Method
Repeatability ≤0.0005% Accuracy ±0.001%
Weight 45kg Power Supply AC 220V/50Hz
Analysis Time Less Than 3 Minutes Resolution 0.0001%
Highlight

High Frequency carbon and sulfur analyzer

,

Infrared carbon and sulfur analyzer

,

100% carbon sulphur analyser
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

The QR-9000S Intelligent High-Frequency Infrared Carbon and Sulfur Analyzer is a cutting-edge solution designed for precise and rapid analysis of carbon (C) and sulfur (S) content in various samples, particularly in the coal industry. This high-performance analyzer operates with an analytical precision of ≤ RSD 0.5% for carbon and ≤ RSD 1.0% for sulfur, ensuring reliable results for quality control and monitoring.

Key Features and Benefits

  • Fast and Accurate Analysis: With an analysis time ranging from 25 to 60 seconds, the QR-9000S delivers fast results without compromising accuracy, making it ideal for high-throughput environments.

  • Highly Sensitive: The analyzer has a sensitivity of 0.1 PPM, ensuring the detection of even trace amounts of carbon and sulfur.

  • Advanced Infrared Detection: Featuring a platinum infrared light source and high-precision pyroelectric infrared detector, the QR-9000S guarantees stable spectral characteristics and enhanced analysis reliability.

  • User-Friendly Interface: The integrated software offers a bilingual (Chinese and English) interface for easy operation. It also provides dynamic data integration, with real-time monitoring of carbon and sulfur release curves.

  • Customizable and Automatic Operation: The analyzer can automatically switch between four physical detection pools and features signal tracking for automatic adjustment. This minimizes the need for manual intervention and increases operational efficiency.

  • Energy-Efficient: With a highly efficient high-frequency combustion system and a power range of 2.5-7.5 kVA, the QR-9000S optimizes energy use while ensuring consistent performance.

Applications

The QR-9000S Carbon and Sulfur Analyzer is predominantly used in the coal industry for quality control and testing purposes. It helps ensure that coal meets the required specifications by accurately determining the content of carbon and sulfur in the material. This is essential for environmental compliance, as sulfur levels in coal can affect combustion efficiency and emissions. Additionally, this analyzer is used in mining, petrochemical industries, and material science research, where precise composition analysis is crucial.

Advantages

  • Precision and Reliability: Meets national and international standards (JJG395-2016, ISO9556 for carbon, ISO4935 for sulfur).

  • Cost-Effective: By reducing downtime and enhancing throughput, the QR-9000S helps organizations reduce operational costs.

  • Robust Design: With features such as a gold-plated analysis cell and a high-frequency combustion system, the QR-9000S ensures long-lasting durability even in challenging environments.

  • Seamless Integration: The analyzer supports data exchange with computers, printers, and electronic scales, facilitating seamless integration into production lines.

Technical Specifications

Specification Value
Measurement Element C and S
Measurement Range C: 0.000001% – 99.999999% (expandable)
  S: 0.000001% – 99.999999% (expandable)
Analytical Precision C: ≤ RSD 0.5%, S: ≤ RSD 1.0%
Sensitivity 0.1 PPM
Analysis Time 25-60s (typically 35s)
Oscillation Frequency 20 MHz
Burning Power 2.5 KVA – 7.5 KVA (adjustable)
Working Environment 10°C – 30°C, 75% relative humidity
Voltage AC220V ± 5%, Frequency: 50Hz ± 2%
Communication USB data exchange technology

Conclusion

The QR-9000S High-Frequency Infrared Carbon and Sulfur Analyzer is an indispensable tool for any industry requiring precise carbon and sulfur analysis. Whether used in coal quality control or other industrial applications, its fast analysis time, high sensitivity, and reliable performance make it an invaluable asset to any laboratory or production environment.
