Nuclear Industry Applications High Frequency Infrared Carbon And Sulfur Analyzer

  • Nuclear Industry Applications High Frequency Infrared Carbon And Sulfur Analyzer
Place of Origin China
Brand Name MORITA
Model Number QR-9000S
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

infrared carbon and sulfur analyzer

,

infrared carbon sulfur analyzer
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

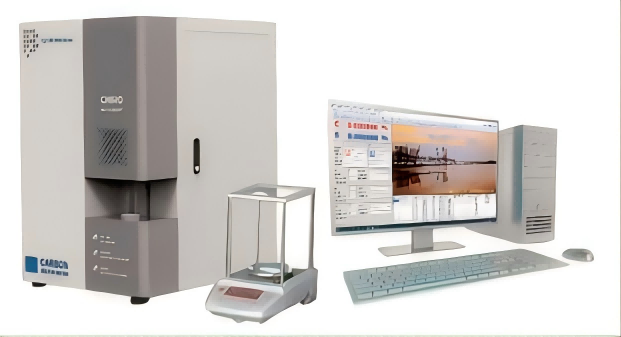

The QR-9000S High-Frequency Infrared Carbon and Sulfur Analyzer is a precision analytical instrument specifically designed for accurate determination of carbon (C) and sulfur (S) content in raw materials used in the nuclear industry. With an ultra-high sensitivity of 0.1 PPM, it delivers reliable results to ensure compliance with strict safety and quality standards.

Applications

Quality inspection of nuclear-grade metals and alloys used in reactor construction and fuel processing

Analysis of graphite, zirconium, uranium compounds, and other critical materials for nuclear applications

Research and development in nuclear materials laboratories to ensure elemental purity

Monitoring raw material quality in fuel rod manufacturing and reactor component production

Key Advantages

Ultra-High Sensitivity: Detects carbon and sulfur content at levels as low as 0.1 PPM for precise quality assessment.

High Analytical Precision: Carbon ≤RSD 0.5%; Sulfur ≤RSD 1.0% for consistent measurement reliability.

Wide Measurement Range: C: 0.000001%–99.999999%; S: 0.000001%–99.999999%.

Fast Testing: Delivers accurate results in 25–60 seconds, supporting high-efficiency laboratories.

Advanced Infrared Detection: Features a gold-plated analysis cell, platinum infrared light source, and high-precision pyroelectric infrared detector for long-term stability.

Intelligent Operation: Automatic signal tracking, data storage, and release curve comparison for optimized analysis performance.

Robust Design: High-frequency combustion system with automatic cleaning ensures accurate results with minimal downtime.

Specifications
Parameter Specification
Measurement Elements Carbon (C) and Sulfur (S)
Measurement Range C: 0.000001%–99.999999%; S: 0.000001%–99.999999%
Analytical Precision C: ≤RSD 0.5%; S: ≤RSD 1.0%
Sensitivity 0.1 PPM
Analysis Time 25–60 seconds (typically 35s)
Oscillation Frequency 20 MHz
Burning Power 2.5 kVA–7.5 kVA (adjustable)
Working Environment Temperature: 10–30°C; Humidity: ≤75%
Voltage AC220V±5%, 50Hz±2%
Why QR-9000S for Nuclear Industry Applications?

The QR-9000S ensures extreme accuracy, ultra-low detection limits, and high reliability, making it ideal for nuclear-grade material testing. Its intelligent software, robust design, and high sensitivity help laboratories meet the most demanding nuclear safety and quality standards.
