New Energy Materials High Frequency Infrared Carbon And Sulfur Analyzer

  • New Energy Materials High Frequency Infrared Carbon And Sulfur Analyzer
Place of Origin China
Brand Name MORITA
Model Number QR-9000S
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Sample Weight 0.1g - 1g
Power Supply AC 220V/50Hz Communication Interface RS232
Measurement Range Carbon: 0.0001% - 6.0000%, Sulfur: 0.0001% - 3.0000% Software Included
Measurement Method Infrared Absorption Method
Highlight

infrared carbon and sulfur analyzer

,

infrared carbon sulfur analyzer

,

220v carbon sulfur analyzer
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

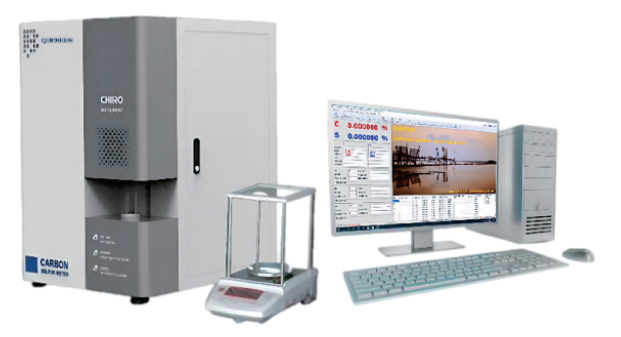

The QR-9000S High-Frequency Infrared Carbon and Sulfur Analyzer is an advanced precision instrument designed to measure carbon (C) and sulfur (S) content in new energy materials and related raw inputs. With an ultra-wide measurement range of C: 0.000001%–99.999999% and S: 0.000001%–99.999999%, it provides high-accuracy analysis to ensure material quality and compliance with international standards.

Applications

Quality control of lithium battery materials (e.g., cathodes, anodes, electrolytes)

Analysis of rare earth metals and alloys used in energy storage and conversion

Testing semiconductor materials and superconductors

Evaluation of advanced composites for electric vehicles, solar panels, and hydrogen fuel cells

Key Advantages

Ultra-Wide Measurement Range: Detects trace to high-level carbon and sulfur with extreme precision.

High Analytical Precision: Carbon ≤RSD 0.5%; Sulfur ≤RSD 1.0%; Sensitivity: 0.1 PPM.

Rapid Testing: Delivers results in 25–60 seconds, ensuring high efficiency for production and R&D lines.

Intelligent Data System: Automatic curve storage, dynamic signal tracking, and real-time comparison of carbon and sulfur release.

Stable & Reliable Performance: Modular circuit design, advanced infrared detection, and high-frequency combustion ensure long-term stability.

User-Friendly Operation: Integrated software with statistical analysis, system diagnostics, and multilingual interface for global use.

Specifications
Parameter Specification
Measurement Elements Carbon (C) and Sulfur (S)
Measurement Range C: 0.000001%–99.999999%; S: 0.000001%–99.999999%
Analytical Precision C: ≤RSD 0.5%; S: ≤RSD 1.0%
Sensitivity 0.1 PPM
Analysis Time 25–60 seconds (typically 35s)
Oscillation Frequency 20 MHz
Burning Power 2.5 kVA–7.5 kVA (adjustable)
Working Environment Temperature: 10–30°C; Humidity: ≤75%
Voltage AC220V±5%, 50Hz±2%
Why QR-9000S for New Energy Applications?

The QR-9000S ensures high-precision carbon and sulfur analysis in raw materials critical for energy storage, renewable energy, and high-tech manufacturing. Its fast, accurate, and reliable results help manufacturers maintain strict quality standards and achieve superior product performance.
