220V Intelligent Computer Molding Materials Gas Evolution Tester QR-GET2000A
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-GET2000A |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Range | 0-200 Ml | Temerature Accuracy | ±1℃ |
|---|---|---|---|
| Moisture | 85% | Power Supply | 220V, 50Hz |
| Operating System | Windows 10 | Rated Power | 4 KW |
| Highlight | 220V Gas Evolution Tester,200ml Gas Evolution Tester,gas evolution tester 200ml |
||
You can tick the products you need and communicate with us in the message board.
| measuring range | 0-200ml, accuracy: ±1.5% | |
|---|---|---|
| temperature of pyrolysis furnace | 600-1200℃, accuracy:±1℃ | |
| temperature of measurement system | 0-120℃, accuracy:±1℃ | |
| temperature of working condition | -5-45℃ | |
| humidity of working condition | ≦85% | |
| timing range | 120min, can be set up arbitrarily | |
| rated power | 4KW | |
| power source | AC220V/50HZ |
Product Description

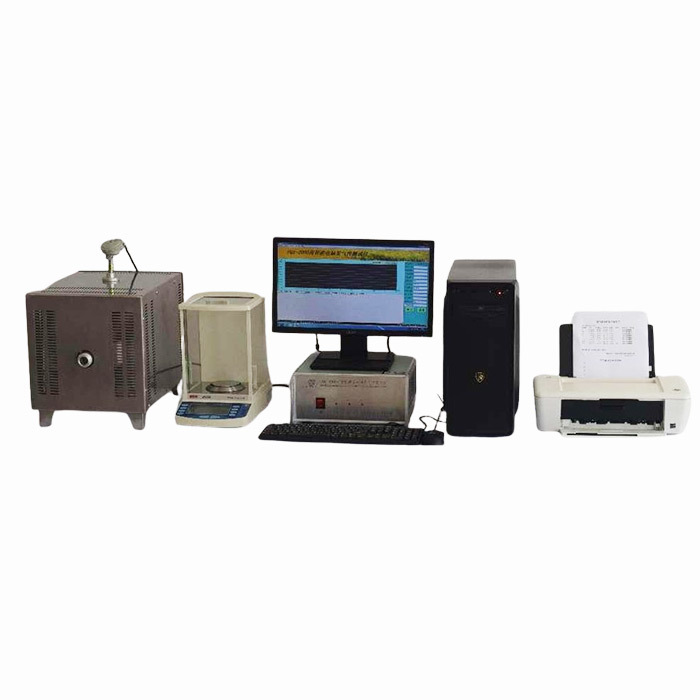

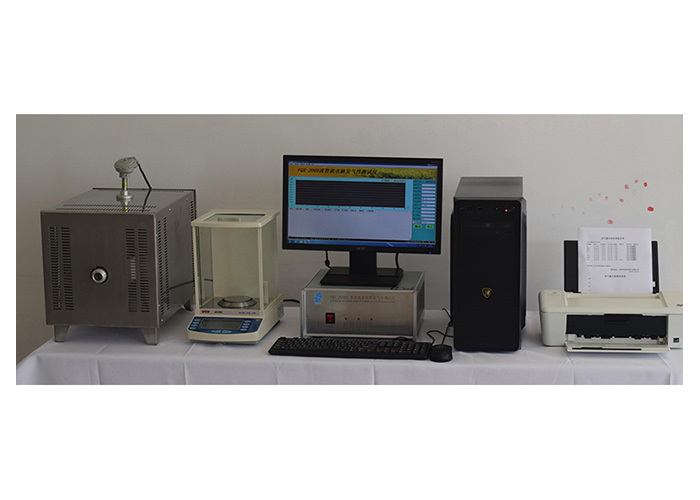

Intelligent Computer Molding Materials Gas Evolution Tester QR-GET2000A
The QR-GET2000A is a fully computer-controlled intelligent detection instrument designed for the casting industry, utilizing advanced electronic, computer, and sensing technologies to measure gas emission performance of molding materials.
Advanced Gas Emission Analysis
This precision instrument employs gas pressure measurement principles to automatically determine various technical parameters of gas generation characteristics. The system dynamically displays gas generation curves and the complete gas evolution process in real-time, with comprehensive data analysis and reporting capabilities.
Key Applications
Essential for testing gas generation performance of:
- Casting sand, clay sand, and resin sand
- Coated sand and coatings
- Effective coal powder content in molding sand
Critical for preventing casting defects such as porosity, sand erosion, and sand sticking by ensuring optimal gas generation properties during metal pouring operations.
Instrument Features
- Windows OS with intuitive interface and color display
- 24-bit high-precision A/D data processing system
- Real-time data visualization and unlimited data storage
- Electronic balance integration for precise sample measurement
- Automatic temperature monitoring and compensation
- High-precision pressure sensors for reliable data collection
- Constant temperature measurement system (105°C)
- Comprehensive database for historical data analysis
- Offline computer operation capability
Technical Specifications
| Measurement Range | 0-200ml (adjustable) |
| Measurement Accuracy | ±1.5% |
| Decomposition Furnace Temperature | Room temperature to 1300°C (±1°C) |
| Measurement System Temperature | Room temperature to 120°C (±1°C) |
| Timing Range | Adjustable based on gas generation |
| Operating Environment | -5°C to 45°C, 85% humidity |
| Power Requirements | ≤4kW, AC220V ±10%, 50Hz |
| Computer Configuration | 2GB RAM, 500GB HDD, 19" monitor |
| Printer | HP1112 color inkjet printer |
Quality Assurance Benefits
Regular testing with the QR-GET2000A helps reduce casting scrap rates, optimize material usage, and improve surface quality. The instrument is particularly valuable for complex castings like automotive engine blocks and cylinder heads where gas generation control is critical.
