3000W Sand Air Permeability Tester With Direct Reading Air Permeability Test Equipment
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-STZ |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Accuracy | ±1% | Dimensions | 400mm X 300mm X 500mm |
|---|---|---|---|
| Sample Size | ɸ50mm*50mm | Display | LCD |
| Air Pressure Range | 981Pa | Air Permeability Range | 0-2450FS |
| Power Supply | 3000W | ||
| Highlight | 3000W Sand Air Permeability Tester,Direct Reading Sand Air Permeability Tester,3kw air permeability test equipment |
||
You can tick the products you need and communicate with us in the message board.
| sample size | ɸ50mm*50mm | |
|---|---|---|
| air source pressure | 981Pa±5Pa(100mmH2O） | |
| air hole size | large hole: 1.5mm, small hole: 0.5mm | |
| air permeability | 0-2450, ±1%FS | |
| power source | AC220V/50Hz, 3KW | |
| enviroment condition | greenhouse, relative humidity: ≦90%(no ondensation) |
Product Description

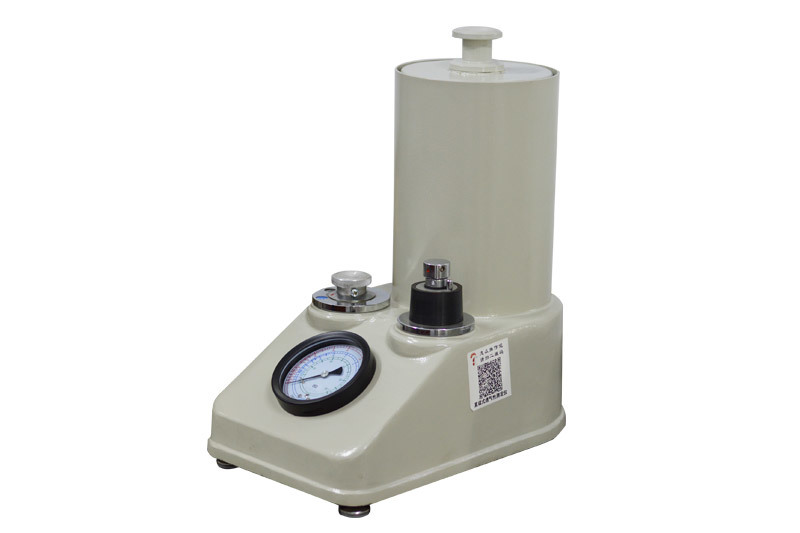

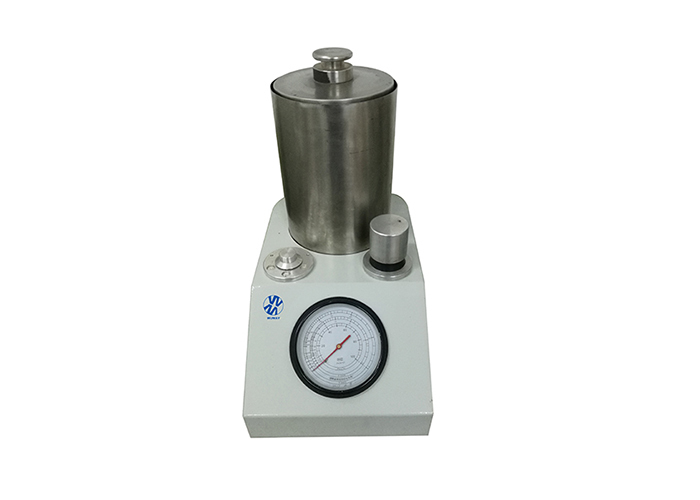

Measure The Air Permeability Of Moulding Sand And Core Sand With Direct Reading Air Permeability Tester QR-STZ
Product Overview
The Direct Reading Air Permeability Tester (STZ) is designed to measure the air permeability of moulding sand and core sand in both dry and wet conditions, providing accurate results for quality control in industrial applications.
Technical Specifications
| Sample Size | 50mm × 50mm |
| Air Source Pressure | 981Pa ±5Pa (100mmH2O) |
| Air Hole Size | Large hole: 1.5mm, Small hole: 0.5mm |
| Air Permeability Range | 0-2450, ±1% FS |
| Power Source | AC220V/50Hz, 3KW |
| Environment Conditions | Greenhouse, relative humidity: ≤90% (no condensation) |
Key Features
- Equipped with electronic frequency modulation speed regulation motor for precise control
- Clear display via instrument board for easy reading of measurements
Applications
This tester is widely used in foundries, machinery manufacturing, casting processes, quality inspection departments, scientific research institutions, and university laboratories.
