Resin Sand High Temperature Performance Sand Strength Testing Machine QR-ZGY

  • Resin Sand High Temperature Performance Sand Strength Testing Machine QR-ZGY
Place of Origin CHINA
Brand Name MORITA
Model Number QR-ZGY
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Range 0-4.5 MPa Display Type Digital
Humidity Range 20-80% Test Method Compression
Sample Size Ø12 × 20 Mm (Other Sizes Possible; Diameter ≤ 25 Mm; Height Adjustable Via Limit Switch) Accuracy ±1%
Power Supply Electric Test Speed 1mm/min
Operating Temperature 10-40℃
Highlight

High Temperature Sand Strength Testing Machine

,

QR-ZGY Sand Strength Testing Machine

,

Electric sand strength machine
You can tick the products you need and communicate with us in the message board.
High-Temperature Compressive Strength Range:  0–4.5 MPa (Accuracy ±1% FS)
Restricted Thermal Expansion Force Range:  0–500 N (Accuracy ±1% FS)
Conditional Thermal Stability Range:  0–300 s (Accuracy ±1 s)
High-Temperature Expansion Rate:  0–10%
Operating Temperature Range:  500–1200 °C
Sample Size:  Ø12 × 20 mm (Other sizes possible; diameter ≤ 25 mm; height adjustable via limit switch)
Working Voltage:  AC 220 V / 50 Hz
Leave a Message
High-Temperature Compressive Strength Range:  0–4.5 MPa (Accuracy ±1% FS)
Product Description

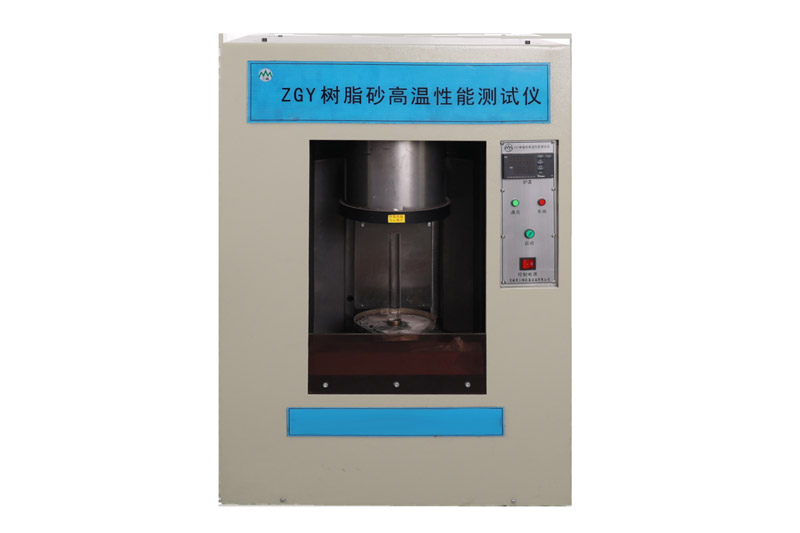

Resin Sand High-temperature Performance Tester QR-ZGY
Instrument Testing Capabilities
  • High temperature compressive strength: Measures immediate strength of resin sand samples after high-temperature insulation, reflecting performance during pouring (MPa).
  • Conditional thermal stability: Determines duration resin sand maintains strength under specific temperature and load conditions (seconds).
  • Restricted thermal expansion force: Measures load required to maintain specimen length at high temperatures, indicating internal stress generation (N).
  • High temperature expansion rate: Calculates percentage of linear change after free expansion at high temperature.
Instrument Specifications
Parameter Range Accuracy
High temperature compressive strength 0-4.5MPa ±1% of full range
Limited thermal expansion force 500N ±1% of full range
Conditional thermal stability 300s 1s
High temperature expansion rate 0-10% -
Technical Parameters
  • Working voltage: AC220V50Hz
  • Sample size: Ø12×20mm (customizable up to Ø25mm)
  • Operating temperature: 500-1200℃
Included Components
  • Resin sand thermal stability test sample molds (1 set)
  • Laminated sand prototype (high-temperature sample)

             Resin Sand High Temperature Performance Sand Strength Testing Machine QR-ZGY 0
