Horizontal Digital Hydraulic Sand Strength Machine QR-SWY
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-SWY |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Load Capacity | 2800N | Humidity Range | 20-90% RH |
|---|---|---|---|
| Testing Speed | 3-10mm/min | Power Supply | 220V/50Hz |
| Operating Temperature | 10-40℃ | Accuracy | ±1% |
| Warranty | 1 Year | Display | Digital LCD |
| Highlight | horizontal sand strength machine,horizontal sand strength testing machine,220v sand strength machine |
||
You can tick the products you need and communicate with us in the message board.
| Measurement methods | compressive strength | tensile strength | shear strength | bending strength | |
|---|---|---|---|---|---|
| Measurement range, standard | 0-1.5 MPa | 0-6 MPa | 0-1.2 MPa | 0-60 MPa | |
| Measurement range, non-standard | 0-5.1 MPa | 0-14.4MPa | 0-2.4 MPa | 0-108 MPa |
Product Description

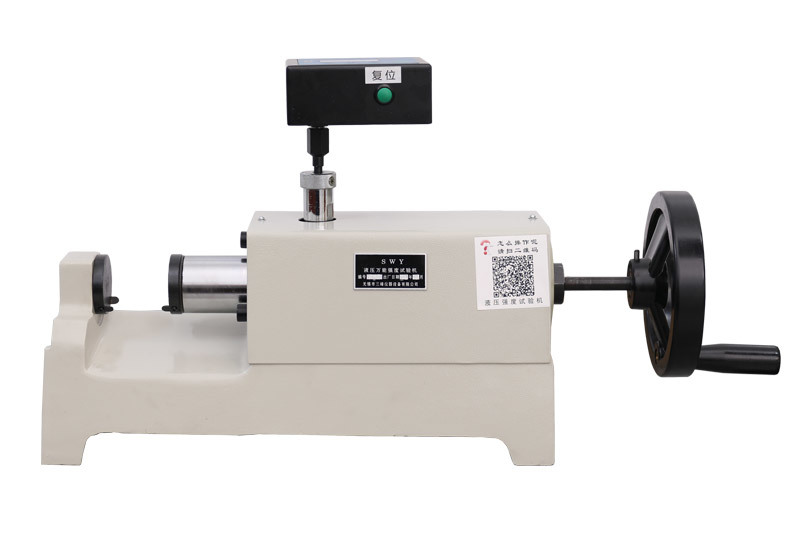

Horizontal Digital Hydraulic Sand Strength Machine QR-SWY
The QR-SWY Horizontal Digital Hydraulic Sand Strength Machine is designed for precise measurement of compressive, shear, bending, and tensile strength of type (core) sand under both dry and wet conditions at room temperature.
Key Features
- Manual hydraulic loading system for controlled testing
- Advanced sensor data collection with digital display
- Maximum destructive force value retention
- Comprehensive strength measurement capabilities
Technical Specifications
- Maximum thrust: 2800N
- Piston diameter: Φ22.6mm
- Measurement accuracy: ±1.5%
- Working voltage: 220VAC
Measurement Capabilities
| Measurement Method | Compressive Strength | Tensile Strength | Shear Strength | Bending Strength |
|---|---|---|---|---|
| Standard Range | 0-1.5 MPa | 0-6 MPa | 0-1.2 MPa | 0-60 MPa |
| Non-Standard Range | 0-5.1 MPa | 0-14.4 MPa | 0-2.4 MPa | 0-108 MPa |
