Maximum Destructive Force Value Retention and Integrated Data Storage of Moulding Sand strength Tester QR-XQY-II-1

  • Maximum Destructive Force Value Retention and Integrated Data Storage of Moulding Sand strength Tester QR-XQY-II-1
Place of Origin CHINA
Brand Name MORITA
Model Number QR-XQY-II-1
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Digital LCD Accuracy ±1%
Test Speed 3-10mm/min Measurement Range 0-3000N
Test Method Compression Test Power Supply AC 220V/50Hz
Highlight

moulding sand strength tester

,

moulding sand tester

,

220v sand tester
You can tick the products you need and communicate with us in the message board.
Measurement methods compressive strength tensile strength shear strength bending strength
Measurement range, standard 0-1.5 MPa 0-6 MPa 0-1.2 MPa 0-60 MPa
Measurement range, non-standard 0-5.1 MPa 0-14.4MPa 0-2.4 MPa 0-108 MPa
Leave a Message
Measurement methods compressive strength tensile strength shear strength bending strength
Product Description

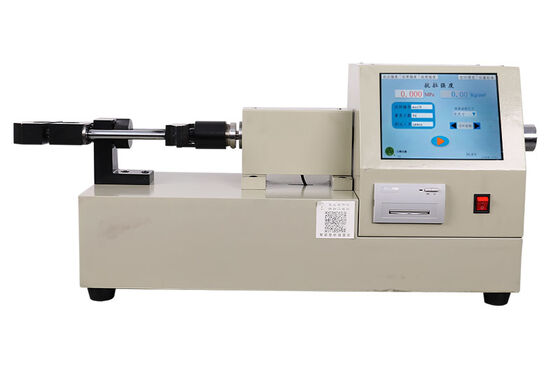

Horizontal Intelligent Sand Strength Machine QR-XQY-II-1

The QR-XQY-II-1 is a precision instrument designed for comprehensive strength testing of molding and core sands under both dry and wet conditions at room temperature.

Key Features
  • Measures compressive, shear, bending, and tensile strength of sand specimens
  • Automated mechanical loading system with sensor data collection
  • Digital display for immediate test result visualization
  • Maximum destructive force value retention capability
  • Integrated data storage, output, and printing functions
  • Computer interface with included software for data processing
  • 485-232 conversion interface for system integration
  • Generates .txt format data files for easy analysis
Technical Specifications
Maximum Thrust: 3000N (maximum 10000N)
Measurement Range:
Compressive strength: 0-1.5Mpa (maximum 5Mpa)
Tensile strength: 0-6MPa
Shear strength: 0-1.2MPa
Bending strength: 0-60MPa
Measurement Accuracy: ± 1.5%
Applications

Ideal for foundry quality control, sand testing laboratories, and research facilities requiring precise measurement of sand mixture properties for casting processes.
