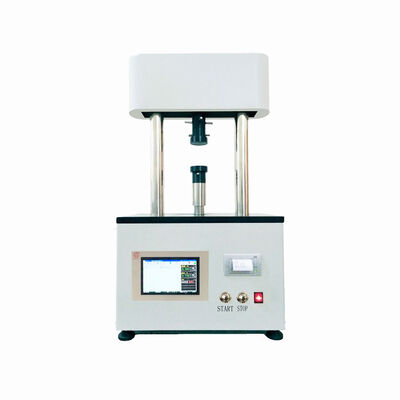

Intelligent Touch Screen Moulding Sand strength Tester with Vertical Design for Precise Measurements QR-XQY-3

  • Intelligent Touch Screen Moulding Sand strength Tester with Vertical Design for Precise Measurements QR-XQY-3
Place of Origin CHINA
Brand Name MORITA
Model Number QR-XQY-3
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Testing Accuracy ±1% Compression Plate Speed 0.5-5mm/min
Power Supply 220V/50Hz Application Determine The Compressive Strength Of Moulding Sand
Display Digital LCD Display Maximum Load 20000N
Load Accuracy ±0.5% Control Mode Automatic
Highlight

moulding sand strength tester

,

intelligent sand tester

,

intelligent sand strength tester
You can tick the products you need and communicate with us in the message board.
name Specification and model unit qty Brand (note)
S-type tension and compression sensor TSC-F2T piece 1 Toledo
stepping motor 110BYG350C piece 1 Jinyuantai
Reducer KSWL-F-2T piece 1 Hangzhou Kuangsheng Machinery
switch power supply D-50F5 piece 1 Mingwei MW
stepping motor driver 3M2254 piece 1 Jinyuantai
Electronic integrated chip MAX，STC set 1 Import
Micro thermal printer WH-E311R90 piece 1 Weihuang
Thermal printing paper R55 roll 2 Consumables
Leave a Message
name Specification and model unit qty Brand (note)
Product Description
Intelligent Sand Strength Tester Touch Screen Vertical QR-XQY-3
The Intelligent Sand Strength Tester (Vertical QR-XQY-3) with Touch Screen is designed for precise measurement of compressive, shear, bending, and tensile strength of type (core) sand at room temperature or in hot state. This advanced instrument also evaluates material strength for ceramics, cement, and similar substances.
Key Features
  • CNC Mechanical Loading: Vertical structure ensures stable high-voltage strength testing with special stepper motor and worm gear reduction mechanism for uniform sample loading.
  • High Precision: Utilizes S-type force sensors and 32-bit A/D data acquisition for accurate peak data capture during sample failure.
  • Data Protection: Dynamic real-time data display with complete data storage capability, even during power outages.
  • User-Friendly Interface: Chinese operating system with color LCD touch screen, clear prompts, and simple operation.
  • Security: Password protection for system functions and parameter adjustments.
Technical Specifications
Parameter Value
Maximum Test Force 20000N
Compressive Strength Range 0-10Mpa (Φ50×50) / 0-28Mpa (Φ30×50)
Tensile Strength Range 0-40Mpa (22.36×22.36) / 0-80Mpa (22.36×11.18)
Shear Strength Range 0-8Mpa (Φ50×50) / 0-13Mpa (Φ30×50)
Bending Strength Range 0-400Mpa (22.36×22.36×150) / 0-640Mpa (22.36×11.18×60)
Indication Accuracy ±1.5% FS
Power Requirements AC 220V ±10%, 50Hz
Operating Environment Temperature-controlled, relative humidity ≤90%
Main Components
Component Model Unit Quantity Brand
S-Type Tension/Compression Sensor TSC-F2T piece 1 Toledo
Stepping Motor 110BYG350C piece 1 Jinyuantai
Reducer KSWL-F-2T piece 1 Hangzhou Kuangsheng Machinery
Switch Power Supply D-50F5 piece 1 Mingwei MW
Stepping Motor Driver 3M2254 piece 1 Jinyuantai
Electronic Integrated Chip MAX,STC set 1 Import
Micro Thermal Printer WH-E311R90 piece 1 Weihuang
Thermal Printing Paper R55 roll 2 Consumables
