Intelligent Moulding Sand Strength Tester Manual Operation Perfect Solution For Accurately Measuring Sand Strength And Ensuring Casting Production QR-XQY-2

  • Intelligent Moulding Sand Strength Tester Manual Operation Perfect Solution For Accurately Measuring Sand Strength And Ensuring Casting Production QR-XQY-2
  • Intelligent Moulding Sand Strength Tester Manual Operation Perfect Solution For Accurately Measuring Sand Strength And Ensuring Casting Production QR-XQY-2
Place of Origin CHINA
Brand Name MORITA
Model Number QR-XQY-2
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range 0-3000 KN Operating Temperature 10-40°C
Warranty 1 Year Type Testing Equipment
Display Digital Humidity ≤90%
Application Determine The Strength Of Moulding Sand Accuracy ±1%
Power Supply 220V, 50Hz
Highlight

moulding sand strength tester

,

intelligent sand tester

,

intelligent sand strength tester
You can tick the products you need and communicate with us in the message board.
Max testing force 3000N
compression strengh 0-1.5MPa（expandable to 5MPa)
tensile strengh 0-6MPa（expandable to 12MPa)
shearing strengh 0-1.2MPa（expandable to 2.4MPa)
bending strengh 0-60MPa（expandable to 120MPa)
display accuracy ±1.5%FS
rated power 100W
power source AC220V/50Hz
Usage environment greenhouse, relative humidity ≤ 90%
Leave a Message
Max testing force 3000N
Product Description

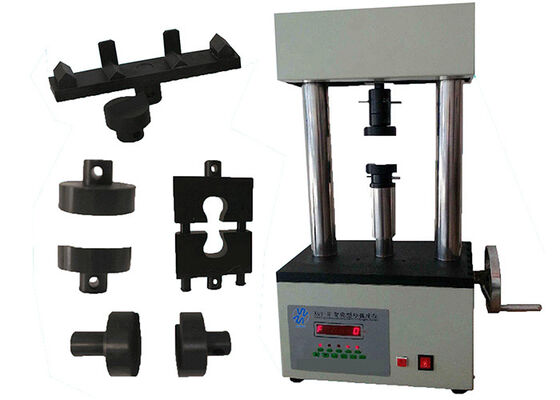

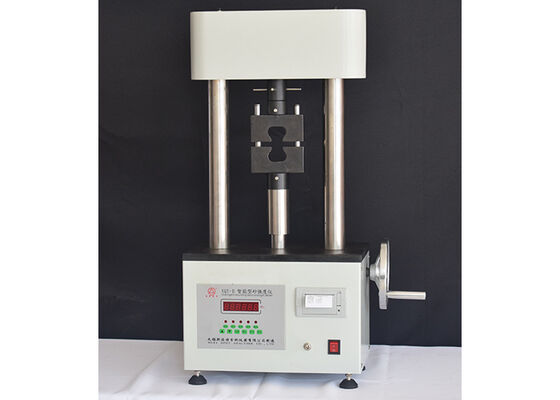

Intelligent Moulding Sand Strength Tester Manual Operation QR-XQY-2

The Intelligent Moulding Sand Strength Tester QR-XQY-2 is designed for measuring compressive, shear, bending, and tensile strength of type (core) sand at room temperature or hot state. It can also determine the strength of materials like ceramics and cement.

Inadequate wet compressive strength of sand samples directly impacts sand mold strength, potentially causing defects like sand flushing, falling off, and sand expansion that affect casting dimensional accuracy. Conversely, excessive green compressive strength indicates poor collapsibility, affecting sand mold compactness and increasing casting crack tendencies.

Key Specifications
Max testing force 3000N
Compression strength 0-1.5MPa (expandable to 5MPa)
Tensile strength 0-6MPa (expandable to 12MPa)
Shearing strength 0-1.2MPa (expandable to 2.4MPa)
Bending strength 0-60MPa (expandable to 120MPa)
Display accuracy ±1.5%FS
Rated power 100W
Power source AC220V/50Hz
Usage environment Greenhouse, relative humidity ≤ 90%
Instrument Features
Manual Loading: Vertical loading system eliminates testing errors from static friction and self-weight, with special punch tube for sample preparation to prevent damage.
Cross Head Fixture Mechanism: Facilitates sample placement with crosshead displacement adjuster, improving testing accuracy and operational convenience.
High Precision: CNC mechanical loading avoids hydraulic system errors, using high-precision S-shaped force sensors and 4/2 bit A/D data acquisition for accurate peak data capture.
Data Storage & Protection: Complete data storage in computer system with power failure protection for data preservation.
Storage & Printing (Optional): Strong printing capability for data output, including average value calculation for multiple data sets.
Applications

This tester is suitable for scientific research, teaching, and production environments, providing comprehensive strength testing for various materials including molding sand, ceramics, and cement.
