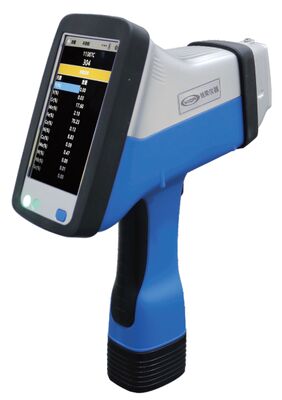

Portable Spectrometer High Energy Focused Pulsed Laser Beams For Rapid Industrial Analysis

  • Portable Spectrometer High Energy Focused Pulsed Laser Beams For Rapid Industrial Analysis
  • Portable Spectrometer High Energy Focused Pulsed Laser Beams For Rapid Industrial Analysis
Place of Origin CHINA
Brand Name MORITA
Model Number QR-L1
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 1.25 Kg Power Requirements 14.8V，3250mAh， 48 Watt Hours Of Electricity
Software Special Software Dimensions 227 X 86 X 234 Nm
Highlight

Portable spectrometer machine

,

High Energy spectrometer machine

,

spectrophotometer machine
You can tick the products you need and communicate with us in the message board.
core technology Based on LIBS laser technology, there is no fluorescence radiation. Low maintenance cost.
detection range Al,B,Be,Bi,Co, Cr,Cu,Fe. Li,Mg,Mn,Mo,Nb.Ni.Pb.Si.Sn.Ti.V.Zn.Zr. etc
Sample type Cylinder, thin plate, wire with a diameter of 1mm or more, foil (≥ 0.02mm), large fragments (no powder)
detection time 1-5s
Activate the system 3B class 1064mm passive solid-state laser
Spectral line range <0.2nm resolution, 250-415nm spectral range
Cold removal system Constant temperature cooling system ensures the accuracy of the instrument and extends its service life
power supply Rechargeable lithium batteries, each battery can work continuously for more than 8 hours and can also use AC 220V, 50/60HZ
monitor 4.0-inch resistive touch screen, 320 * 480 pixels
Measurement mode Qualitative identification, quantitative analysis, displaying measured spectral lines
security setting Password protection, physical laser security interlock device
data transmission USB、 Memory card, wireless Bluetooth
data manipulation language Multi-language
Storage 8GB flash memory card
operation temperature Standard 0~40 ℃ (32~100 * F)
Waterproof performance IP54 waterproof and dustproof rating
weight 1.25kg (including battery)
operating system Special software
accuracy of analysis ≤0.3%
relative humidity ≤85%
battery 14.8V，3250mAh， 48 watt hours of electricity
size L 227*W 86*H 234mm
Leave a Message
core technology Based on LIBS laser technology, there is no fluorescence radiation. Low maintenance cost.
Product Description

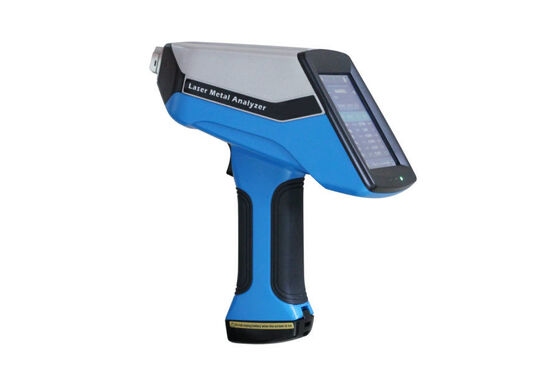

Laser Induced Portable Spectrometer QR-L1
The QR-L1 uses high-energy focused pulsed laser beams to excite the sample surface, analyzing the corresponding elemental composition and content through atomic spectra algorithms. This advanced technology enables rapid qualitative and quantitative laser industrial analysis.
The QR-L1 is the world's fastest metal analyzer for waste sorting. Simply pull the trigger for instant results in one second, with durability designed for harsh waste disposal conditions. Capable of identifying and analyzing various alloys including aluminum, magnesium, titanium, cobalt, chromium, nickel, and copper alloys, as well as stainless steel, tool steel, and low-alloy steel.
Key Capabilities
  • Rapid identification of aluminum alloys (ADC12, 6061, 6063) and stainless steels (304, 321, 316)
  • Detection of Si and Cu content in aluminum and zinc alloy raw materials for quality verification
  • Instant analysis with results in 1-5 seconds
  • Portable design with rugged construction for industrial environments
Industry Applications
Recycling and Sorting Industry: QR-L1 enables screening of recycled materials before purchase, sorting, and melting. Provides quality assurance by reconfirming alloy grades before shipment, improving quality management systems while reducing errors and costs.
Metal Trading Markets: Enables rapid on-site identification of stainless steel, aluminum alloy, and copper alloy grades. Allows immediate testing of main components to prevent losses from substandard materials.
Technical Specifications
Core Technology LIBS laser technology with no fluorescence radiation. Low maintenance cost.
Detection Range Al, B, Be, Bi, Co, Cr, Cu, Fe, Li, Mg, Mn, Mo, Nb, Ni, Pb, Si, Sn, Ti, V, Zn, Zr, etc.
Sample Type Cylinder, thin plate, wire (≥1mm diameter), foil (≥0.02mm), large fragments (no powder)
Detection Time 1-5 seconds
Laser System 3B class 1064nm passive solid-state laser
Spectral Range <0.2nm resolution, 250-415nm spectral range
Cooling System Constant temperature cooling ensures accuracy and extends service life
Power Supply Rechargeable lithium batteries (8+ hours continuous use) or AC 220V, 50/60Hz
Display 4.0-inch resistive touch screen, 320×480 pixels
Measurement Modes Qualitative identification, quantitative analysis, spectral line display
Security Password protection, physical laser security interlock
Data Transfer USB, Memory card, wireless Bluetooth
Languages Multi-language support
Storage 8GB flash memory card
Operating Temp 0~40℃ (32~100°F)
Protection Rating IP54 waterproof and dustproof
Weight 1.25kg (including battery)
Analysis Accuracy ≤0.3%
Humidity ≤85% relative humidity
Battery 14.8V, 3250mAh, 48 watt hours
Dimensions 227×86×234mm (L×W×H)
