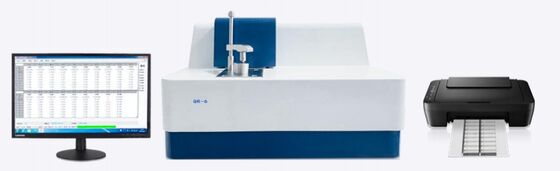

QR-6 CCD Optical Emission Spectrometer Accurate Elemental Analysis For Multiple Industries And Applications

  • QR-6 CCD Optical Emission Spectrometer Accurate Elemental Analysis For Multiple Industries And Applications
  • QR-6 CCD Optical Emission Spectrometer Accurate Elemental Analysis For Multiple Industries And Applications
Place of Origin CHINA
Brand Name MORITA
Model Number QR-6
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimensions 72 X 56 X 37 Cm Data Formats Spectral Data, Peak Tables, And Reports
Detecting Time 25S Wavelength Range 160-800nm
Weight 65 Kg Software Omnic Specta Software
Highlight

ccd optical emission spectrometer

,

ccd optical emission spectrophotometer
You can tick the products you need and communicate with us in the message board.
Detecting matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys
Detecting time Normally 25s
Optical Structure Paschen-Runge mount
Wavelength range 160nm-800nm
focal length 300mm
Detector International level detection module, high-performance linear array CCD
Electrode Tungsten Spray discharge electrode
analytical gap 3.5mm
working temperature 10℃-35℃
storge temperature 0℃-45℃
working moisture 20%-80%
Light source type New adjustable digital light source, high-performance pre ignition technology (HEPS)
discharge frequency 100-1000Hz
Discharge Current Max. 380A
Excitation table aperture 13mm
Light cell structure vacuum system
Argon Purity 99.999%, Argon pressure >0.5Mpa
Argon consumption 3.5L/min in sparking mode, 0.4L/min in maintaining mode
Dimension 720mm(L)*560mm(W)*370mm(H)
Weight About 65kg
Power AC220V/50Hz (Customized)
Leave a Message
Detecting matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their Alloys
Product Description
CCD Optical Emission Spectrometer (OES) QR-6
The QR-6 full spectrum direct reading spectrometer features international standard design and manufacturing processes, utilizing fully digital technology to replace traditional bulky instruments. This advanced system incorporates digital excitation light sources, high-performance detectors, and a high-speed data readout system for exceptional performance, low detection limits, and outstanding long-term stability and repeatability.
Ideal for: Quality monitoring, material grade identification, and research in metal manufacturing, processing, and smelting industries.
Optical System
  • Paschen-Runge optical structure with 160-800nm wavelength range
  • Multiple high-performance detectors with 10pm pixel resolution
  • Integrated optical chamber with temperature control (34°C ±0.5°C)
  • Vacuum chamber design with direct beam optical technology
  • MgF2 lens material ensures optimal energy for C, S, and P ultraviolet wavelengths
Sample Excitation Table
  • Integrated gas path and jet electrode technology
  • Optimized argon gas path for effective cooling and dust filtration
  • 13mm excitation aperture suitable for various sample sizes and shapes
  • Open sample excitation stage accommodates wires and irregular samples
  • DSLR lens device simplifies maintenance and cleaning
Excitation Light Source
  • Adjustable digital light source with 100-1000Hz frequency
  • High Energy Pre Ignition Technology (HEPS)
  • Maximum discharge current of 380A
  • Optimized spark, arc, and combined excitation waveforms
Technical Specifications
Detecting Matrix Fe, Al, Cu, Zn, Ti, Ni, Pb, Co, Mg, and their alloys
Detecting Time 25 seconds (standard)
Focal Length 300mm
Detector High-performance linear array CCD
Working Temperature 10℃-35℃
Dimensions 720mm(L) × 560mm(W) × 370mm(H)
Weight Approx. 65kg
Power AC220V/50Hz (Customizable)
Advanced Software Features
  • Multi-language Windows-based graphical analysis software
  • Comprehensive database management and data processing
  • Intelligent calibration algorithms for stability and reliability
  • Full spectrum detection with interference deduction
  • Customizable data output formats and reporting
  • Excel integration for data input/output

QR-6 CCD Optical Emission Spectrometer Accurate Elemental Analysis For Multiple Industries And Applications 0
