Intelligent High Frequency Carbon And Sulfur Analyzer QR-9000S For Accurate Analysis

  • Intelligent High Frequency Carbon And Sulfur Analyzer QR-9000S For Accurate Analysis
  • Intelligent High Frequency Carbon And Sulfur Analyzer QR-9000S For Accurate Analysis
Place of Origin CHINA
Brand Name MORITA
Model Number QR-9000S
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certifications ISO, CE Power Supply AC 220V/50Hz
Elemental Analysis Carbon And Sulfur Detection Method Infrared Absorption Method
Measurement Range 0.0001% - 100% Software Included
Analysis Time Less Than 5 Minutes Sample Weight 0.2g - 1g
Communication Interface USB
Highlight

Intelligent carbon and sulfur analyzer

,

carbon and sulfur analyzer High Frequency

,

Accurate Analysis infrared sulfur analyzer
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

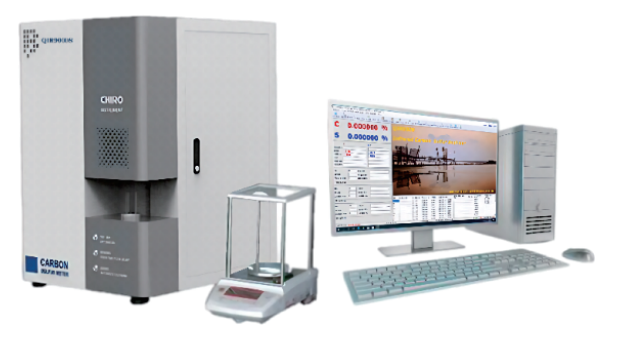

Intelligent High Frequency Infrared Carbon and Sulfur Analyzer QR-9000S
Technical Specifications
Measurement Elements Carbon (C) and Sulfur (S)
Measurement Range Cω(C): 0.000001%–99.999999% (≤10% or ≥10% expandable to 99.9999%)
Sω(S): 0.000001%–99.999999% (≤10% or ≥10% expandable to 99.9999%)
Analytical Precision C: ≤RSD 0.5%
S: RSD ≤1.0%
Sensitivity 0.1 PPM
Analysis Time 25-60 seconds (typically 35s)
Analytic Error Complies with JJG395-2016 standard (C: ISO9556, S: ISO4935)
Oscillation Frequency 20 MHz
Burning Power 2.5 KVA–7.5 KVA (adjustable)
Working Environment Temperature: 10℃–30℃
Relative Humidity: 75%
Voltage AC220V±5%, Frequency: 50H±2%
Intelligent Features
  • Four physical detection pools with automatic switching capability
  • VB.net software with Chinese/English language switching
  • Full-process signal tracking with automatic adjustment
  • Automatic storage of carbon and sulfur release curves for real-time comparison
  • Linear data correction for high, medium, and low values
Instrument Characteristics
Infrared Detection System
  • Modular design with highly integrated, stable electronic circuits
  • Multi-level isolation to eliminate high-frequency interference
  • USB data exchange technology for high-speed communication
  • Linear integrated module power supply for stable output
  • Platinum infrared light source with high efficiency and stable spectral characteristics
  • Gold-plated analysis cell with high-precision pyroelectric infrared detector
  • Thermally stable motor with long service life
High Frequency Combustion System
  • Self-excited directional coupler for consistent power output
  • 7.5kvA high-frequency power tubes (actual usage >2.5kvA)
  • Ceramic high-power electronic tubes and vacuum capacitors (100A)
  • Automatic detection of solenoid valves, lifting cylinders, and high-frequency furnaces
  • Automatic obsolescence/overcurrent alarm protection
  • High precision flow meters for stable analysis results
  • Super microporous "non-clogging" metal filter for complete dust/gas separation
  • Pneumatic furnace head automatic cleaning device
Software Features
  • Windows operating system
  • Custom infrared analysis software with complete functions:
    • Channel selection
    • Data statistics
    • Breakpoint correction
    • Results modification
    • System diagnostics
  • Dynamic data integration (32 samples/second) for enhanced sensitivity and accuracy
  • Full-process signal tracking with automatic adjustment
  • 20 analysis channels and 100 release curves storage
  • Communication with data center or production site reporting
  • Integration with computer, printer, and electronic scale
