Precise Analysis With High-Frequency Infrared Carbon Sulfur Analyzer QR-9000 For Lithium Batteries And New Energy Materials

  • Precise Analysis With High-Frequency Infrared Carbon Sulfur Analyzer QR-9000 For Lithium Batteries And New Energy Materials
  • Precise Analysis With High-Frequency Infrared Carbon Sulfur Analyzer QR-9000 For Lithium Batteries And New Energy Materials
Place of Origin CHINA
Brand Name MORITA
Model Number QR-9000
Document 9000.xls
Minimum Order Quantity 1
Delivery Time 15 days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Software Included Detection Element Carbon And Sulfur
Detection Method High-frequency Induction Furnace Power Supply AC 220V/50Hz
Analysis Time 3-5 Minutes Measurement Accuracy ±0.001%
Measurement Range 0.001%-100% Interface USB
Sample Weight 0.1-1g
Highlight

infrared carbon sulfur analyzer

,

infrared carbon and sulfur analyzer

,

usb carbon sulfur analyzer
You can tick the products you need and communicate with us in the message board.
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.1PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard: JJG395-2016 (C: ISO9556, S: ISO4935)
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range Cω(C): 0.000001%～99.999999% (≤10% or ≥10% expandable to 99.9999%)Sω(S): 0.000001%～99.999999%(≤10% or ≥10% expandable to 99.9999%)
Product Description

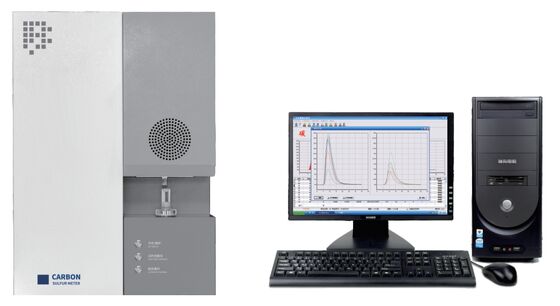

High-frequency Infrared Carbon Sulfur Analyzer QR-9000
The QR-9000 high-frequency infrared carbon sulfur analyzer is designed for precise analysis in lithium batteries, negative electrode materials, ores, and new energy materials.
Instrument Characteristics
Infrared Detection System
  • Circuit design: Modular architecture with highly integrated, stable electronic circuits and multi-level isolation for high-frequency interference protection
  • Communication: USB data exchange technology for enhanced speed
  • Power supply: Linear integrated module power supply ensures stable output
  • Light source: Platinum infrared light source delivers high efficiency and stable spectral characteristics
  • Analysis cell: Gold-plated carbon sulfur analysis cell with high-precision pyroelectric infrared detector
  • Motor: Excellent thermal stability for extended continuous operation
High Frequency Combustion System
  • High frequency circuit: Self-excited directional coupler ensures consistent power output for complete sample combustion
  • Circuit design: 7.5kvA high-frequency power tubes (actual usage >2.5kvA) reduce system load and extend service life
  • Components: Ceramic high-power electronic tubes and 100A ceramic vacuum capacitors
  • Operation circuit: Automatic detection of solenoid valves, lifting cylinders, and high-frequency furnaces
  • Safety features: Automatic obsolescence/overcurrent alarm protects furnace operation
  • Precision flow meters: Ensure stable and reliable analysis results
  • Filtration system: Super microporous "non-clogging" metal filter for complete dust/gas separation
  • Cleaning system: Pneumatic furnace head automatic cleaning reduces dust impact
Software Features
  • Windows operating system compatibility
  • Proprietary infrared analysis software with comprehensive functions:
    • Channel selection and data statistics
    • Breakpoint correction and results modification
    • System diagnostics and detection
  • Dynamic data integration with 32 samples/second for enhanced sensitivity and accuracy
  • Full signal tracking with automatic adjustment
  • 20 analysis channels and 100 release curves capacity
  • Data center communication and production site reporting capabilities
  • Integration with computers, printers, and electronic scales
