Methylene Blue Absorption Tester By Controlled Micro Computer For Accurate Results
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-SEL |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Accuracy | ±1% | Display | LCD |
|---|---|---|---|
| Operating Temperature | 0-50°C | Additional Features | Automatic Calibration, Data Storage, Data Transfer To Computer |
| Storage Temperature | -20-60°C | Warranty | 1 Year |
| Ultrasonic Cleaner | 50W | ||
| Highlight | LCD Display Methylene Blue Absorption Tester,50W Methylene Blue Absorption Tester,methylene blue absorption tester |
||
You can tick the products you need and communicate with us in the message board.
| Glass burette | 25ml+25ml, ±1% | |
|---|---|---|
| Blender | speed: 1300r/min | |
| Blender | power: 6W | |
| Blender | Power source: AC220V/50Hz | |
| timer range | 1-99min. | |
| Ultrasonic cleaner | frequency: 40±2KHz | |
| Ultrasonic cleaner | power: 50W | |
| Ultrasonic cleaner | speed: 1300r/min, power: 6W, Power source: AC220V/50Hz | |
| Ultrasonic cleaner | size of cleaning tank: 150*140*90mm |
Product Description

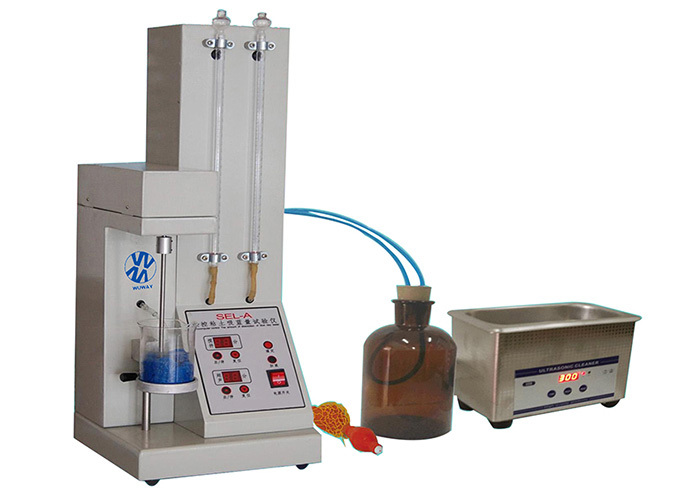

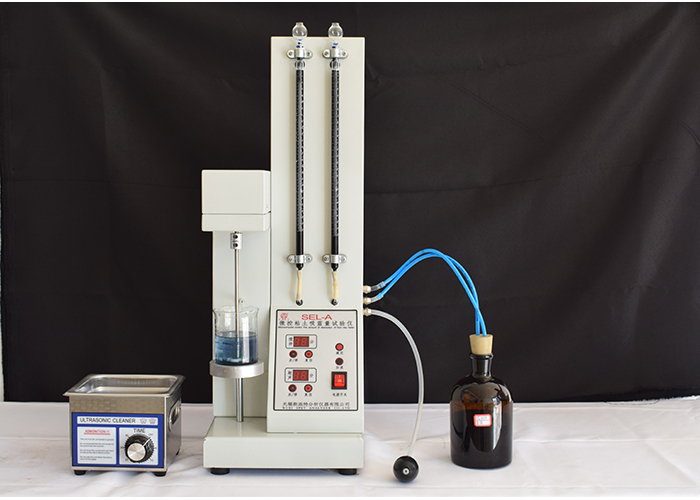

Methylene Blue Absorption Tester By Controlled Micro-computer QR-SEL
This precision instrument determines methylene blue absorption levels and measures effective bentonite content in bentonite samples. Utilizing microcomputer-controlled ultrasonic dispersion and mechanical stirring, it ensures accurate, automated testing with customizable timing parameters.
Key Specifications
Glass Burette: 25ml+25ml, ±1% accuracy
Blender Speed: 1300r/min
Power: 6W
Power Source: AC220V/50Hz
Timer Range: 1-99min
Ultrasonic Cleaner: 40±2KHz frequency, 50W power
Cleaning Tank Size: 150×140×95mm
Instrument Dimensions: 177×167×200mm
Instrument Features
- Microcomputer-controlled ultrasonic dispersion and test solution mixing
- Automated sample processing and mixing time control
- Rapid sample dispersion at normal temperatures
- Prevents casting surface defects through quality detection
Applications
Widely used in foundries, machinery manufacturing, casting operations, quality inspection laboratories, scientific research institutions, and university laboratories.
Testing Principle
Bentonite exhibits strong methylene blue adsorption capacity, which varies by type and origin. Sample dispersion is critical for accurate measurement. Ultrasonic dispersion creates cavitation effects that thoroughly separate particles, while mechanical stirring ensures complete contact with methylene blue during titration.
Instrument Structure
The analyzer comprises three main components:
- Sample Dispersion Device: Ultrasonic cleaner with timer for thorough particle separation
- Titration Device: Dual automatic burettes with anti-corrosion solenoid valves for precise measurement
- Blender: Microcomputer-controlled AC motor with turbine blade for complete solution mixing
