Intelligent Gas Evolution Tester QR-CETIII For High Precision Gas Generation Rate Measurement
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-CETIII |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC 220V 50Hz | Usage | Gas Evolution Test |
|---|---|---|---|
| Temerature Accuracy | ±1℃ | Operating System | Windows 10 |
| Test Method | Automatic | Rated Power | 4KW |
| Power | Electronic | Accuracy | ±1% |
| Test Range | 0-200ml | Moisture | 85% |
| Highlight | Intelligent Gas Evolution Tester,High Precision Gas Evolution Tester,gas evolution tester High Precision |
||
You can tick the products you need and communicate with us in the message board.
| measuring range | 0-200ml, accuracy: ±2% | |
|---|---|---|
| temperature of pyrolysis furnace | 600-1200℃, accuracy:±1℃ | |
| temperature of measurement system | 0-120℃, accuracy:±1℃ | |
| temperature of working condition | -5-45℃ | |
| humidity of working condition | ≦85% | |
| timing range | 120min, can be set up arbitrarily | |
| rated power | 4KW | |
| power source | AC220V/50HZ |
Product Description

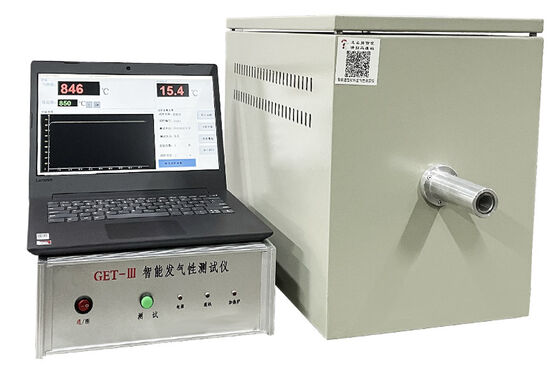

Intelligent Gas Evolution Tester QR-CETIII
Product Overview
The Intelligent Gas Evolution Tester QR-CETIII is designed to measure gas generation and gas generation rate of various molding materials including (core) sand and coatings. It also determines the effective coal powder content in molding sand with high precision.
Technical Specifications
| Measuring Range | 0-100ml, accuracy: ±1% |
| Pyrolysis Furnace Temperature | 1100℃, accuracy: ±1℃ |
| Measurement System Temperature | 0-120℃, accuracy: ±1℃ |
| Working Condition Temperature | -5-45℃ |
| Working Condition Humidity | ≦85% |
| Timing Range | 120min (adjustable) |
| Rated Power | 2KW |
| Power Source | AC220V/50HZ |
| Maximum Working Current | 30A |
Key Features
- Incorporates advanced electronic technology, computer technology, and sensor technology
- Computer display shows real-time curves of gas generation and gas generation rate
- Displays maximum gas generation value for precise analysis
- Unlimited historical data storage with time and batch query capabilities
Applications
Widely used in foundry operations, machinery manufacturing, casting processes, quality inspection, scientific research, and university laboratories.
