High Precision Sand Air Permeability Tester For Casting Permeability Accurate Measurement
| Place of Origin | CHINA |
|---|---|
| Brand Name | MORITA |
| Model Number | QR-ZTY |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Method | Constant Pressure Method | Power Supply | AC 220V, 50Hz |
|---|---|---|---|
| Operating Humidity | ≤85% | Display | Digital Display |
| Accuracy | ±1% | Operating Temperature | 10-40℃ |
| Sample Size | Φ50mm, H50mm | Air Source Pressure | 981Pa±5Pa(100mmH2O） |
| Air Permeability | 0-2450, ±1%FS | ||
| Highlight | 220V Sand Air Permeability Tester,High Precision Sand Air Permeability Tester,220V permeability testing machine |
||
You can tick the products you need and communicate with us in the message board.
| sample size | ɸ50mm*50mm | |
|---|---|---|
| air source pressure | 981Pa±5Pa(100mmH2O） | |
| air hole size | large hole: 1.5mm, small hole: 0.5mm | |
| air permeability | 0-2450, ±1%FS | |
| power source | AC220V/50Hz, 3KW | |
| enviroment condition | greenhouse, relative humidity: ≦90%(no ondensation) |
Product Description

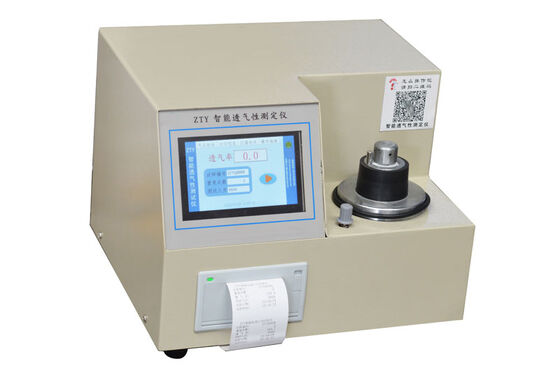

High Precision Sand Air Permeability Tester For Accurate Measurement Of Casting Permeability QR-ZTY
Product Overview
The Intelligent Permeability Tester measures the gas permeability of raw sand or moulding (core) sand, a critical factor affecting casting quality. Poor permeability control can lead to defects like porosity and choking in castings.
Key Specifications
| Sample Size | Φ50mm*50mm |
| Air Source Pressure | 981Pa±5Pa (100mmH2O) |
| Air Hole Size | Large hole: 1.5mm, Small hole: 0.5mm |
| Air Permeability Range | 0-2450, ±1%FS |
| Power Source | AC220V/50Hz, 3KW |
| Environment Condition | Greenhouse, relative humidity: ≤90% (no condensation) |
| Dimensions | 320*280*290mm |
Instrument Features

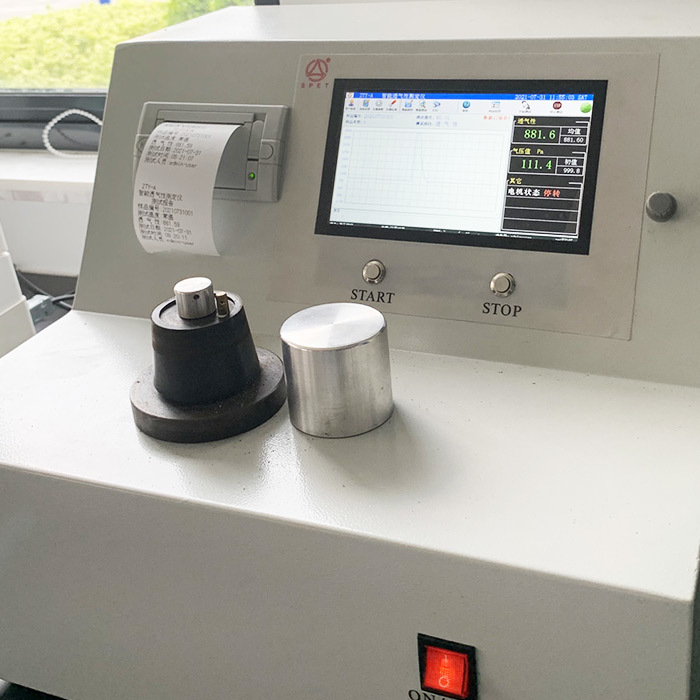

- Color LCD touch screen with Chinese operating system for clear interface and easy operation
- High precision 64-bit AD data collection for accurate, stable, and reliable analysis results
- Dynamic display of real-time data and curves during analysis process
- Automatic switching sample holder with intelligent computer determination of hole opening/closing
- High-precision SM sensors imported from the United States for stable data collection at various temperatures
- Password protection function with Chinese menu display and prompts
- Comprehensive data retention in database for query, display, and printing
- Strong system functionality with low failure rate and wide application range
Applications
Widely used in foundry, machinery, casting, qualitative inspection, scientific research, and university laboratories.
