Versatile Moulding Sand Strength Tester For Measuring Compression Shearing Bending And Tensile Strength QR-XQY-II
| Place of Origin | China |
|---|---|
| Brand Name | Morita |
| Model Number | QR-XQY-II |
| Document | 12.pdf |
| Minimum Order Quantity | 1 |
| Delivery Time | 15 days |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | 5-40°C | Measurement Range | 0-10000N |
|---|---|---|---|
| Type | Testing Equipment | Display | Digital |
| Warranty | 1 Year | Application | Moulding Sand Strength Testing |
| Accuracy | ±1N | Power Supply | AC 220V/50Hz |
| Humidity | ≤85% | ||
| Highlight | moulding sand strength tester,moulding sand tester,220v sand tester |
||
You can tick the products you need and communicate with us in the message board.
| Detailed List | ||||
|---|---|---|---|---|
| NO. | Name | Unit | Q'ty | |

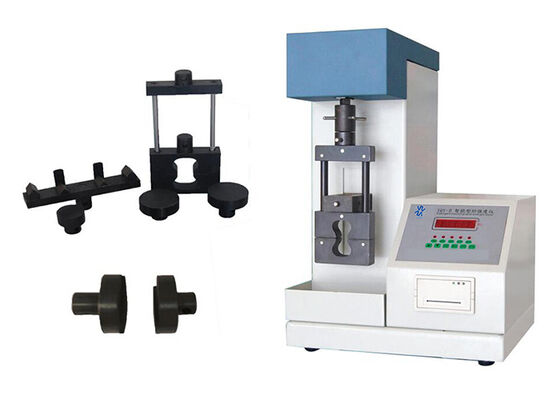

| 1 | Intelligent sand strength tester host | unit | 1 | |
| 2 | Compression fixture | pair | 1 | |
| 3 | Tensile (bending) fixture | pair | 1 | |
| 4 | Anti bending pressure head | piece | 1 | |
| 5 | Anti shear fixture | pair | 1 | |
| 6 | Waste box | piece | 1 | |
| 7 | Special power cord | piece | 1 | |
| 8 | steel pin | piece | 2 | |
| 9 | printing paper | roll | 2 |
Product Description

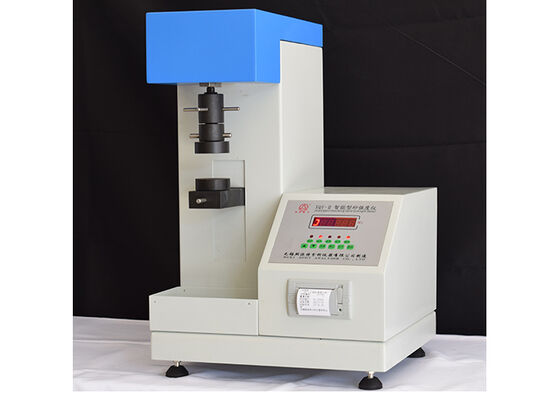

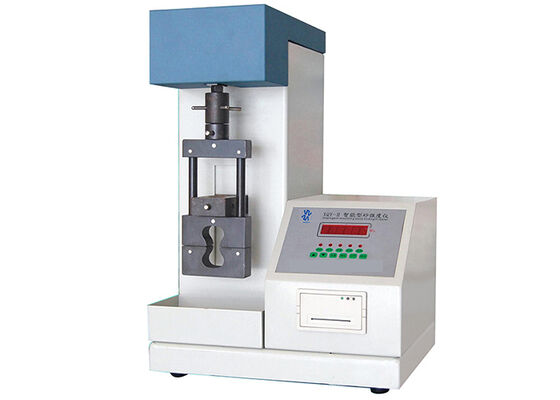

Intelligent Moulding Sand Strength Tester (QR-XQY-II)
This precision instrument measures compression, shearing, bending, and tensile strength of moulding sand, ceramics, cement, and similar materials.
Key Specifications
Max testing force: 10000N
Compression strength: 0-4.5MPa
Tensile strength: 0-18MPa
Shearing strength: 0-3.6MPa
Bending strength: 0-60MPa
Display accuracy: ±1.5%FS
Rated power: 500W
Power source: AC220V/50Hz
Advanced Instrument Features
- CNC Mechanical Loading: Features a special stepper motor, worm gear reduction mechanism, and linear sliding shaft balance mechanism for fully automatic, uniform loading. Microprocessor digital control ensures consistent sample cross-section loading and direct display of test results.
- High Precision: Eliminates measurement errors associated with hydraulic systems through microcomputer numerical control. Incorporates high-precision S-shaped force sensors and 4/2 bit A/D data acquisition for accurate peak data capture during sample failure.
- Data Storage & Protection: Complete data preservation in computer systems, accessible after shutdown or power outage for display and printing.
- Comprehensive Printing: Advanced output capabilities including data averaging and formatted printing of collected results.
Primary Applications
Widely utilized in foundry operations, mechanical engineering, casting processes, quality inspection laboratories, scientific research facilities, and university laboratories.
