High-frequency Infrared Carbon and Sulfur Analyzer（table model）QR-2002

  • High-frequency Infrared Carbon and Sulfur Analyzer（table model）QR-2002
  • High-frequency Infrared Carbon and Sulfur Analyzer（table model）QR-2002
Place of Origin China
Brand Name MORITA
Model Number QR-2002
Minimum Order Quantity 1 PC
Packaging Details wooden case
Delivery Time 35 days
Payment Terms T/T
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range 0.0001% - 100% Analysis Time Less Than 5 Minutes
Power Supply AC 220V, 50Hz Sample Weight 0.1 - 5g
Analysis Method Infrared Absorption Method Software Included
Repeatability ±0.0001% For Carbon, ±0.0001% For Sulfur Detection Limit 0.0001% For Carbon, 0.0001% For Sulfur
Accuracy ±0.0005% For Carbon, ±0.0005% For Sulfur
Highlight

infrared carbon and sulfur analyzer

,

infrared carbon sulfur analyzer

,

220v carbon sulfur analyzer
You can tick the products you need and communicate with us in the message board.
Measurement range C: 0.000001%～99.999999%S: 0.000001%～99.999999%
Analytical precision C:≤RSD0.5%. S:RSD≤1.0%
Sensitivity 0.01PPM
Analysis time 25-60s (normally 35s)
Analytic error meet standard:C: ISO9556, JJG395-97 S: ISO4935, JJG395-97
Oscillation frequency 20MHz
Burning power 2.5KVA—7.5KVA( adjustable)
Working environment Indoor temperature: 10℃～30℃Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Leave a Message
Measurement range C: 0.000001%～99.999999%S: 0.000001%～99.999999%
Product Description

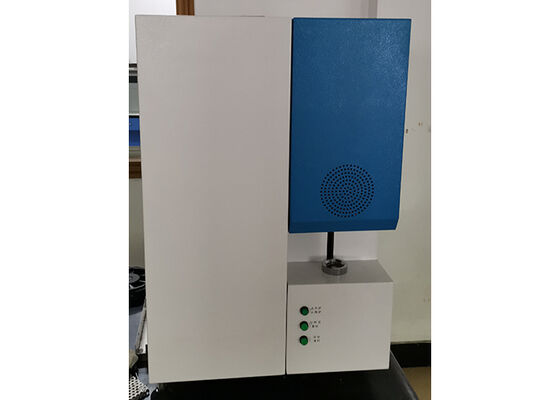

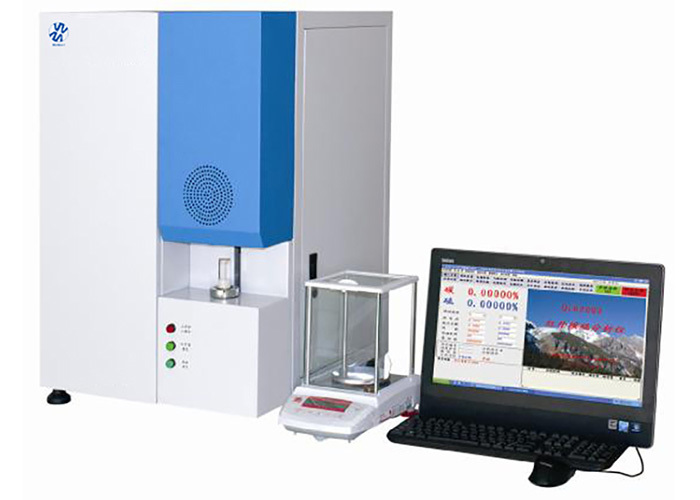

High-frequency Infrared Carbon and Sulfur Analyzer (Table Model QR-2002)

The QR-2002 High-frequency Infrared Carbon and Sulfur Analyzer is designed for precise measurement of carbon and sulfur mass fractions in various materials including steel, iron, new energy materials, ferroalloys, rare earth metals, nonferrous metals, and many other industrial materials.

Key Specifications
Measurement Element C: 0.000001%～99.999999%
S: 0.000001%～99.999999%
Measurement Range Cω(C)0.00001%~10.00% (expandable to 99.9999%)
Sω(S)0.00001%~5.000% (expandable to 99.9999%)
Analytical Precision C: ≤RSD0.5%
S: RSD≤1.0%
Sensitivity 0.1PPM
Analysis Time 25-60s (normally 35s)
Analytic Error Carbon meets ISO9556 standard
Sulfur meets ISO4935 standard
Oscillation Frequency 20MHz
Burning Power 2.5KVA--7.5KVA (adjustable)
Working Environment Indoor temperature: 10℃～30℃
Relative humidity: 75%
Voltage AC220V±5%, Frequency:50H±2%
Instrument Features
  • Simultaneous carbon and sulfur detection
  • Stable circuit design with minimal high-frequency interference
  • Modular design for quick component replacement
  • Advanced sampling chip for high speed and precision
  • Platinum infrared light source technology for stable spectrum
  • USB data exchange technology for improved communication
  • Gold-plated analysis pool and high-precision infrared detector
  • Infrared motor with excellent thermal stability
  • Self-stimulated directional couple for complete sample burning
  • 7.5kvA high-frequency power tube for reduced system load
  • Automatic high-frequency furnace condition detection
  • Overcurrent and timeout protection
  • High precision flowmeter for stable results
  • Complete dust and gas separation
  • Auto cleaning system eliminates routine maintenance
Software Features
  • Windows-based operating system
  • Proprietary infrared analysis software with complete functionality
  • Dynamic data integration (32 samples/second) for improved accuracy
  • Full signal tracking with automatic adjustment
  • 20 analysis channels and 100 release curves
  • Data center communication and production site reporting
  • Compatible with computers, printers, and electronic scales
Applications

The analyzer is widely used in new power energy, metallurgy, machinery, mining, commodity inspection, nuclear industry, coal, automotive, shipbuilding, aircraft, food, building materials, universities, geology, and petrochemical industries.
